6.13 Execution Time Measurement
6.13.3 Scan time measurement
6
FUNCTIONS
(5) Measuring Scan Time
To measure scan time, follow the following steps.
• Display the beginning of the ladder of which scan time will be measured, on GX
Developer, select the monitor mode.
• Choose [Online] [Monitor] [Scan time measurement] to open "Scan time
Measurement screen" dialog box.
• Specify the start step and end step, click the button.
[Example] When "52" for the start step and "105" for the end step are specified

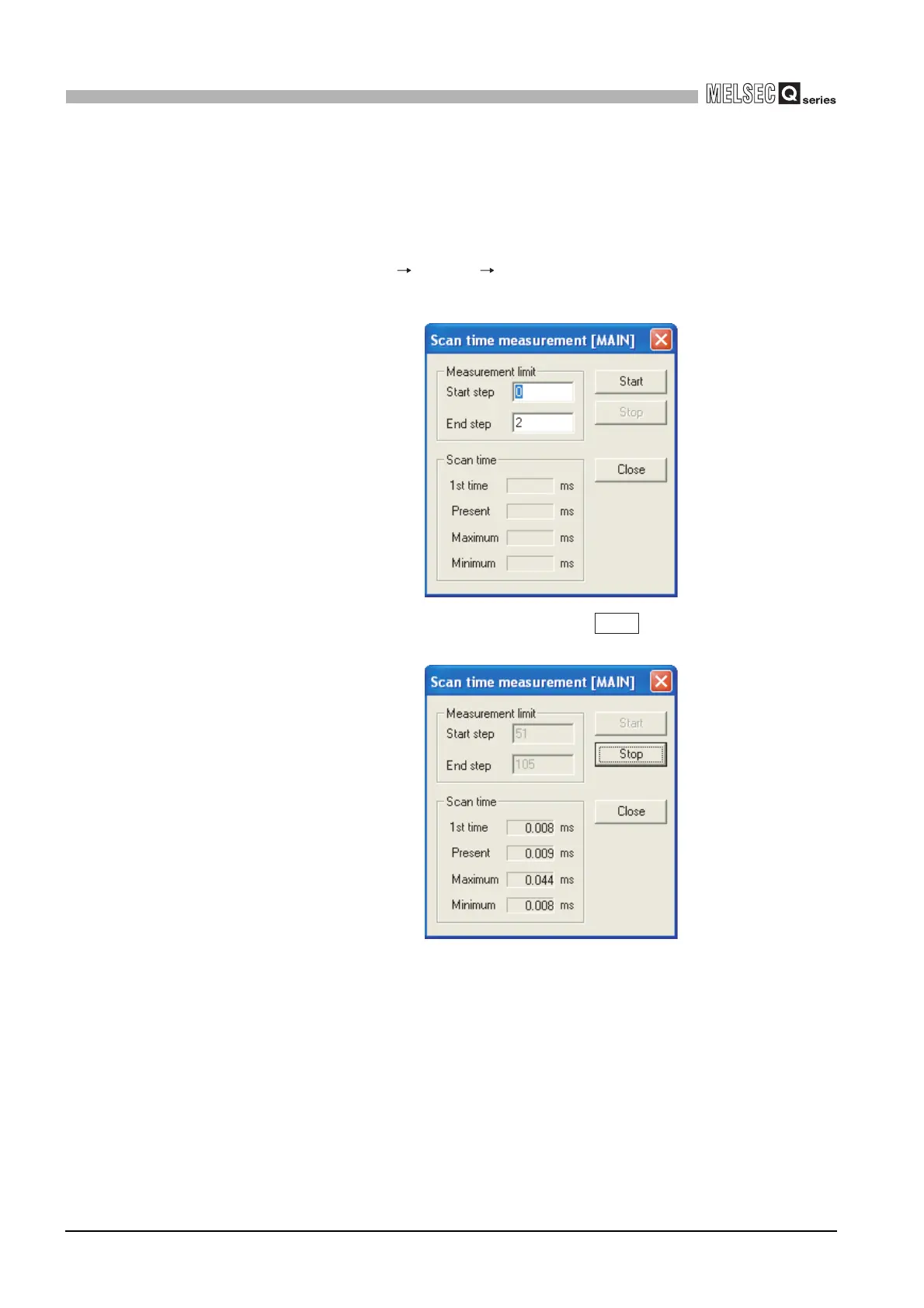

Figure 6.66 Scan time measurement screen
