14 DEDICATED INSTRUCTIONS
[Program examples]

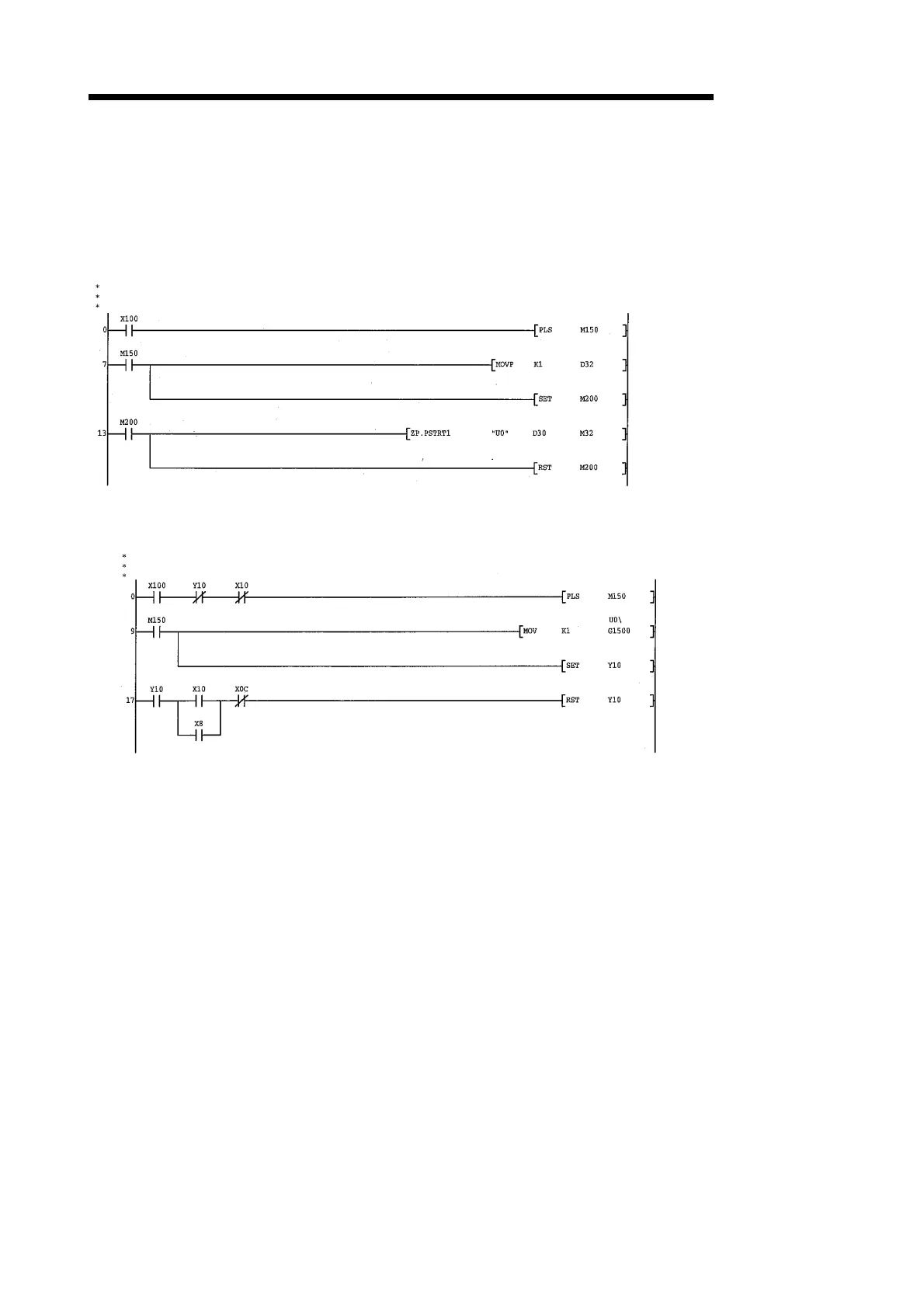

• The following program executes the positioning start of positioning data No. 1 when
X100 turns ON.
Use D30 to D32 as the control data devices of positioning data No. 1, and M32 and
M33 as the completion devices.
Positioning start program
<Positioning start command pulse>
<Positioning start No. 1 setting>
<Positioning start command hold>
<Positioning start execution>
<Positioning start command storage OFF
>
[Program example for use when dedicated instruction is not used]
Positioning start program (when dedicated instruction is not used)
<Positioning start command pulse>
<Positioning start No. 1 setting>
<Positioning start execution>
<Positioning start signal OFF>
