Mitsubishi QD75M2 User Manual

14 - 14
MELSEC-Q
14 DEDICATED INSTRUCTIONS

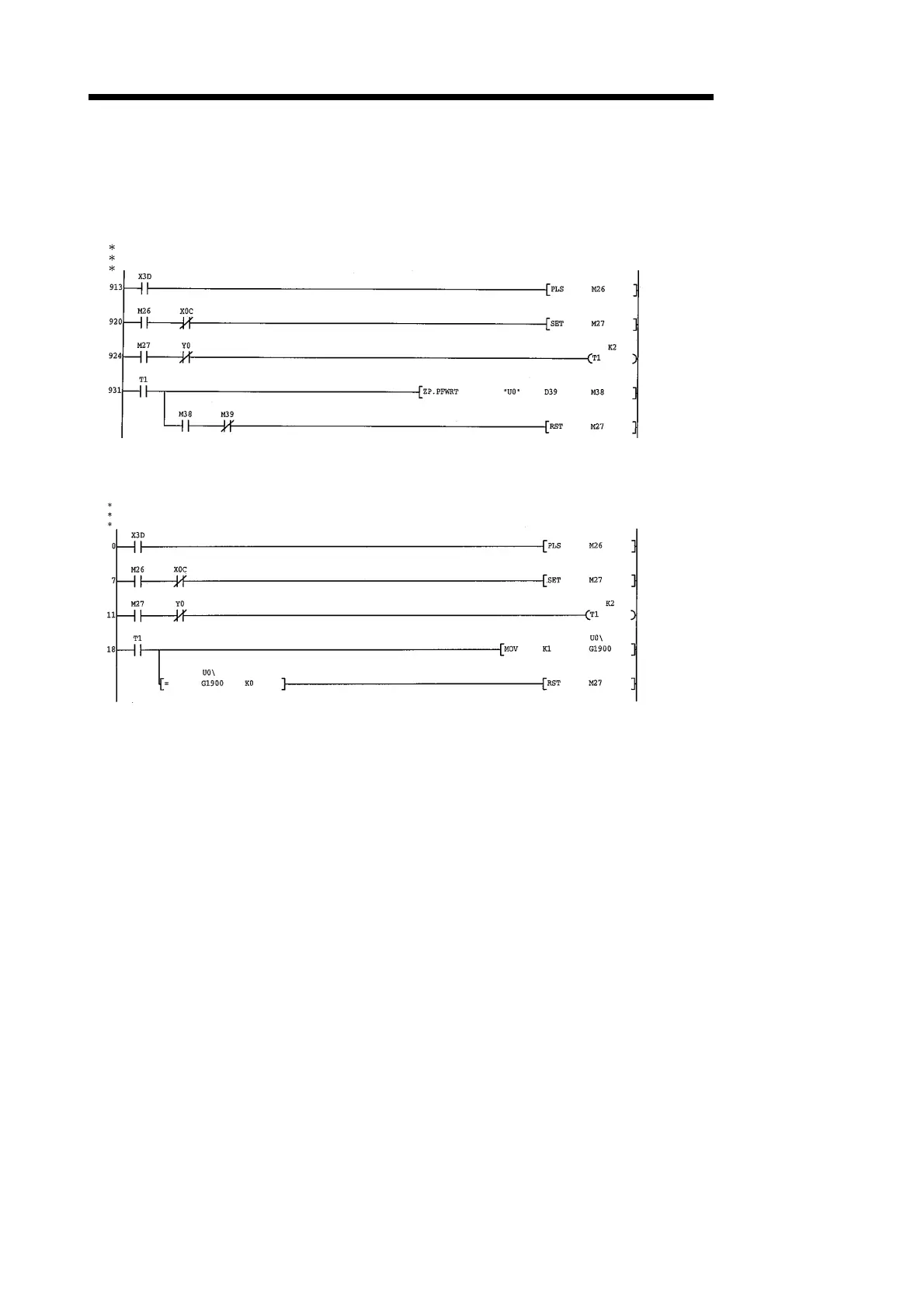

[Program example]
Program used to write the parameters and positioning data stored in the buffer
memory to the flash ROM when X3D is turned ON.
No. 26 Flash ROM write program
<Flash ROM write command pulse>
<Flash ROM write command hold>
<PLC READY output to QD75 standby>
<Flash ROM write execution>
<Flash ROM write command storage OFF>
[Program example for use when dedicated instruction is not used]
<Flash ROM write command pulse>
<Flash ROM write command hold>
<PLC READY output to QD75 standby>
<Flash ROM write execution>
<Flash ROM write command storage OFF
>
Flash ROM write program (when dedicated instruction is not used)
