Mitsubishi QD75M2 User Manual

Appendix - 48
MELSEC-Q
APPENDICES
(c) MR-J2HBUS

M-A
1) Model explanation
05
1
5
0.5(1.64)
1(3.28)
5(16.4)
Symbol
Type: MR-J2HBUS M-A
Cable length [m(ft.)]
• Connector: Sumitomo 3M make
Insulation displacement type…10120-6000EL, 10320-3210-000
Solder connection type……..…10120-3000VE, 10320-52F0-008

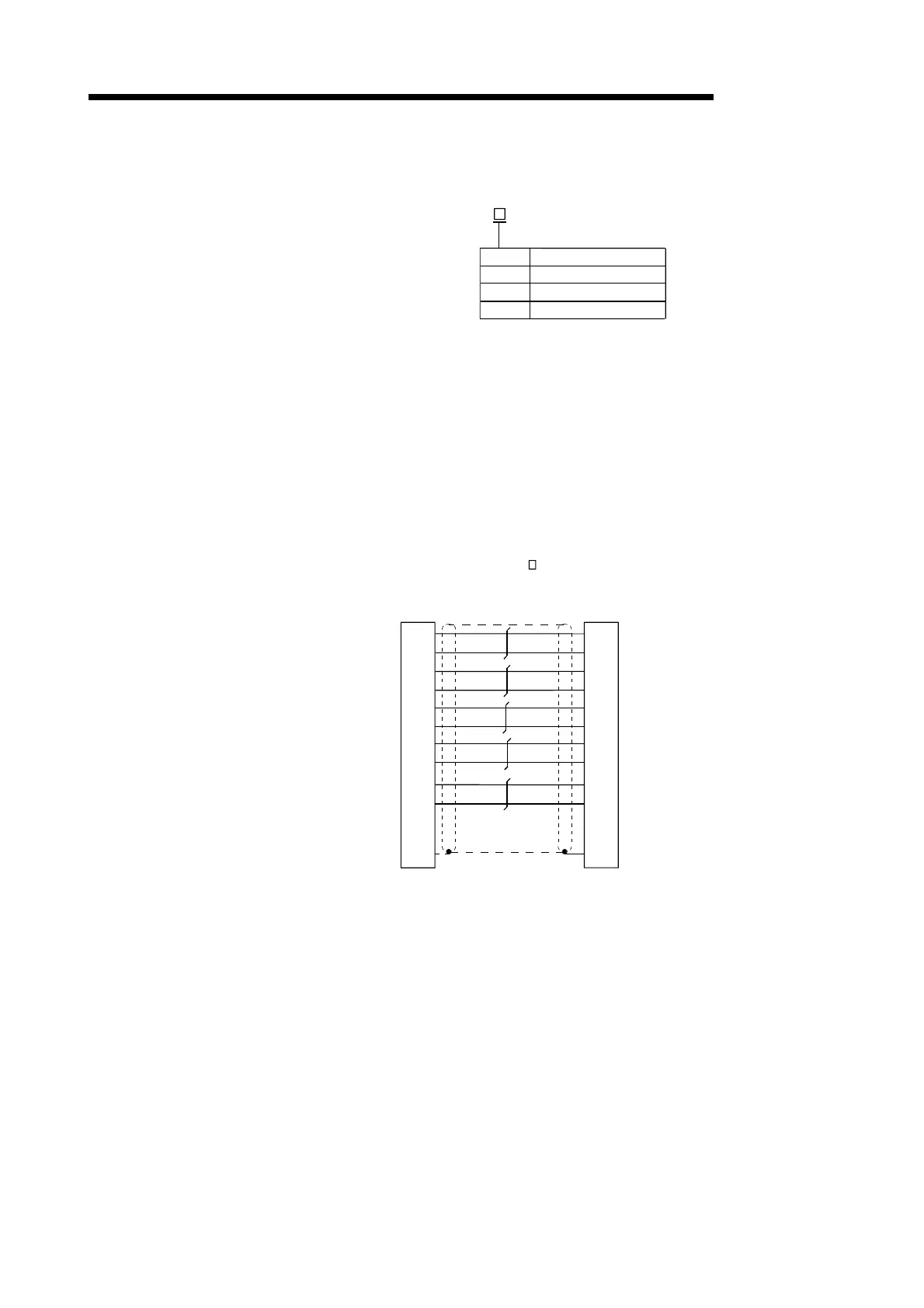

2) Connection diagram
When fabricating a cable, use the recommended wire given on
Appendix 4.2, and make the cable as show in the following connection
diagram. The overall distance of the SSCNET cables on the same bus
is 30m(98.4ft.) .
PCR-S20FS (connector)
1
11
2
12
4
14
6
16
1
15
7
17
LG
LG
RD
RD*
TD
TD*
EMG
EMG*
SD
5
15
LG
LG
14
11
2
12
4
5
20
10320-3210-000 (shell kit)
MR-J2HBUS M-A
shell
PCR-LS20LA1 (connector case)
10120-6000EL (connector)
LG
LG
RD
RD*
TD
TD*
EMG
SD
LG
LG
EMG*
Maker: Honda connectors
Maker: 3M
