App - 8 App - 8
MELSEC-Q
APPENDICES

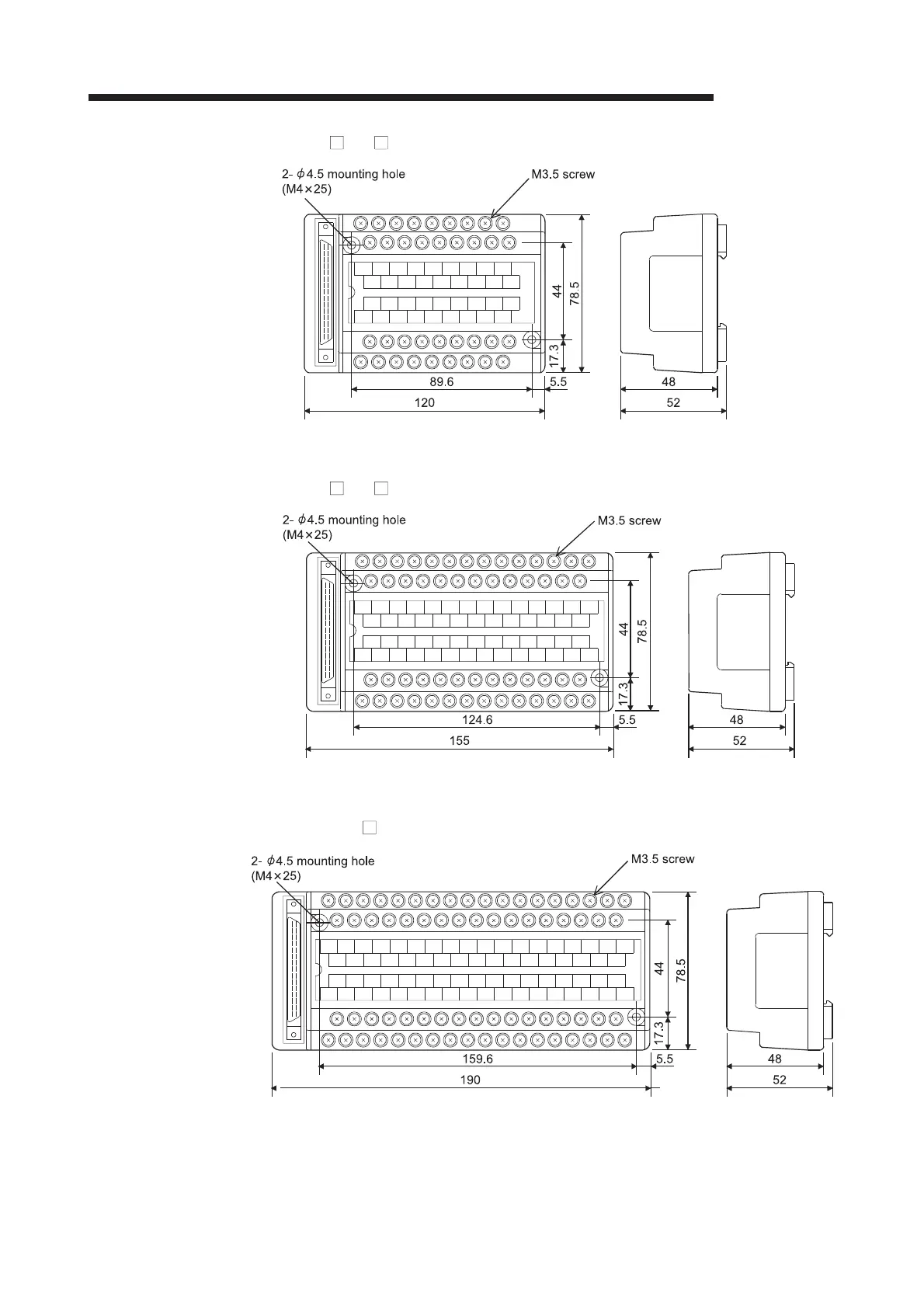

(3) A6TB 36 connector/terminal block converter module
Unit: mm
(4) A6TB 54 connector/terminal block converter module
Unit: mm
(5) A6TBX70 connector/terminal block converter module
Unit: mm
