213
-
'11 • SCM-SM-110
Compressor (CM)

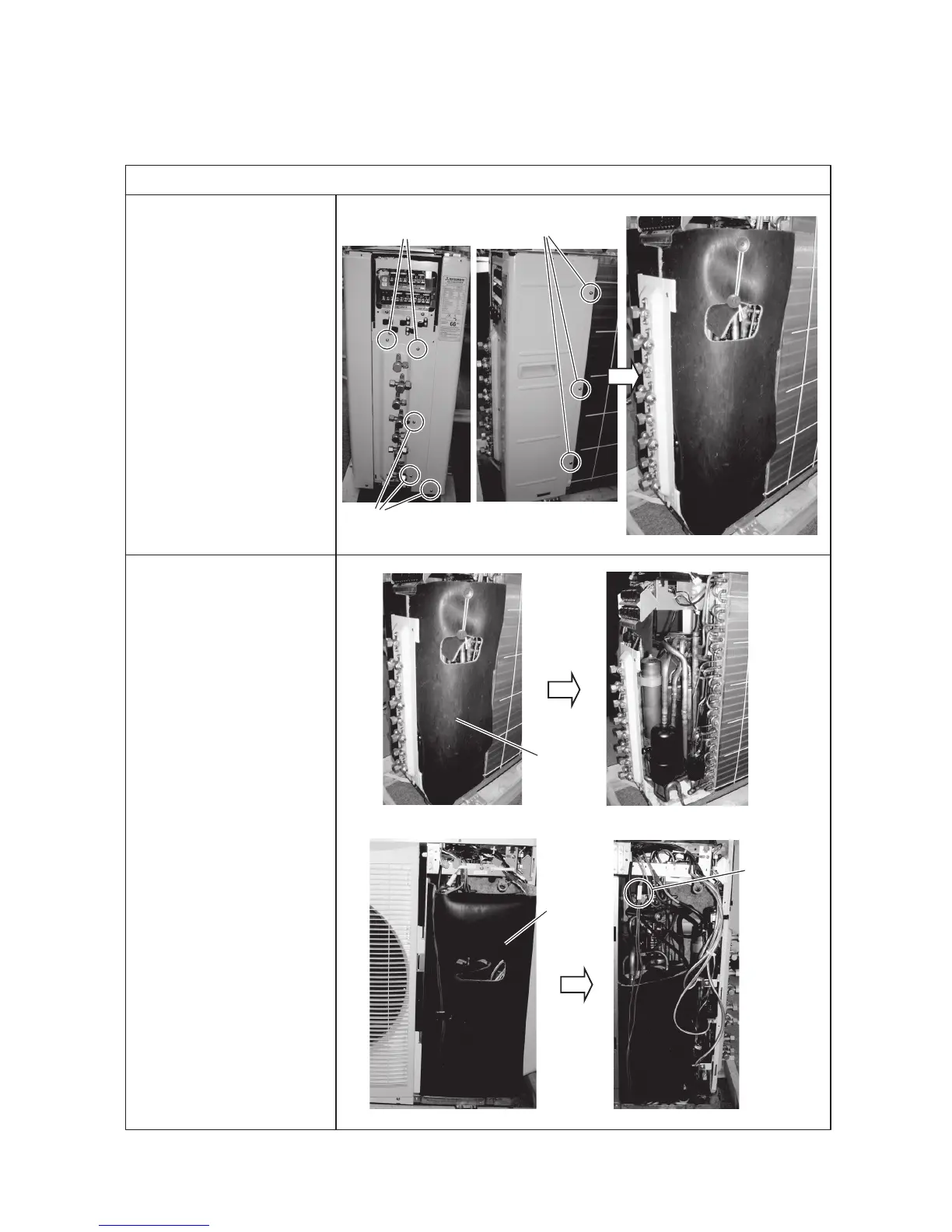

4. Loosen screws and remove
the side panel.
5. Untie the string and remove
rear and front insulation cover.
6. Disconnect the connector of
crankcase heater.
Rear cover
Front cover
〔Side panel〕
〔Side view〕 〔Rear view〕
Screws
Screws
Screws
Disconnect the
connector of
crankcase heater
