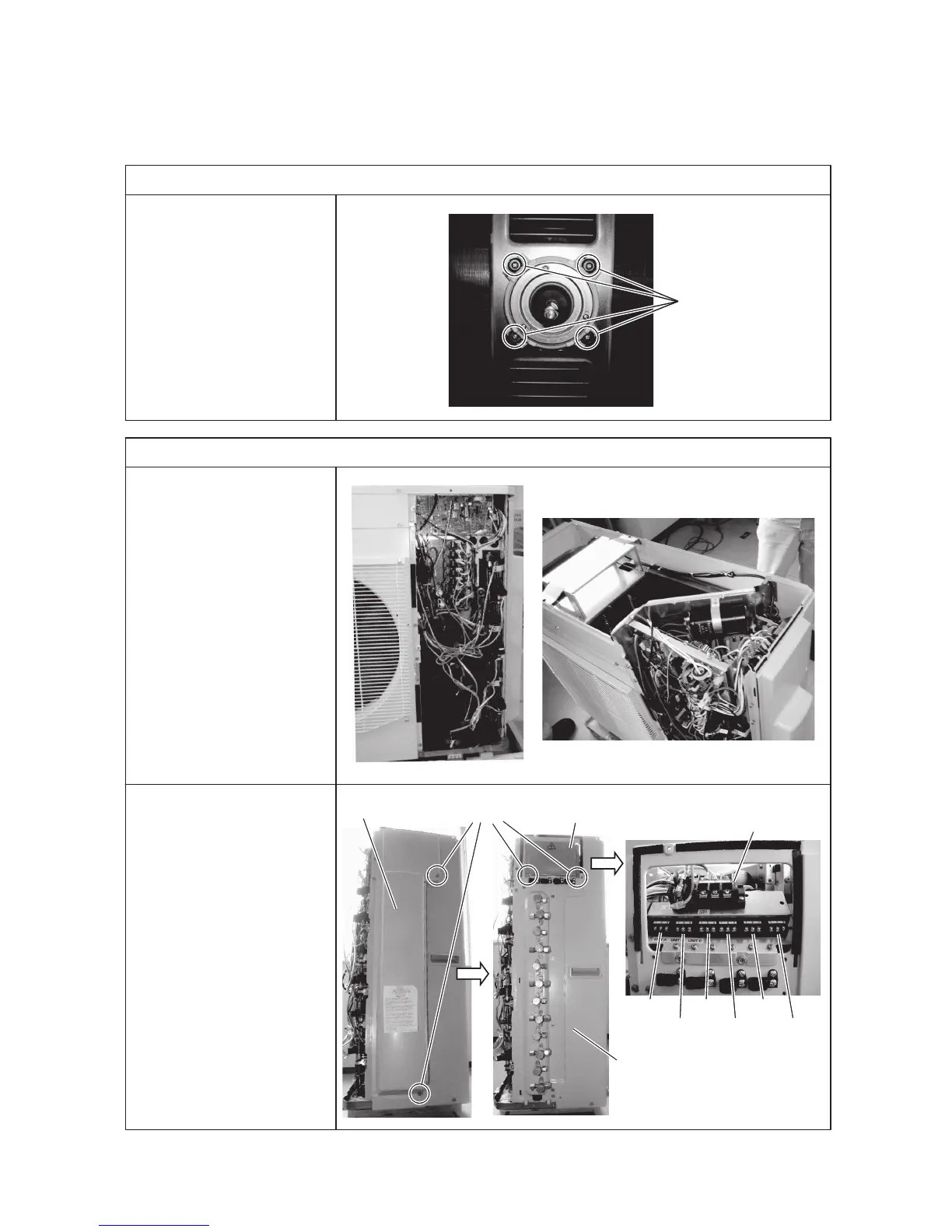

Fan and fa n motor (FMo1)
7. Loosen 4 nuts.
8. Remove the fan motor (FMo1).
Compressor (CM)
1. Loosen screws and remove
the service panel and top
panel.
2. Loosen screws and remove
the cover and the terminal
cover.
3. Loosen screws and
disconnect all cables
locally installed.
Caution
Be sure to do above work
after turning the power OFF
by breaker.
Nuts
Side panel
Cover
Terminal coverScrews
〔After removed terminal cover〕
TB1 (for power)
Unit A Unit C Unit E
Unit B Unit D Unit F
(125 only)
