225

'11 • SCM-SM-110

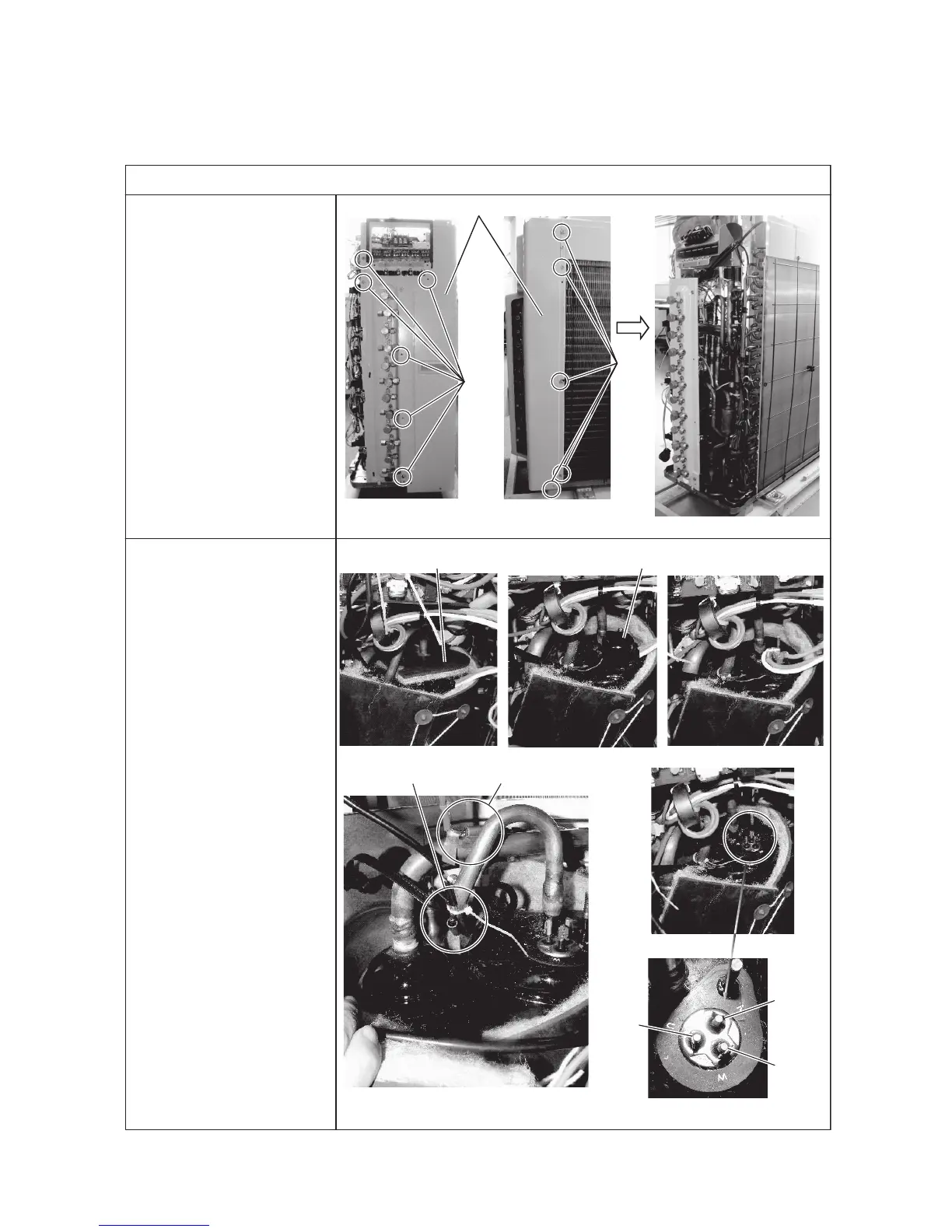

Compressor (CM)

4. Loosen screws and remove

the side panel.

5. Remove the top cover.

6. Remove the terminal cover.

7. Disconnect the faston

connectors from compressor.

U : Red cable

V : White cable

W : Blue cable

Note: Be sure to do above work

after elapsing 3 minutes

from power OFF.

8. Cut off the strap and pull

out the thermistors of Tho-D

and Tho-S from sockets.

Tho- D

Tho- S

Top cover

Terminal cover

Side panel

〔Side view〕〔Rear view〕

(RD)

(WH)

(BL)

Screws
