226
-
'11 • SCM-SM-110
Compressor (CM)

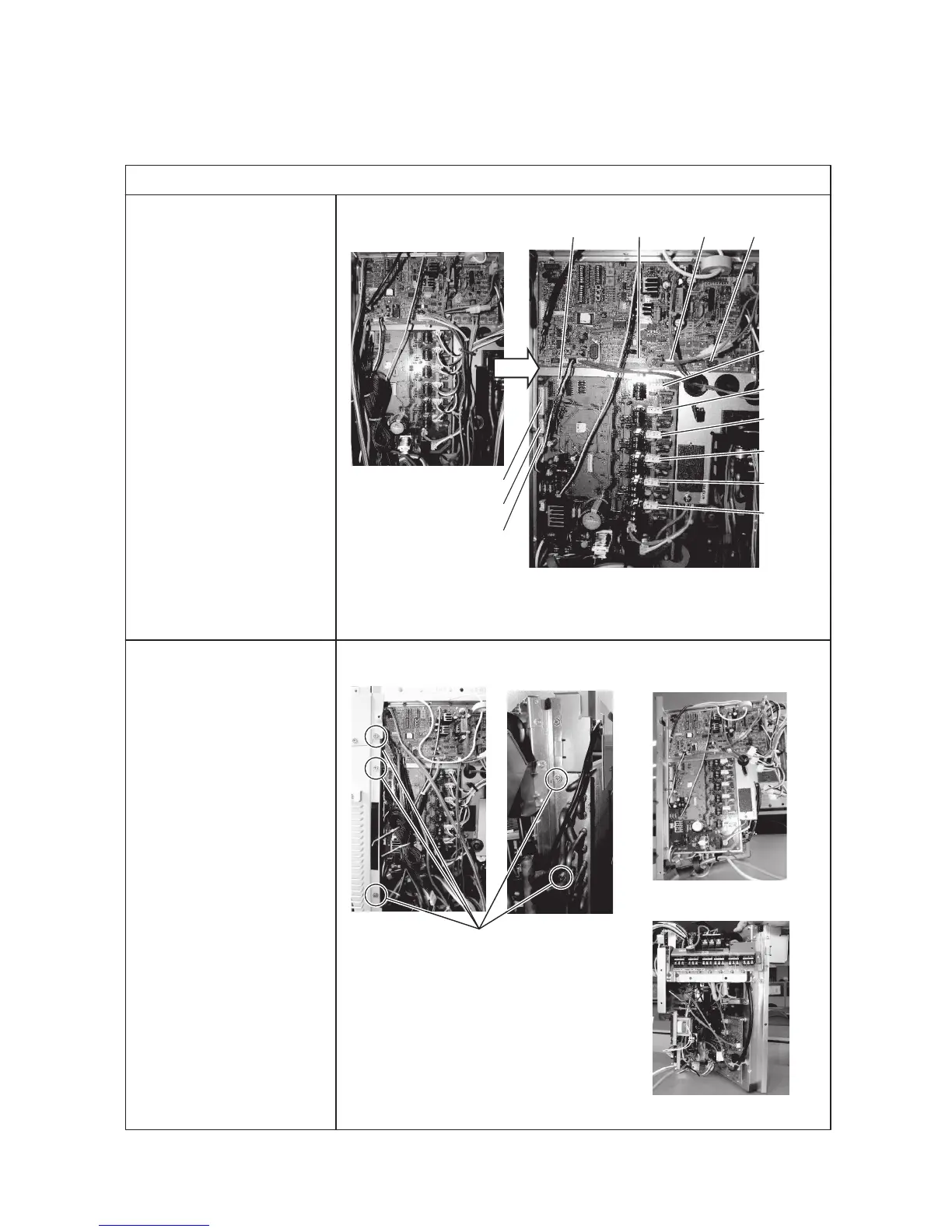

9. Remove the control unit for
easy replacement work of
compressor according to
following procedure.
1) Disconnect all connectors
shown in the photo.
10.Remove the control unit.
(Continue)
2) Loosen the screws (5 pieces)
shown in the photo.
3) Remove the control unit.
CNF(PK)
(125 only)
CNE(OR)
CND(OR)
CNCBL)
CNB(BR)
CNA(RD)
CNEEV1
CNEEV2
CNEEV3
CNEEV4 CNFAN1 CNR1 CNN1
〔Side view〕
〔Control unit removed〕
Screws
〔Front view〕
〔After disconnecting connectors〕
〔Before disconnecting connectors〕
