Mitsubishi SCM45ZJ-S

-
220
-
'11 • SCM-SM-110

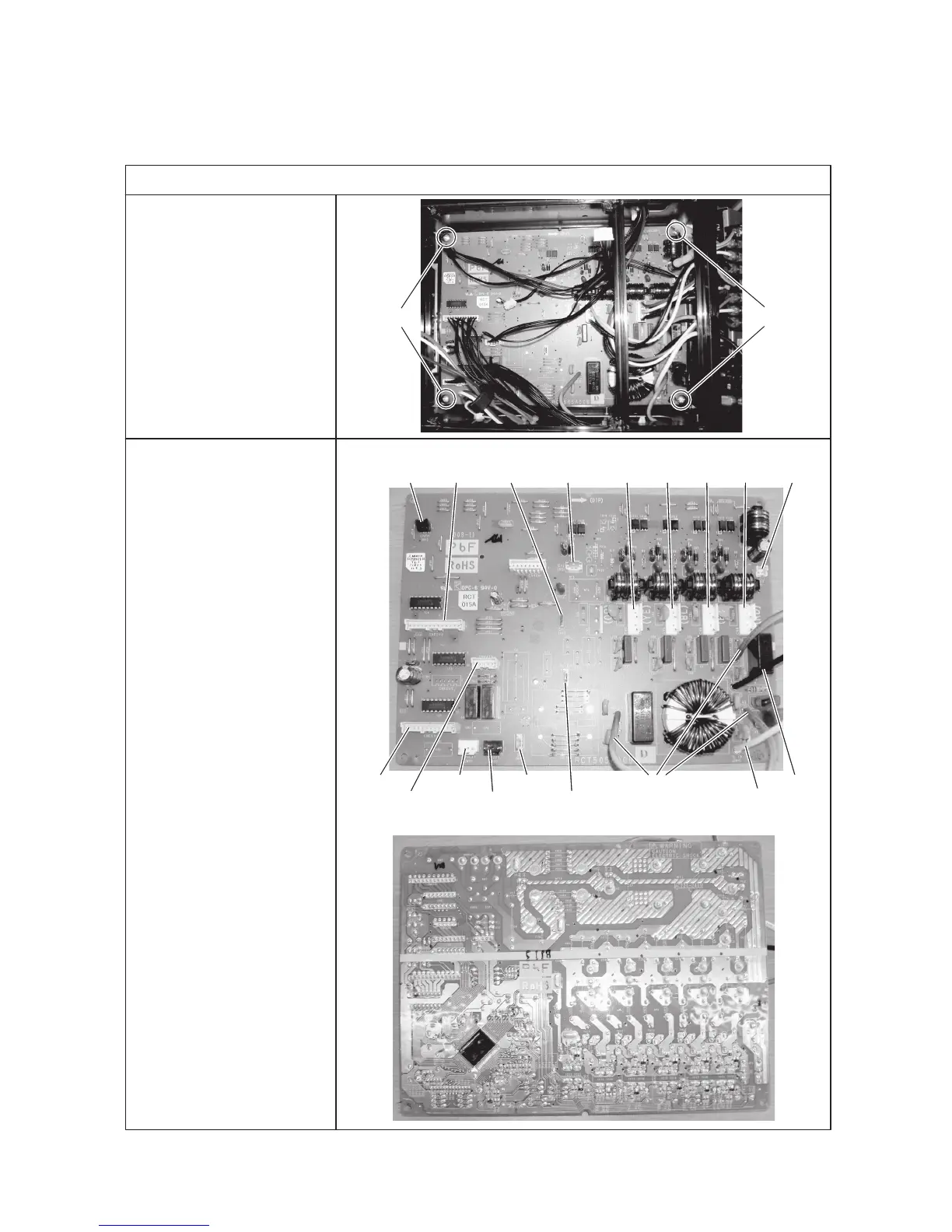

Sub PCB (Lower layer)
6. Loosen 4 screws and remove
Sub PCB.
Layout of Sub PCB.
Black cable
White cable
to N-terminal
〔Pattern side〕
CN20S
CNHEAT
CN20VCNEEV2
CNMAIN
CNTH
CNEEV1
RO (BK)
SO (WH)
C-1 (RD)S-1 (WH)
Screws Screws
CNACNBCNCCND
〔Part side〕
Grounding cables
