Mitsubishi SCM50ZJ-S1 User Manual

-
132
-
'11 • SCM-SM-110

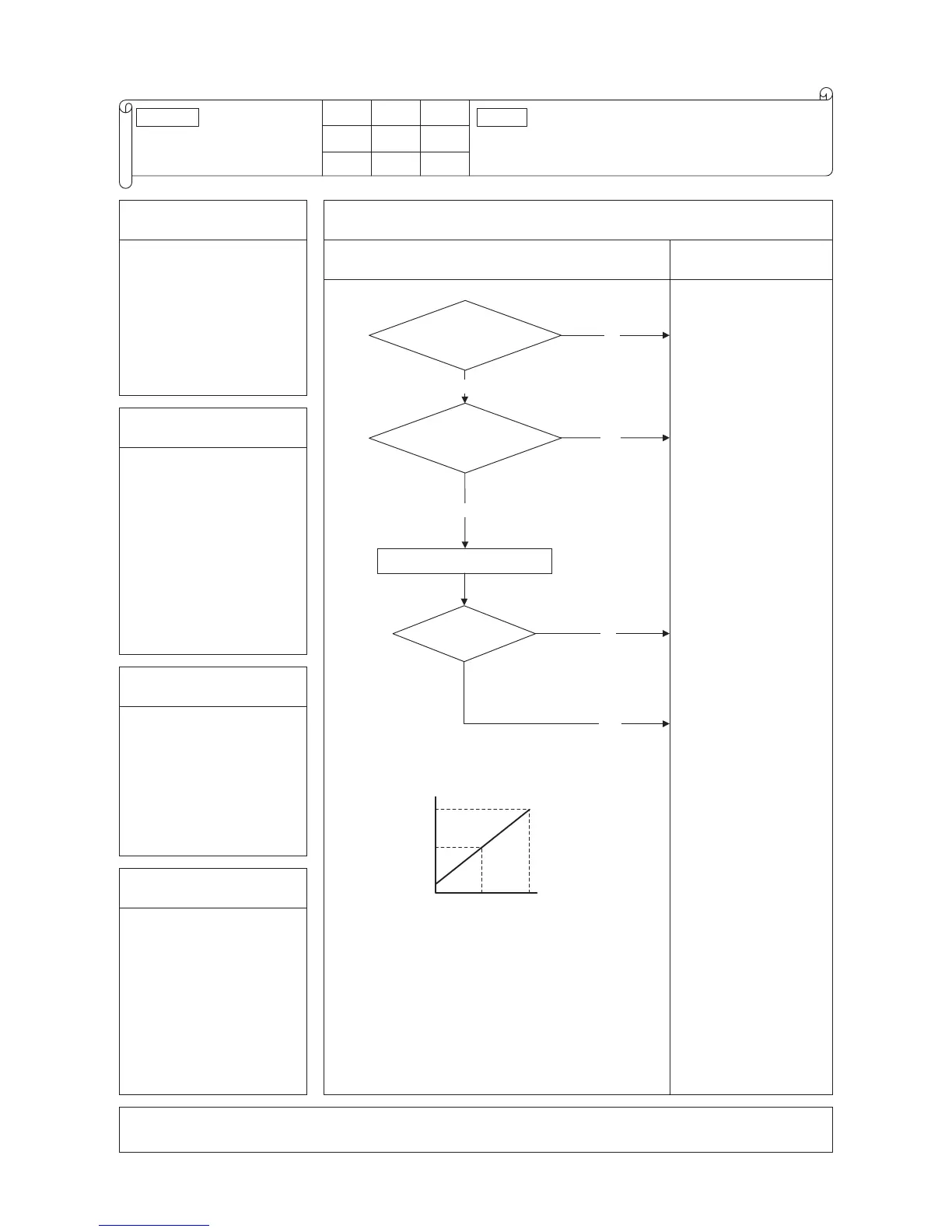

Error code
Remote controller:
LED Green Red
Outdoor
Content
8 times flash
Indoor Keeps flashing
–
Stays OFF
E54
1. Applicable model
5. Troubleshooting
Model SCM100, 125 only
Diagnosis Countermeasure
NO
YES
NO
YES
Replace the high pressure sensor.
Are the
connection of high pressure
sensor connectors (at sensor side
and PCB side) OK?
Are the
pressure (actual
measurement) matched with the value
indicated on the remote
controller?
Is
normal condition
restored?
NO
YES
Correct high pressure sensor
connector connection.
Is refrigerant amount
charged properly?
Is there any anomaly on the
refrigeration circuit?
Defective outdoor control
PCB
➞
Replace.
(Defective high pressure
sensor input circuit)
OK
2. Error detection method
When anomalous voltage
(pressure) is detected
3. Condition of Error displayed
If the pressure sensor detects 0V
or lower and 3.49V or higher for
5 seconds continuously within
2 minutes to 2 minutes 20
seconds after compressor ON,
the compressor stops. When
the compressor is restarted
automatically after 3-minuts
delay, if this anomaly occurs 3
times within 40 minutes
4. Presumable cause
• Defective high pressure sensor
connection
• Defective high pressure sensor
• Defective outdoor control
PCB
• Improper amount of
refrigerant
• Anomalous refrigeration
circuit
Note:
High pressure sensor output characteristics
Note(1) Sensor output：Black (GND) –White
Output voltage：Black – Red(DC5V)
Pressure (MPa)
3.5
2.0
0.5
0 2.08 4.15
Output voltage (V)
High pressure sensor anomaly
（
Model SCM100
,
125
）
