Mitsubishi SCM60ZJ-S1 User Manual

-
212
-
'11 • SCM-SM-110

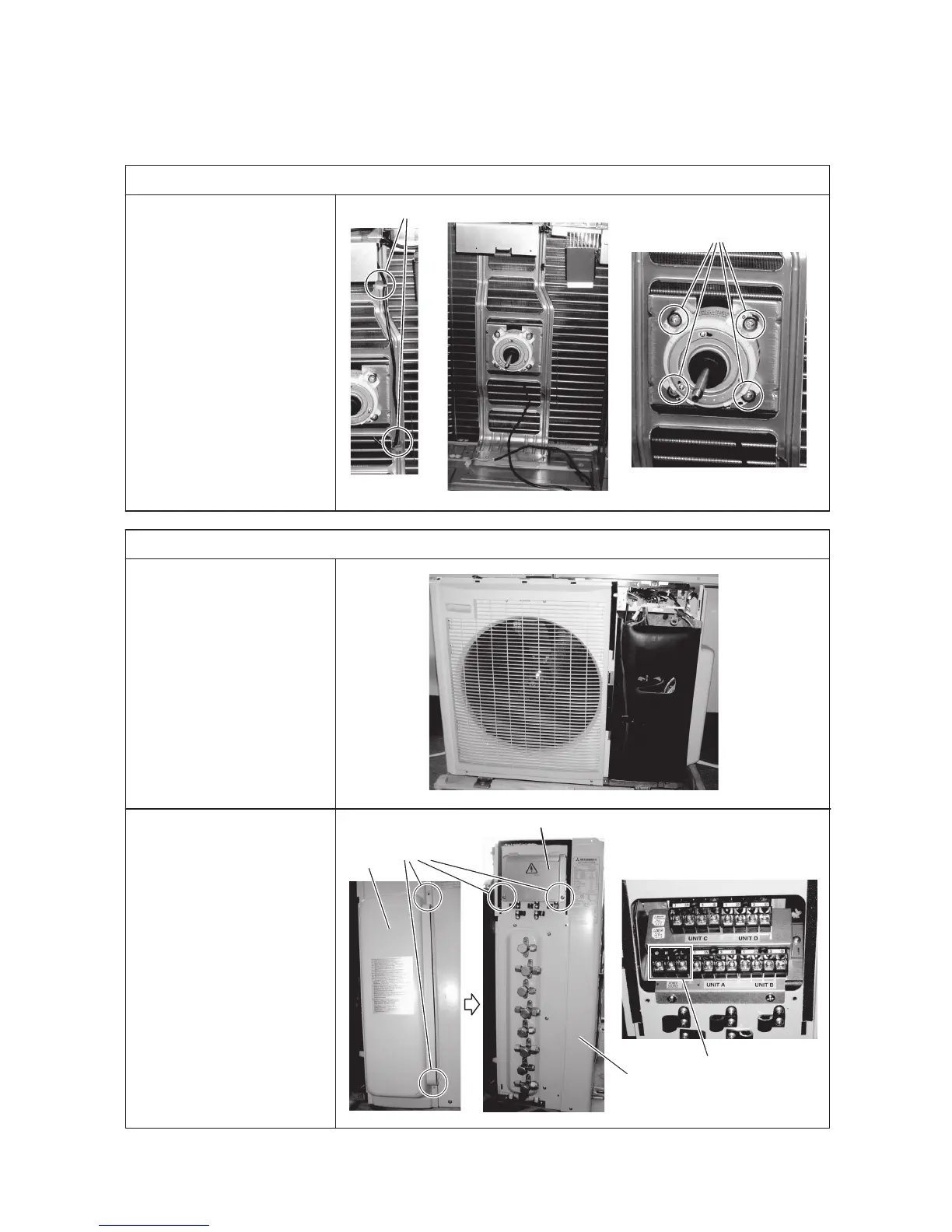

Fan and fan motor (FMo1)
7. Detach the clamps.
8. Pull out the cable.
9. Loose 4 nuts.
10. Remove the fan motor
(FMo1).
Compressor (CM)
1. Loosen screws and remove
the service panel and top
panel.
2. Loosen screws and remove
the cover and the terminal
cover.
3. Loosen screws and
disconnect all power cables
locally installed
Caution
Be sure to do above work
after turning the power OFF
by breaker.
Nuts
Clanps
Side panel
Cover
Terminal cover
Screws
〔After removed terminal cover〕
TB1 (for power)
