– 28–
① A place where good air circulation can be obtained and where rain, snow
or sunshine will not directly strike the unit.
② A place where discharged hot air or unit’s operating sound will not be a
nuisance to the neighborhood.
③ A place where servicing space can be secured.
④ A place where vibration will not be enlarged.
*Avoid installing in the following places.
t" place near the bedroom and the like, so that the operation noise will
cause no trouble.
t
A place where there is possibility of flammable gas leakage.
t"QMBDFexposed to strong wind.
t*O a salt-laden atmosphere or a place where the generation of oil mist,
vapor or fume is expected.
⑤ Blowing out port and suction port on the back side of the unit can be
installed at a distance of 10cm from walls.
*O case the barrier is 1.2m or above in height, or is overhead, the
sufficient space between the unit and wall shall be secured.
⑥ When the unit is installed, the space of the following dimension and above
shall be secured.
Note (1) *G the wall is higher than 1.2 m or a
ceiling is present, distances larger than
indicated in the above table must be
provided.

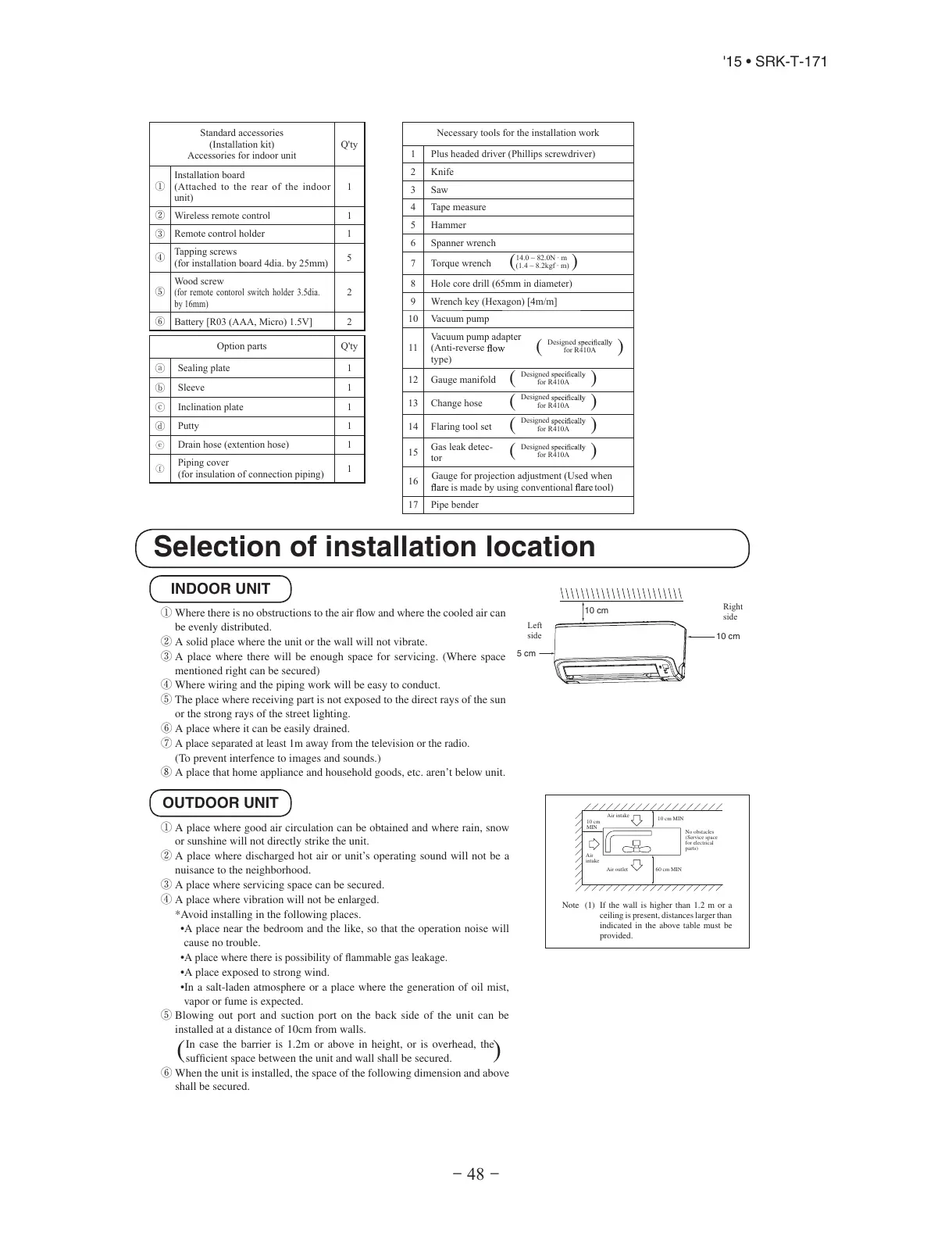

Selection of installation location
① Where there is no obstructions to the air flow and where the cooled air can
be evenly distributed.
② A solid place where the unit or the wall will not vibrate.
③ A place where there will be enough space for servicing. (Where space
mentioned right can be secured)
④ Where wiring and the piping work will be easy to conduct.
⑤ The place where receiving part is not exposed to the direct rays of the sun
or the strong rays of the street lighting.
⑥ A place where it can be easily drained.
⑦
A place separated at least 1m away from the television or the radio.
(To prevent interfence to images and sounds.)
⑧ A place that home appliance and household goods, etc. aren’t below unit.
DN.*/
Air intake
DN.*/
10 cm
.*/
Air outlet
Air
intake
No obstacles
(Service space
for electrical
parts)
( )
Standard accessories
(Installation kit)
Accessories for indoor unit
Q'ty
①
Installation board
(Attached to the rear of the indoor
unit)
1
②
Wireless remote control 1
③
Remote control holde
r
1
④
Tapping screws
(for installation board 4dia. by 25mm)
5
⑤
Wood screw
(for remote contorol switch holder 3.5dia.
by 16mm)
2
⑥
Battery [R03 (AAA, Micro) 1.5V] 2
Option parts Q'ty
ⓐ
Sealing plate 1
ⓑ
Sleeve 1
ⓒ
Inclination plate 1
ⓓ
Putty 1
ⓔ
Drain hose (extention hose) 1
ⓕ
Piping cover
(for insulation of connection piping)
1
Necessary tools for the installation work
1 Plus headed driver (Phillips screwdriver)
2 Knife
3 Saw
4 Tape measure
5 Hammer
6 Spanner wrench
7 Torque wrench
(
14.0 ~ 82.0N · m
(1.4 ~ 8.2kgf · m)
)
8 Hole core drill (65mm in diameter)
9 Wrench key (Hexagon) [4m/m]
10 Vacuum pump
11
Vacuum pump adapter
(Anti-reverse
type)
(
Designed
for R410A
)
12 Gauge manifold
(
Designed
for R410A
)
13 Change hose
(
Designed
for R410A
)
14 Flaring tool set
(
Designed
for R410A
)
15
Gas leak detec-
tor
(
Designed
for R410A
)
16
Gauge for projection adjustment (Used when
is made by using conventional tool)
17 Pipe bender
Left
side
5 cm
10 cm
Right
side
10 cm
INDOOR UNIT
OUTDOOR UNIT
