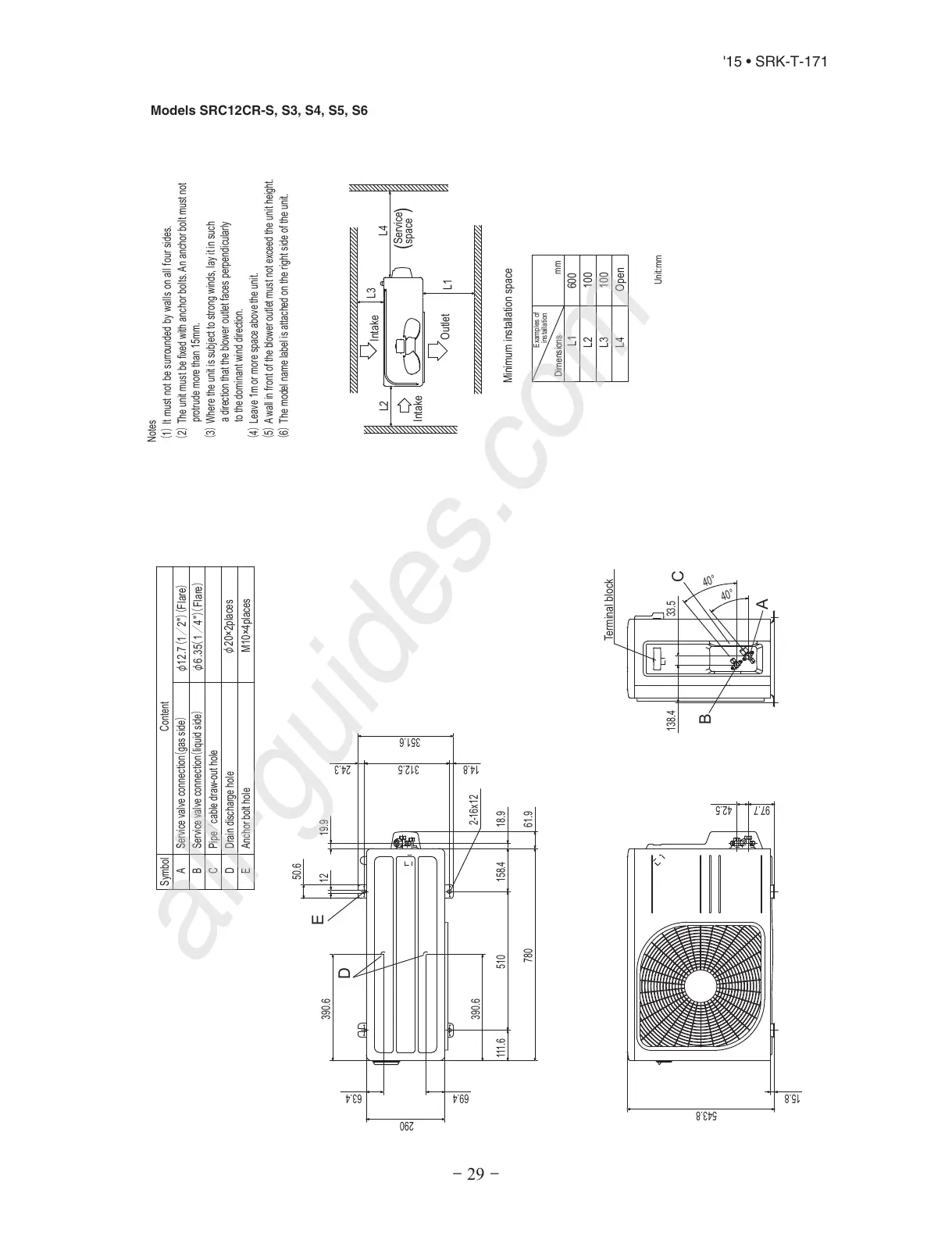

'15 • SRK-T-171
Models SRC12CR-S, S3, S4, S5, S6
）eralF（）"4／1（53.6φ
Content
C Pipe／cable draw-out hole
D
E Anchor bolt hole
Drain discharge hole
Symbol
B
A Service valve connection（gas side）
M10×4places
φ20×2places
Service valve connection（liquid side）
）eralF（）"2／1（7.21φ
L2
Intake
Outlet
Intake
L3
L1
Minimum installation space
Service
space
( )
Notes
.sedisruofllanosllawybdednuorrusebtontsumtI）1（
（2） The unit must be fixed with anchor bolts. An anchor bolt must not
protrude more than 15mm.
（3） Where the unit is subject to strong winds, lay it in such
a direction that the blower outlet faces perpendicularly
to the dominant wind direction.
（4） Leave 1m or more space above the unit.
（5） A wall in front of the blower outlet must not exceed the unit height.
（6） The model name label is attached on the right side of the unit.
L4
L2
L3
L4
L1
100
100
600
Open
Examples of
Dimensions
installation
15.8
543.8
390.6
390.6
63.469.4
290
111.6 510 158.4
780 61.9
18.9
14.8
351.6
2-16x12
312.5 24.3
50.6
12
97.7 42.5
Terminal block
40
°
4
0
°
138.4 33.5
19.9
D
E
A
C
B
Unit:mm
mm
To Next Page
