23
-

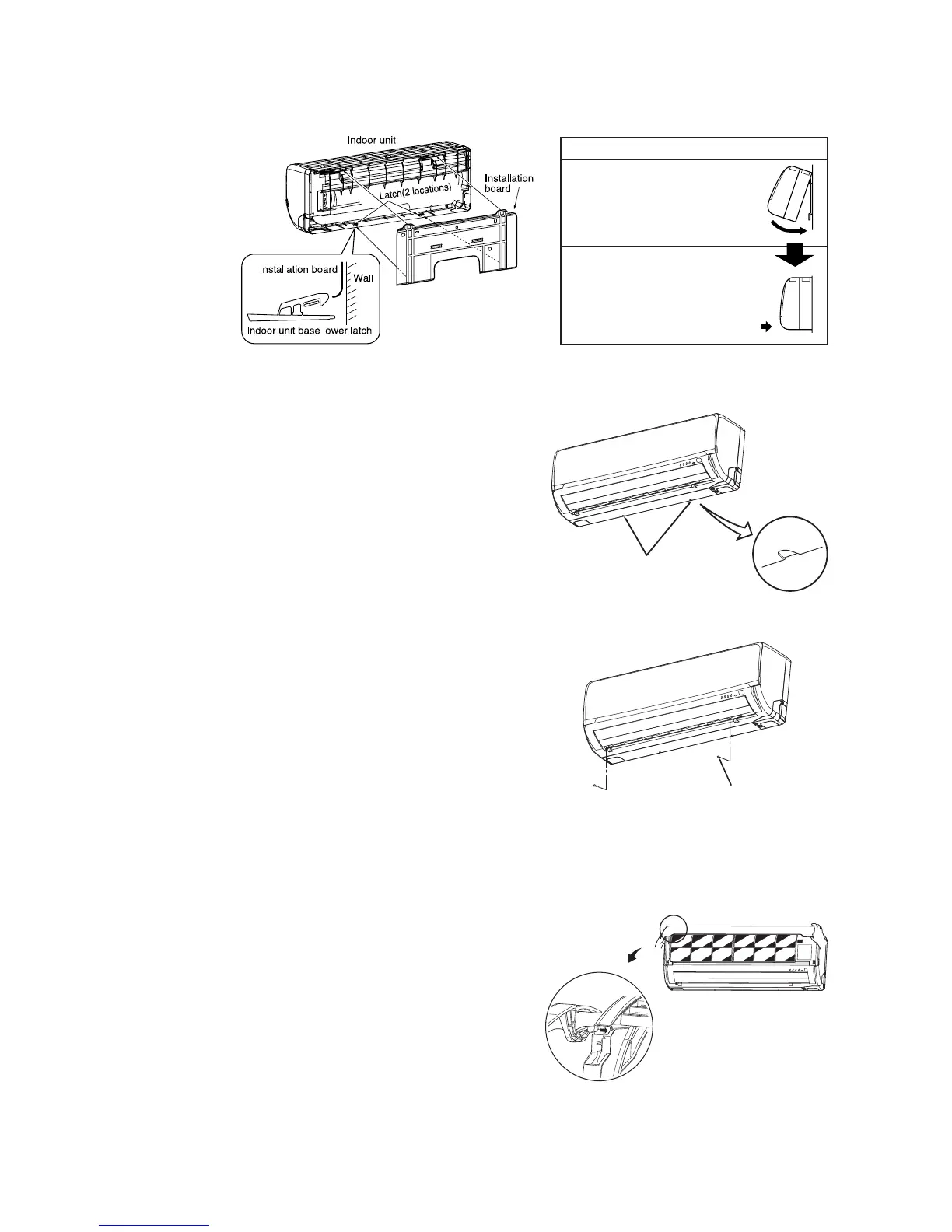

(e) Securing the indoor unit to the installation board
•
How to remove the indoor unit from the installation board
1) Push up at the marked portion of the indoor unit base lower
latch, and slightly pull it toward you.
(both right and left hand sides)
(The indoor unit base lower latch can be removed from the in-
stallation board)
2) Push up the indoor unit upward. So the indoor unit will be
removed from the installation board.
(4) Removal and installation of the front panel
(a) Removing
• Remove the 2 set screws.
• Move the lower part of the panel forward and push upwards to
remove. (Remove the 3 latches in the upper section.)
(b) Fitting
• Do remove the air filter.
• Cover the body with the front panel.
• Push the circled portion at the front.
• Tighten the 2 set screws.
• Fit the air filter. Carry out in the above order.
(5) Open/close and detachment/attachment of air inlet panel
(a) To open, pull the panel at both ends of lower part and release
latches, then pull up the panel until you feel resistance. (The
air inlet panel stops at approx. 60˚ open position.)
(b) To close, hold the panel at both ends of lower part to lower
downward and push it slightly until the latch works, then push
the center portion slightly.
(c) To remove, pull up the panel to the position shown in right
illustration and pull it toward you.
(d) To install, insert the air inlet panel arm into the slot on the front
panel from the position shown in right illustration, hold the
panel at both ends of lower part, lower it downward slowly,
then push it slightly until the latch works and further push the
center portion slightly.
Set screws
Installation Steps
1 Pass the pipe through the hole
in the wall, and hook the up-
per part of the indoor unit to
the installation board.
2 Gently push the lower part to
secure the unit.
The marked portion of the
Indoor unit bese lower latch
Lid
To Next Page
