(ii) Function setting method
1) Stop the air conditioner
2) Press the SET and MODE buttons simultaneously
for 3 seconds or longer.
The screen display will be switched as follows:
“
SELECT ITEM”
“ SET"
“FUNCTION SET
”
3) Press the SET button.
The unit will enter the function setting mode. The
screen display will charge to “
FUNCTION
”.
4) Check which category your desired setting belongs to, “
FUNCTION (Remote control unit function)” or “I/U
FUNCTION " (Indoor unit function).
5) Press either
or button.
Select either “ FUNCTION ” or “I/U FUNCTION ”.
6) Press the SET button.
When “
FUNCTION ” is selected.
1 “DATA LOADING” (blinking)
“ FUNCTION”
“01 GRILLE SET” (Function number: A, Function description: B)
The screen display will be switched like this.
2 Press either
or button.
“Function number: A, Function description: B “from the list of remote control unit functions will be displayed one by
one. Select a desired function.
3 Press the SET button.
The screen display will be switched as follows:
“
SETTING” “Setting: C” (ex. “AUTO RUN ON”)
4 Press either or button.
A list of “Settings: C” will be displayed one by one. Select your desired setting.
5 Press the SET button.
The selected setting is displayed
for 2 seconds, then followed by
“SET COMPLETE” and the
function setting process is com-
pleted.
Then the screen display will be
swiched to “Function number:
A, Function description: B,” so
if you want to continue to set an-
other function, repeat the steps as
explained above.
To finish the function setting pro-
cess, please proceed to Step (iii).

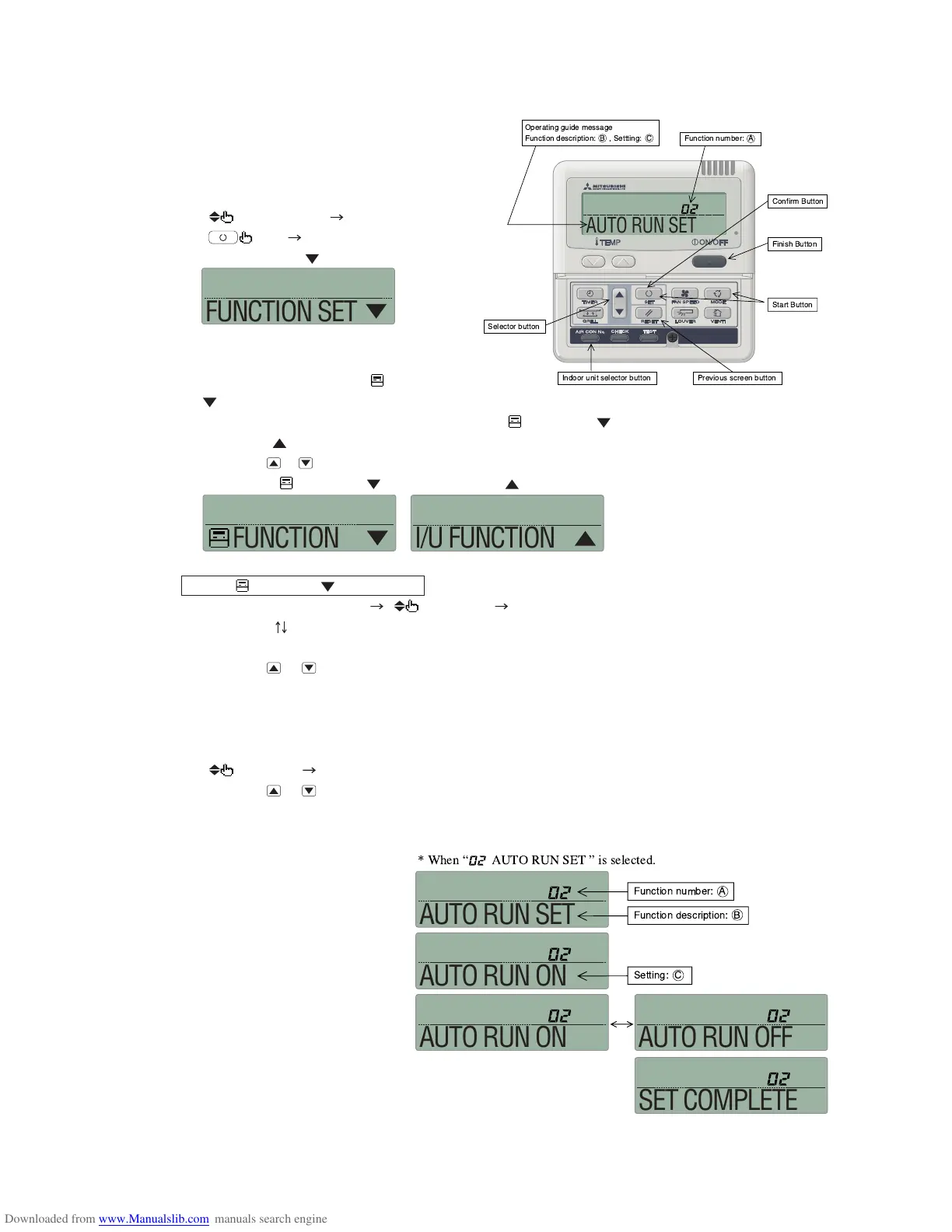

Operating guide message
Function description: B , Settting: C
Function number: A
Previous screen buttonIndoor unit selector button
Confirm Button
Finish Button
Selector button
Start Button
AUTO RUN SET
FUNCTION SET
FUNCTION
I/U FUNCTION
AUTO RUN SET
AUTO RUN ON
AUTO RUN ON AUTO RUN OFF
SET COMPLETE
Function number: A
Function description: B
* When Ò AUTO RUN SET Ó is selected.
Setting: C
