– 7 –
Unit display section

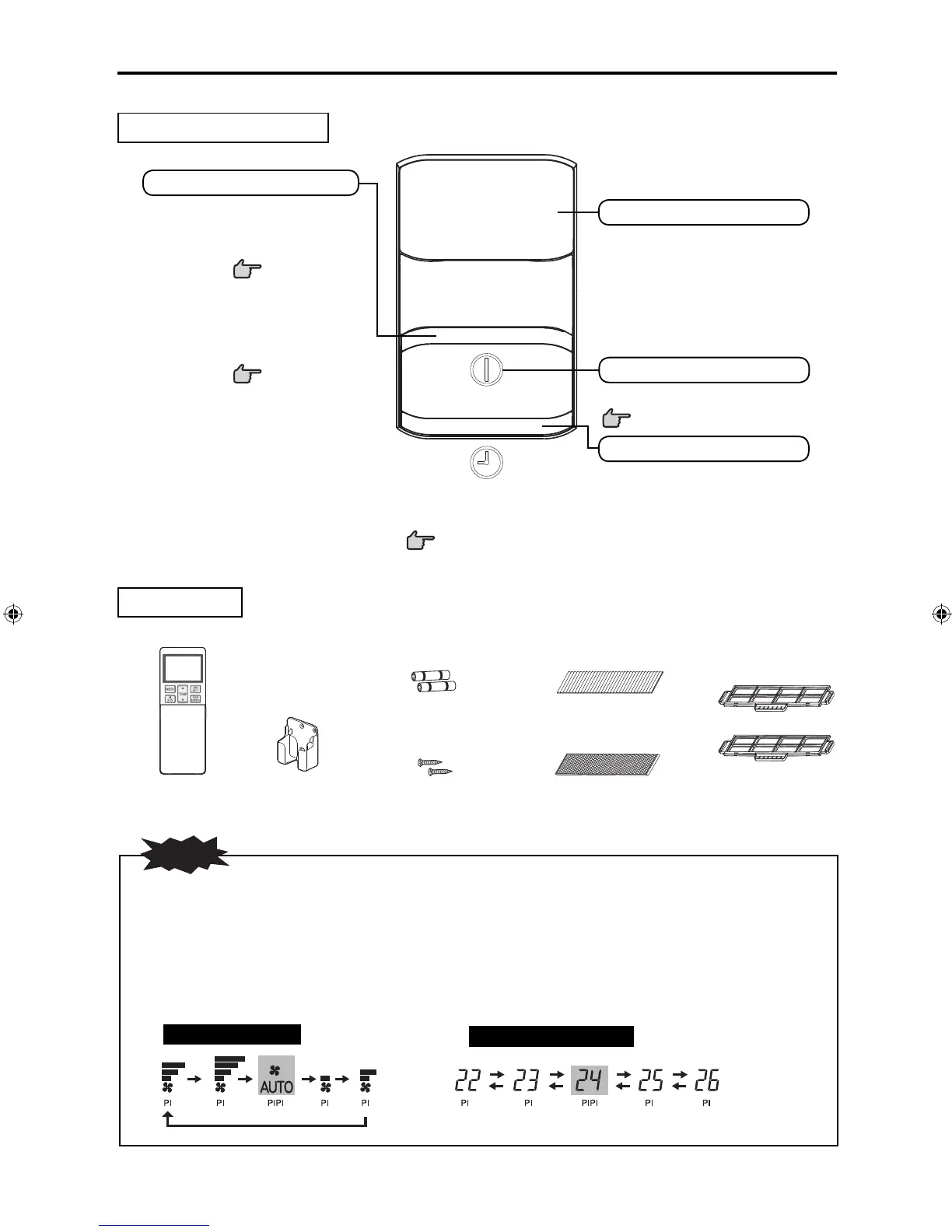

Name of each part and its function
• Buzzer sound for remote control
Buzzer sound (PiPi) is produced when
preset temperature is set to 24 °C or,
AUTO operation mode is selected or,
automatic airflow is selected.
Buzzer sound (Pi) is produced when
air-conditioner is turned off by pressing ON/OFF button (except CLEAN mode).
NOTE
Preset temperature
Airflow setting
Remote control Remote control
holder
Filter holder ×2
Allergen clear filter
(Light orange)
Photocatalytic washable
deodorizing filter (Orange)
Battery ×2
(R03 (AAA, Micro))
Wood screw ×2
(for remote control holder mounting)
TIMER light (yellow)
Illuminates during TIMER operation.
This button can be used for turning on/off
the unit when a remote control is not available.
Page 8
Remote control signal receiver
Unit ON/OFF button
RUN light (green)
Accessories
• Illuminates during operation.
•
Blinks slowly when CLEAN operation
(3 seconds ON, 1 second OFF).
• Blinks when airflow is stopped to
prevent blowing out of cold air in
heating operation. (1.5 seconds ON,
0.5 seconds OFF)
Page 26
Page 31
• RUN and TIMER lights blink quickly during invalid operation mode.
Page 33
