Mitsubishi SRK328HENF-L2

1-28

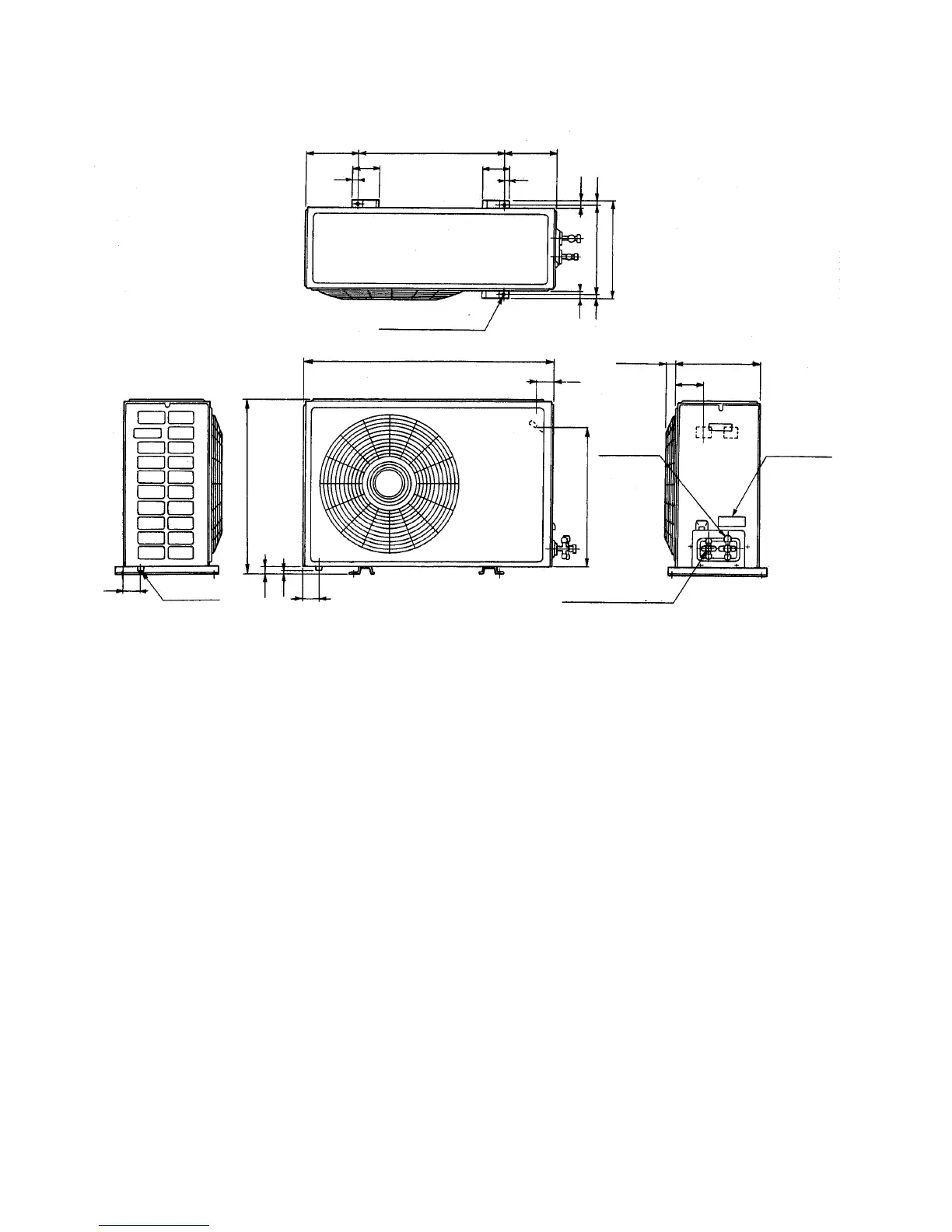

Models SRC501H(C)ENF, 561H(C)ENF
170
Oval (M10x4) holes
for Anchor bolt
Drain pipe
87
15
55
850
70.5
30
100
290
60
87
15
25 19
307
615
25 17
475
345
30 19
510 170
Unit: mm
Service
valve (Gas)
Ø12.7 (1/2˝)
Lebel model
name
Service valve (Liquid)
Ø6.35 (1/4˝)
