Mitsubishi SRK35ZSP-W Service Manual

'18 • SRK-SM-259
-
28
-
'09•SRK-DB-087D

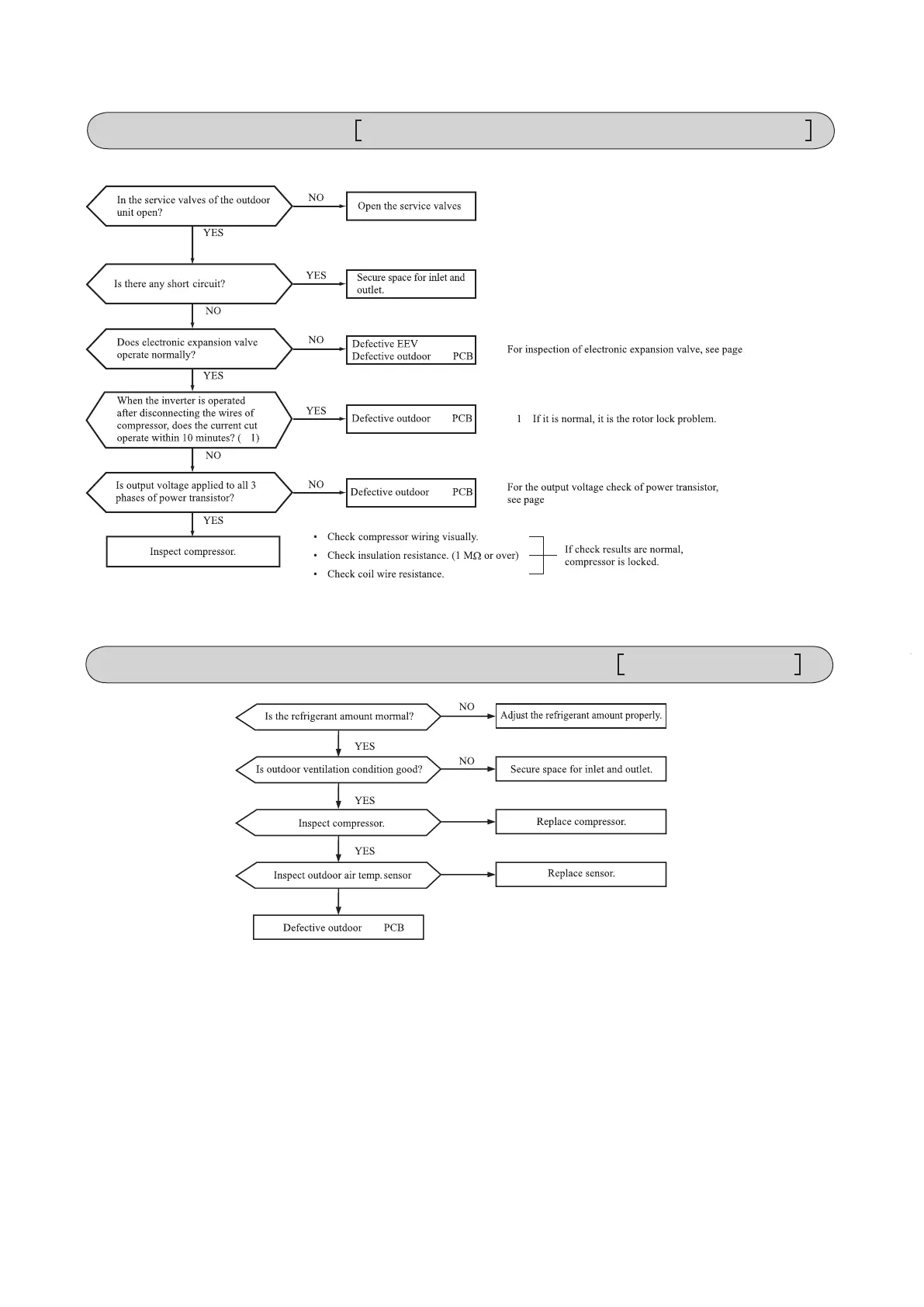

Current cut
Compressor lock, Compressor wiring short circuit, Compressor output is open phase,
Outdoor unit PCB is faulty, Service valve is closed, EEV is faulty, Compressor faulty.
＊
＊
Current safe stop
Overload operation, compressor
lock, overcharge
35.
33.
SRC25, 35 : 4.428Ω (U-V, V-W, U-W) or more at 20ºC
SRC45 : 1.728Ω (U-V) , 1.705Ω (V-W) , 1.761Ω (U-W) or more at 20ºC
.
-
unit
unit
unit
unit
'09•SRK-DB-087D
Over heat of compressor
Gas shortage, defective discharge
pipe sensor
Error of signal transmission
Wiring error including power cable, defective indoor/
outdoor unit PCB
②③
②③
①②
27)
unit
unit
unit
unit
-
-
-
-
-

Mitsubishi SRK35ZSP-W Specifications

General

Cooling Capacity	3.5 kW
Heating Capacity	4.0 kW
Refrigerant	R32
Power Supply	220-240 V, 50 Hz
Type	Split System
Noise Level (Indoor Unit)	21 dB
Noise Level (Outdoor Unit)	48 dB(A)
