1-29

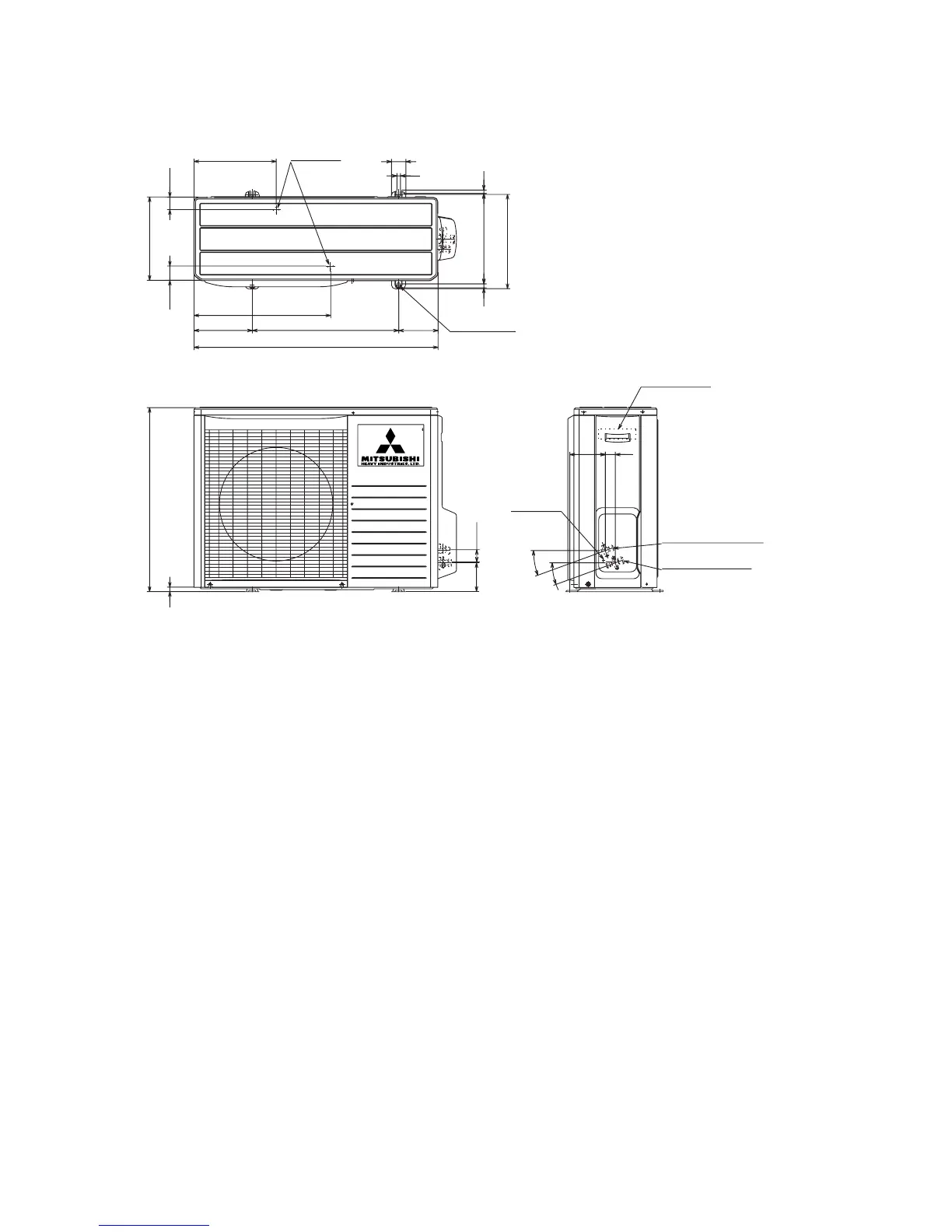

Models SRC50C(H)A, 56C(H)A
42.7
Drain hole
Elogated hole
(2-12X16)
T
er
minal block
Service valve (Liquide)
Ø
6.35 (1/4'')
Service valve (Gas)
Ø
12.7 (1/2'')
Ground
terminal
314
14
12
850
203.1
510
136.9
476
286.4
12
50
290
49.6
43.5
328
100.3
15
640
124
34.6
20
˚
20
˚
28
30
Table of Contents
Table of Contents
2
General Information
3
Specific Features
3
How to Read the Model Name
3
Selection Data
4
Specifications
4
Specifications
21
Range of Usage & Limitations
24
Exterior Dimensions
25
Piping System
33
Electrical Data
41
Electrical Wiring
41
Outline of Operation Control by Microcomputer
54
Table of Operation Control
54
Operation Control Function by Remote Control Switch
56
Selection Chart
59
Refrigerant Piping
59
Test Run
60
Refrigerant Piping
60
Standard Operation Data
61
Cooling Only Type
61
Heat Pump Type
61
Precautions for Wireless Remote Controller Installation and Operation
62
Precautions for Wireless Remote Controller Installation
63
Maintenance Data
64
Trouble Shooting
64
Indication of Self Diagnosis (Indoor Unit)
65
Power Supply Remote Operation
68
4
Based on 1 rating
Ask a question
Give review
