Mitsubishi SRK71ZM-S

-
27
-
'13 • SRK-T-142
Indoor unit
Outdoor unit
Flare
connection
Flare connection
Liquid
pipe
( -6.35)
Gas pipe
( 15.88)
Service valve
Heat
exchanger
Electronic
expansion valve
(Liquid)
Strainer Strainer
Capillary tube
Outdoor air
temp. sensor
Muffler
Compressor
Discharge pipe
temp. sensor
Cooling cycle
Heating cycle
Check joint
4way valve
Service valve
Heat
exchanger
sensor
(Th22)
(TH3)
Humidity
sensor
(Th3)
( Gas )
(TH2)
Heat
exchanger
sensor
(TH1)
(EEV)
Capillary tube
Heat
exchanger
Room temp.
sensor
(Th1)
Heat
exchanger
sensor
(Th21)
Accumulator

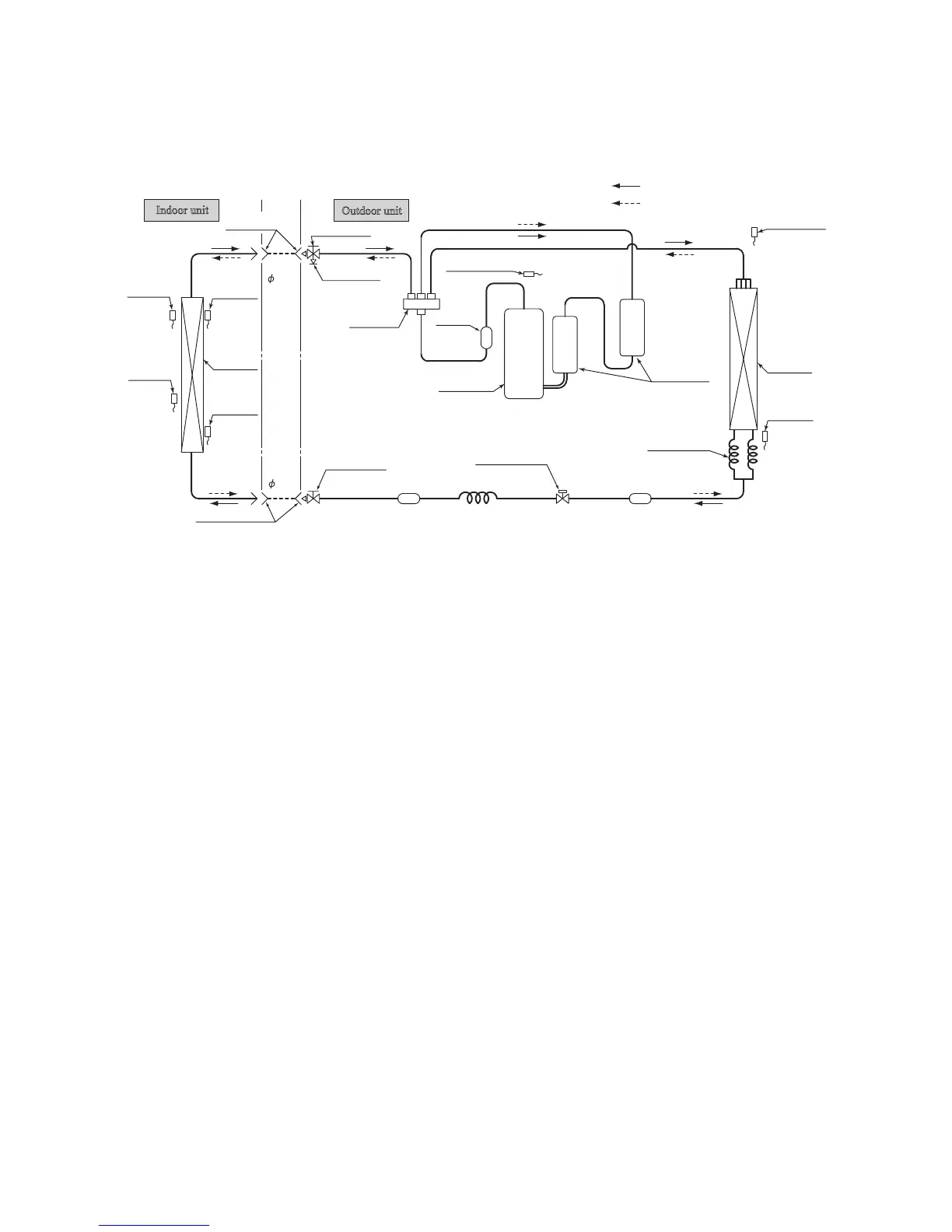

5. PIPING SYSTEM
Models SRK63ZM-S, 71ZM-S, 80ZM-S
