5. How to disconnect the 12V auxiliary battery negative terminal
CAUTION:
The negative terminal disconnect for the 12V auxiliary battery should be 3 minutes later the power supply
mode of the power switch is turned off.
Use an open end wrench (10 mm) to disconnect the negative terminal of the 12V auxiliary battery according to the
procedure below, and then wrap a plastic tape around the disconnected negative terminal.
Shut down the SRS air bag system circuit by disconnecting the negative terminal of the 12V auxiliary battery.

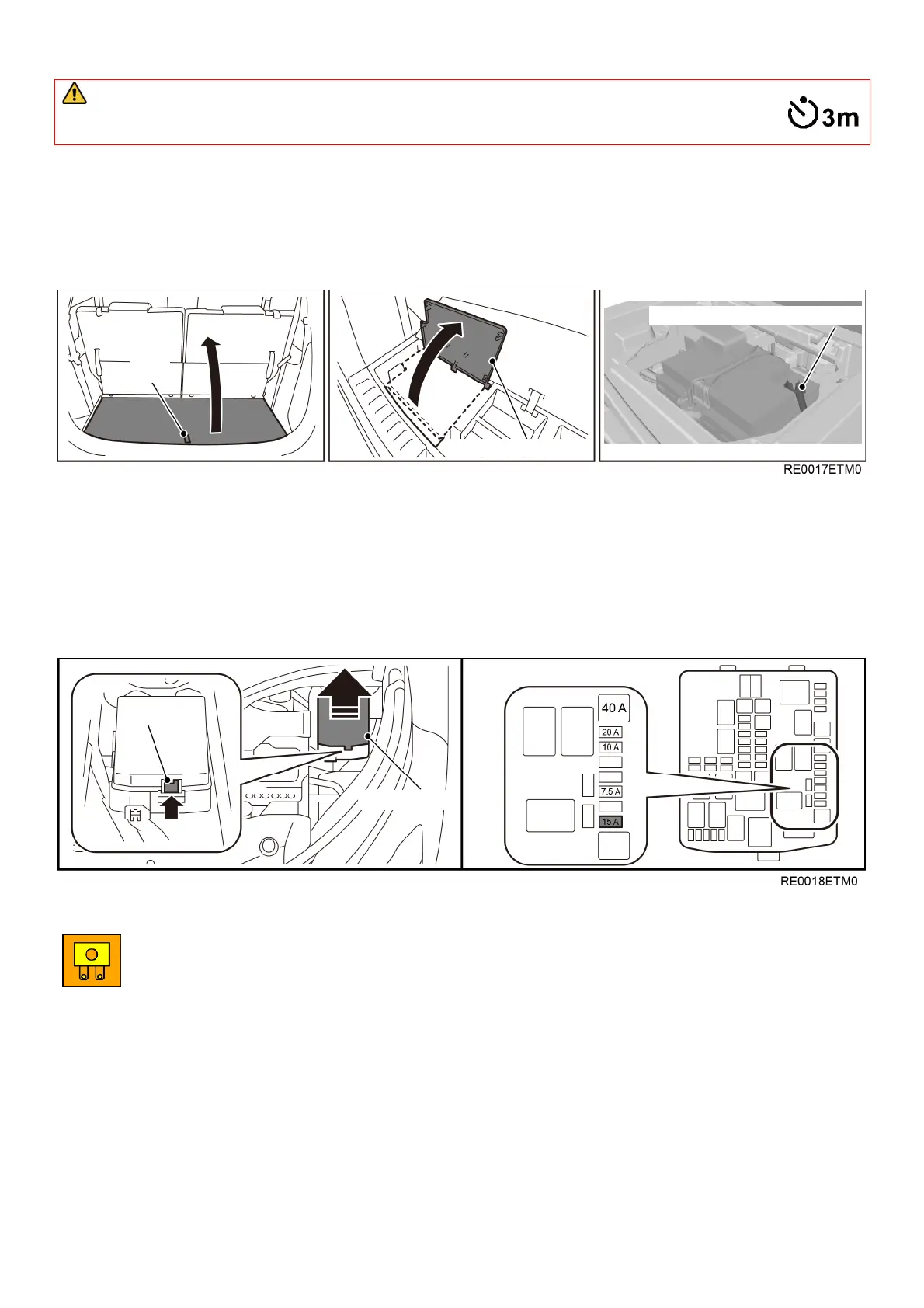

1) Lift the luggage floor board by pulling the strap upward.
2) Insert your hand in the gap and open the auxiliary battery cover.
3) Disconnect the auxiliary battery negative terminal.
6. How to disconnect the “Power unit control” fuse
Remove “Power unit control” fuse (15 A in the picture below) from the engine compartment fuse box.
If you cannot locate this fuse, remove all fuses and relays in the fuse box.
1) Press the tab of the fuse box cover.
2) Remove the fuse box cover.
3) Remove the “Power unit control” fuse (15 A).
*: Refer to “10. Explanation of pictograms used”
Strap
uxiliary battery cover
uxiliary battery negative terminal
Fuse box cover
Tab
Fuse box
