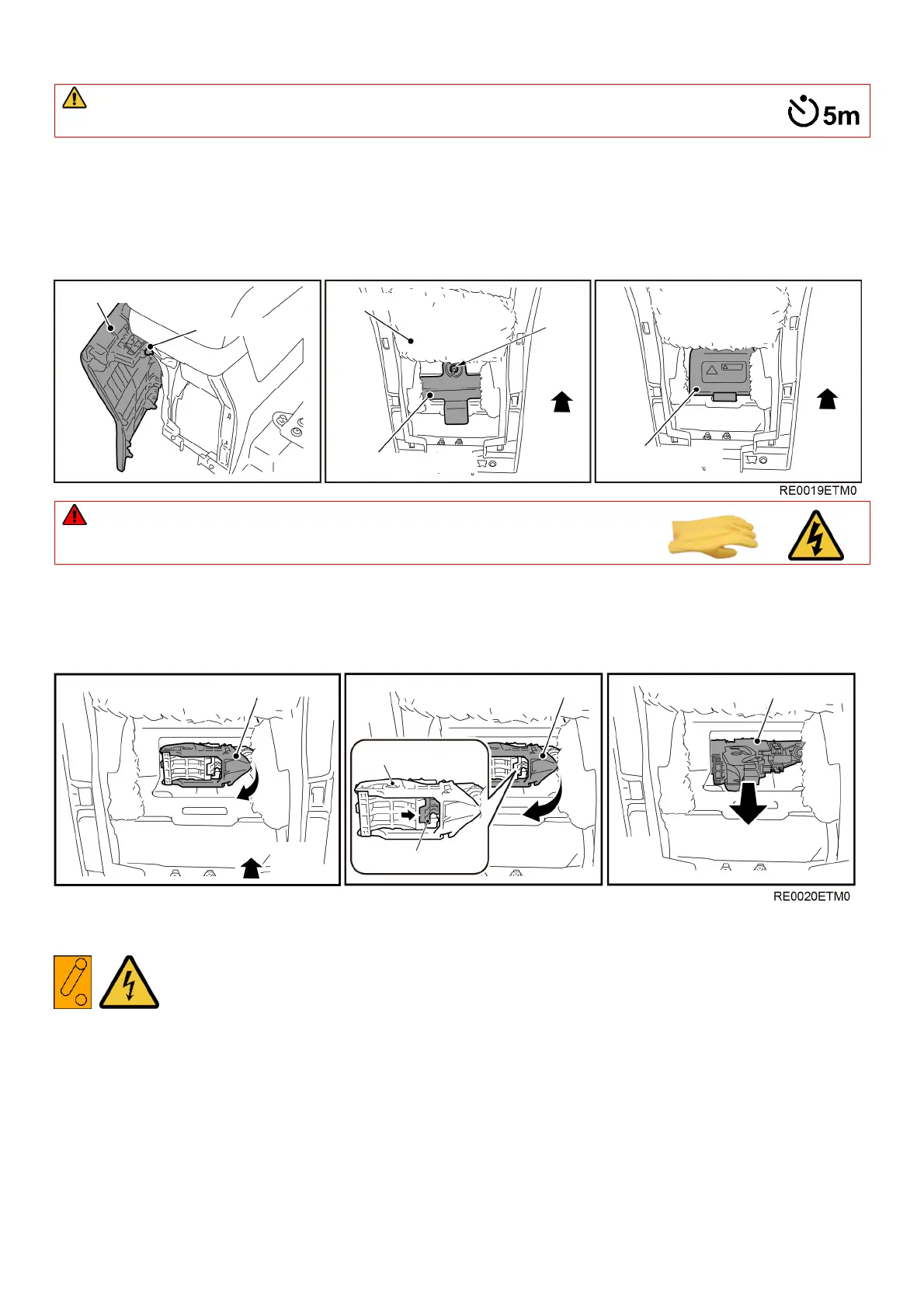

7. How to shut down high voltage (pull out the service plug)
CAUTION:
Do not remove the service plug for 5 minutes later disconnecting the 12V auxiliary battery negative terminal.
1) Wear Personal Protective Equipment (PPE) and observe the procedure below to remove the service plug.
Pulling out the service plug will shut down the high voltage circuit in the drive battery.
2) Remove the floor console cover lower and disconnect the connector.
3) Turn the floor carpet, and then remove the nut to remove the service plug protector.
4) Remove the service plug cover.
WARNING:
Always wear Personal Protective Equipment (PPE) when pulling out the service plug.
5) Wear Personal Protective Equipment (PPE) and remove the service plug.
1. Raise the service plug lever until it stops.
2. Raise the service plug lever while releasing the lever lock of the service plug.
3. Pull out the service plug.
*: Refer to “10. Explanation of pictograms used”
Floor console cover lower
Nut
Floor carpet
Service plug protector
Service plug cover
Vehicle
front
Vehicle
front
Service plug
Lever lock
Service plug lever
Vehicle
front
Service plug
Connector
Service plug lever
1
2
3
