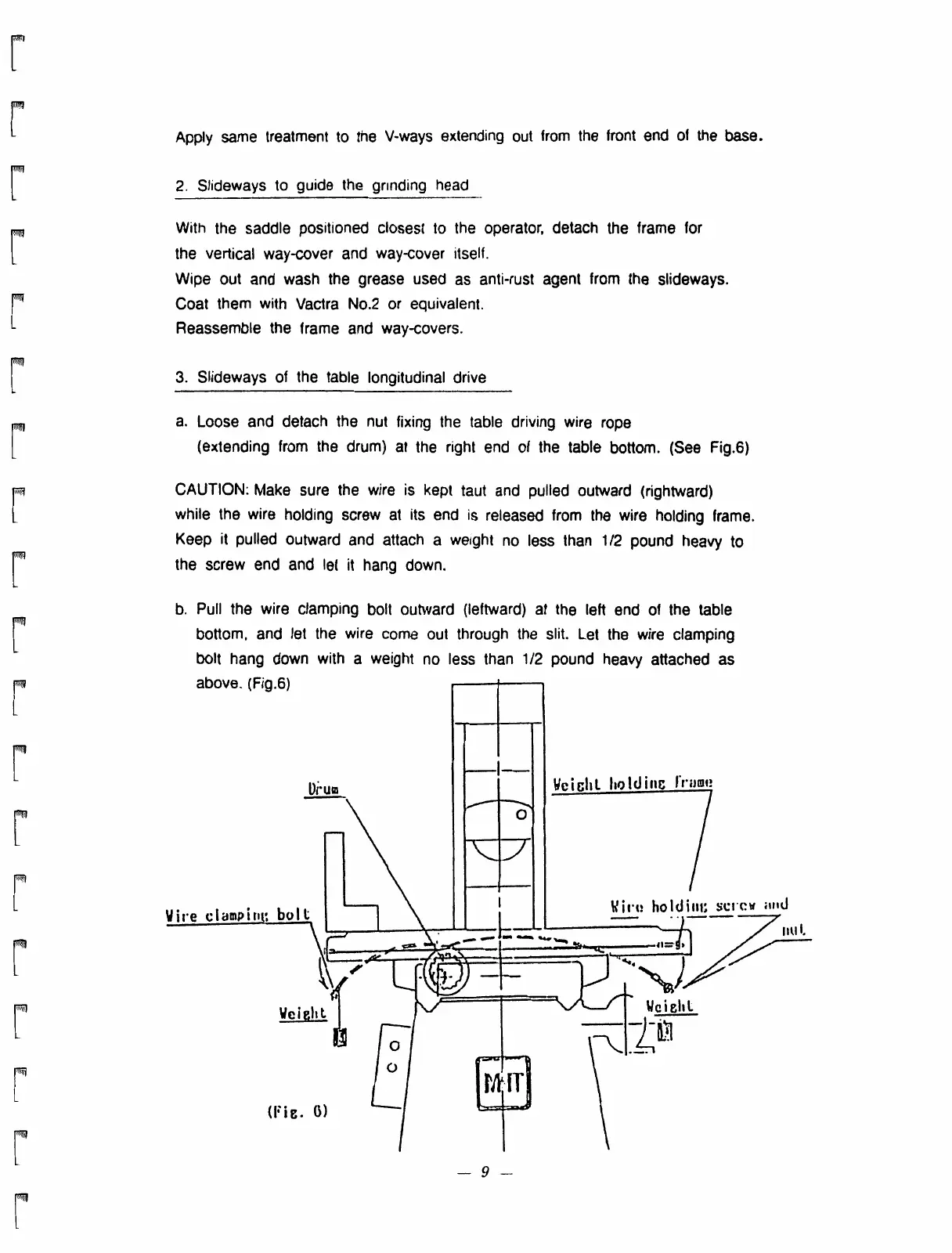

Apply same treatment to the V-ways extending out from the front end of the base.
2 Slideways to guide the grinding head
With the saddle positioned closest to the operator, detach the frame for
the vertical way-cover and way-cover itself.
Wipe Out and wash the grease used as anti-rust agent from the slideways.
Coat them with Vactra No.2 or equivalent.
Reassemble the frame and way-covers.
3. Slideways of the table longitudinal drive
a. Loose and detach the nut fixing the table driving wire rope
(extending from the drum) at the right end of the table bottom. (See Fig.6)
CAUTION: Make sure the wire is kept taut and pulled outward (rightward)
while the wire holding screw at its end is released from the wire holding frame.
Keep it pulled outward and attach a weight no less than 1/2 pound heavy to
the screw end and let it hang down.
b. Pull the wire clamping bolt outward (leftward) at the left end of the table
bottom, and let the wire come out through the slit. Let the wire clamping
bolt hang down with a weight no less than 1/2 pound heavy attached as
above. (Fig.6)
kum
Wire clamping bolt:
Weight. holding Frame
Wire holding screw ;Ind
oy
Weight.
fM
(Fig. 0)
dwidina ,•••••
i
• -
ED:
— 9 —
