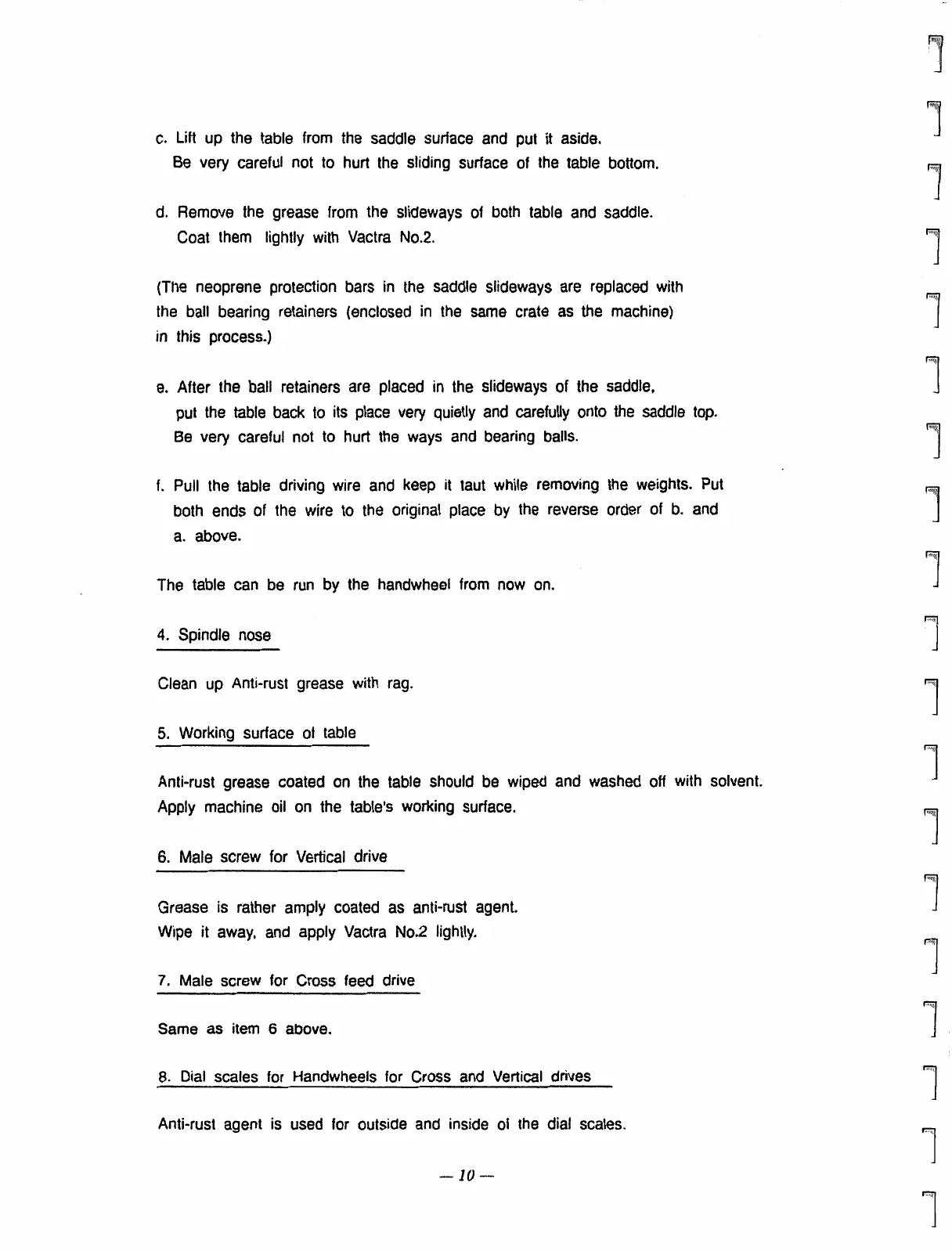

c. Lift up the table from the saddle surface and put it aside.
Be very careful not to hurt the sliding surface of the table bottom.
d. Remove the grease from the slideways of both table and saddle.
Coat them lightly with Vactra No.2.
(The neoprene protection bars in the saddle slideways are replaced with
the ball bearing retainers (enclosed in the same crate as the machine)
in this process.)
e. After the ball retainers are placed in the slideways of the saddle,
put the table back to its place very quietly and carefully onto the saddle top.
Be very careful not to hurt the ways and bearing balls.
f. Pull the table driving wire and keep it taut while removing the weights. Put
both ends of the wire to the original place by the reverse order of b. and
a. above.
The table can be run by the handwheel from now on.
4. Spindle nose
Clean up Anti-rust grease with rag.
5. Working surface of table
Anti-rust grease coated on the table should be wiped and washed off with solvent.
Apply machine oil on the table's working surface.
6. Male screw for Vertical drive
Grease is rather amply coated as anti-rust agent.
Wipe it away, and apply Vactra No2 lightly.
7. Male screw for Cross feed drive
Same as item 6 above.
8. Dial scales for Handwheels for Cross and Vertical drives
Anti-rust agent is used for outside and inside of the dial scales.
