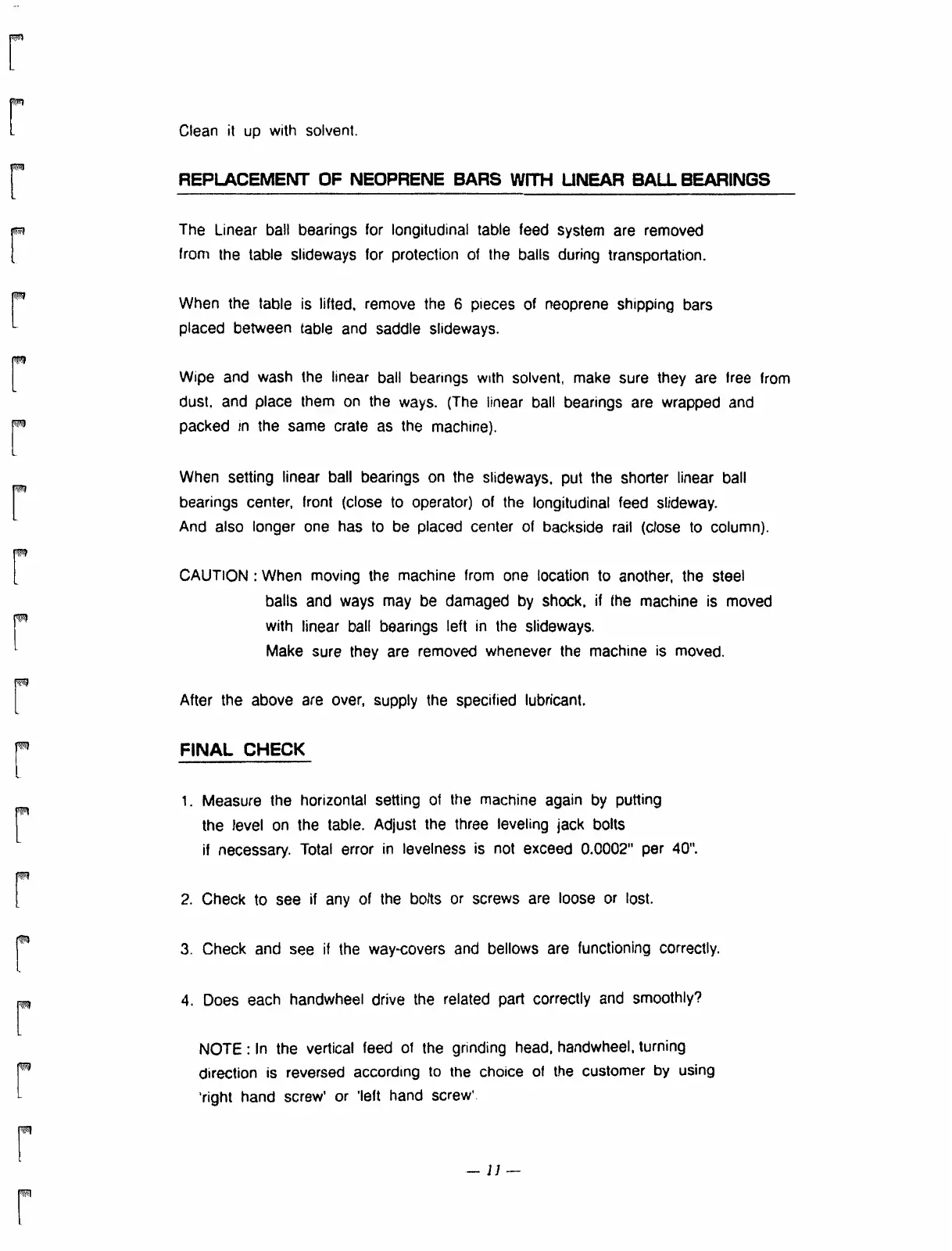

Clean it up with solvent.
REPLACEMENT OF NEOPRENE BARS WITH UNEAR BALL BEARINGS
The Linear ball bearings for longitudinal table feed system are removed
from the table slideways for protection of the balls during transportation.
When the table is lifted, remove the 6 pieces of neoprene shipping bars
placed between table and saddle slideways.
7'1
[q
Wipe and wash the linear ball bearings with solvent, make sure they are tree from
dust, and place them on the ways. (The linear ball bearings are wrapped and
packed in the same crate as the machine).
When setting linear ball bearings on the slideways. put the shorter linear ball
bearings center, front (close to operator) of the longitudinal feed slideway.
And also longer one has to be placed center of backside rail (close to column).
CAUTION : When moving the machine from one location to another, the steel
balls and ways may be damaged by shock, if the machine is moved
with linear ball bearings left in the slideways.
Make sure they are removed whenever the machine is moved.
After the above are over, supply the specified lubricant.
FINAL CHECK
1. Measure the horizontal setting of the machine again by putting
the level on the table. Adjust the three leveling jack bolts
if necessary. Total error in levelness is not exceed 0.0002" per 40".
2. Check to see if any of the bolts or screws are loose or lost.
3. Check and see if the way-covers and bellows are functioning correctly.
4. Does each handwheel drive the related part correctly and smoothly?
NOTE: In the vertical feed of the grinding head, handwheel, turning
direction is reversed according to the choice of the customer by using
'right hand screw' or 'left hand screw'.
— 11 --
