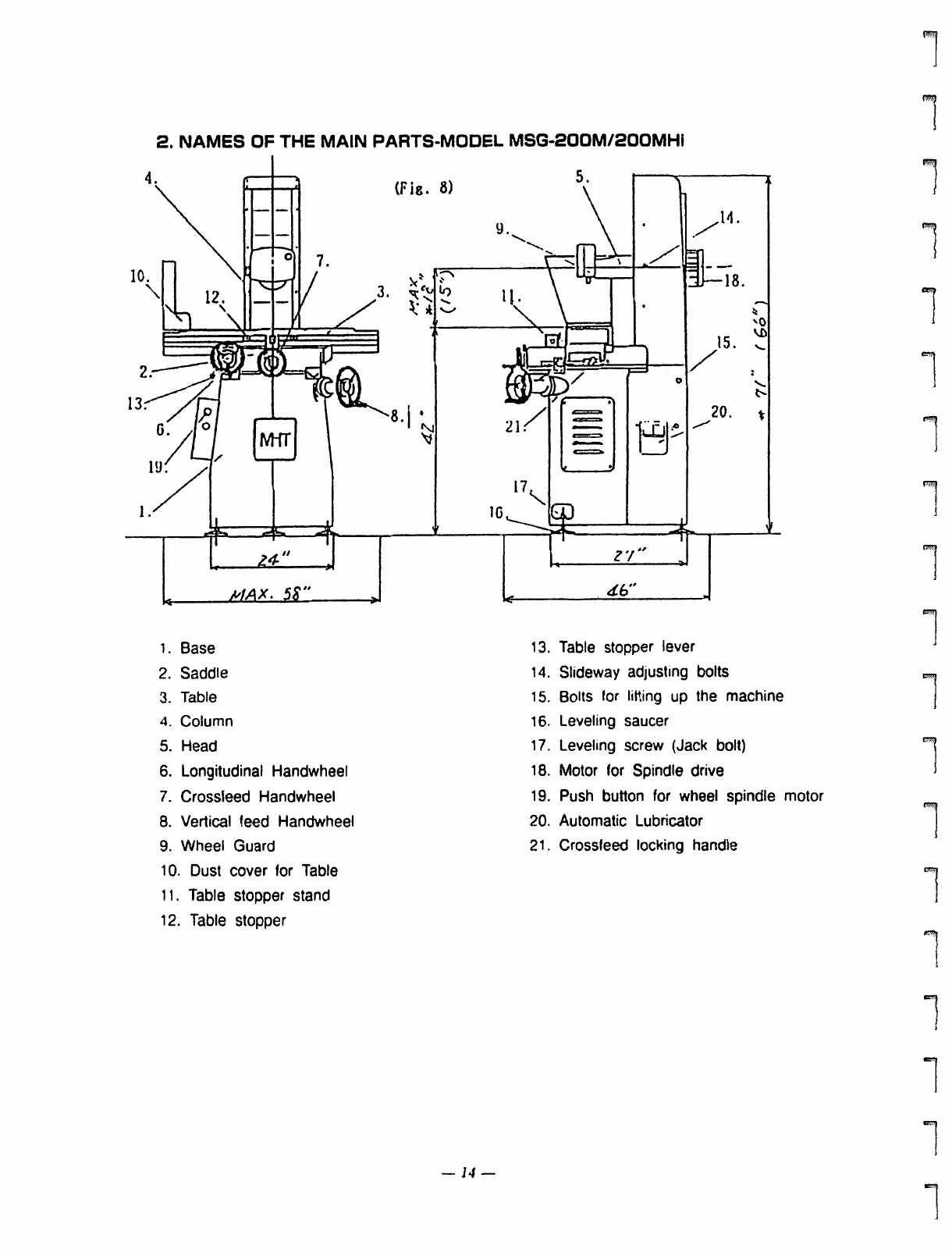

2. NAMES OF THE MAIN PARTS-MODEL MSG-200M/200MHI
r-,
24"
(Fig. 8)
9.
*0:-N
11.
k
5.
16
1_1=9,1-rt)
17
•
•=c23=b
dC072=M
••••.,•—,•
.==,•
••••••••.••
4=I•
1±1-1
14.
20.
••,13
*Mix. 58-
1. Base
2. Saddle
3. Table
4. Column
5. Head
6. Longitudinal Handwheel
7. Crossfeed Handwheel
8. Vertical feed Handwheel
9. Wheel Guard
10. Dust cover for Table
11. Table stopper stand
12. Table stopper
d6-
13. Table stopper lever
14. Slideway adjusting bolts
15. Bolts for lifting up the machine
16. Leveling saucer
17. Leveling screw (Jack bolt)
18. Motor for Spindle drive
19. Push button for wheel spindle motor
20. Automatic Lubricator
21. Crossfeed locking handle
err
fl
— 14 —
