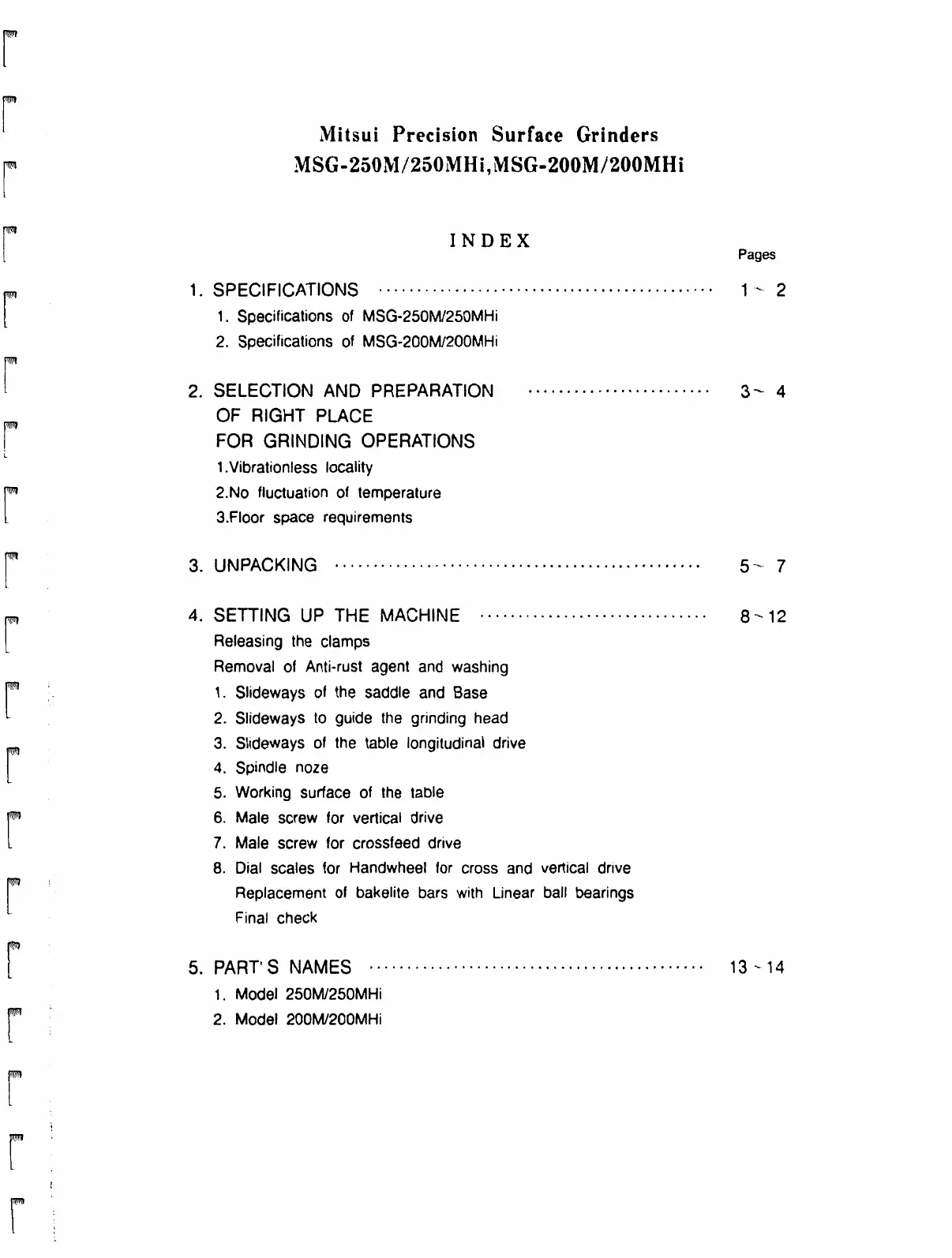

Mitsui Precision Surface Grinders
MSG-250M/250MIll,MSG-200M/200MHi
INDEX
Pages
1. SPECIFICATIONS 1 - 2
1. Specifications of MSG-250M/250MHi
2. Specifications of MSG-200M/200MHi
71
r7LI
2. SELECTION AND PREPARATION
OF RIGHT PLACE
FOR GRINDING OPERATIONS
1.Vibrationless locality
2.No fluctuation of temperature
3.Floor space requirements
3 —
3. UNPACKING 5 -
4. SETTING UP THE MACHINE 8-12
Releasing the clamps
Removal of Anti-rust agent and washing
1. Slideways of the saddle and Base
2. Slideways to guide the grinding head
3. Slideways of the table longitudinal drive
4. Spindle noze
5. Working surface of the table
6. Male screw for vertical drive
7. Male screw for crossfeed drive
8. Dial scales for Handwheel for cross and vertical drive
Replacement of bakelite bars with Linear ball bearings
Final check
5. PART' S NAMES
1. Model 250M/250MHi
2. Model 200M/200MHi
13 - 14
