3. By the spiral bevel gears and ball bearings of this parts, the light driving
of feed without and play and noise is completely assured. Also, the below
around the male screw doubly protects the feed from the dust, and there is
scarcely any damage due to the dust.

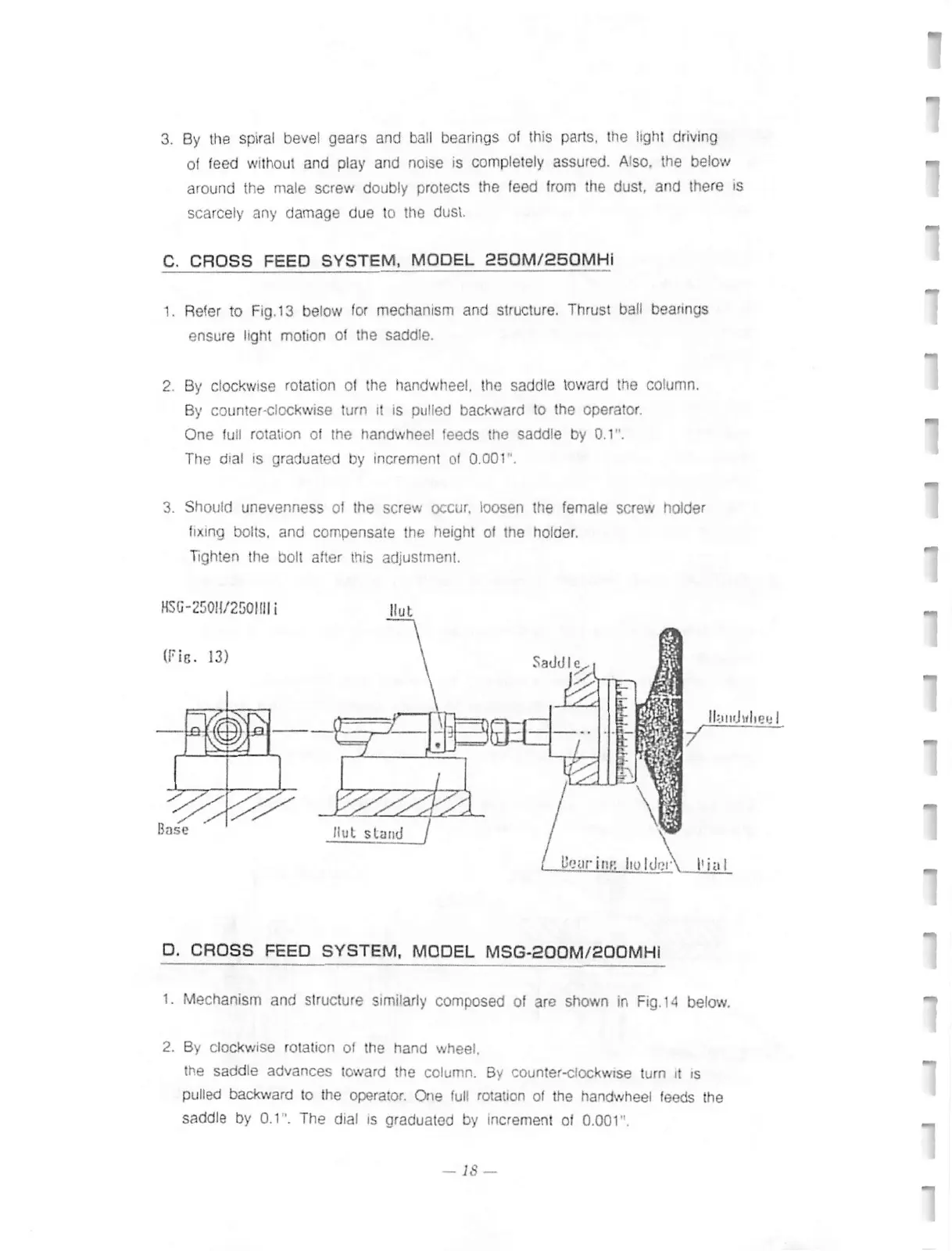

C. CROSS FEED SYSTEM, MODEL 250M/250MHi
1. Refer to Fig.13 below for mechanism and structure. Thrust ball bearings
ensure light motion of the saddle.
2. By clockwise rotation of the handwheel, the saddle toward the column.
By counter-clockwise turn it is pulled backward to the operator.
One full rotation of the handwheel feeds the saddle by 0.1“.
The dial is graduated by increment of 0.001".
3. Should unevenness of the screw occur, loosen the female screw holder
fixing bolts, and compensate the height of the holder.
Tighten the bolt after this adjustment.
HSG-25011/250HHi
(Fla. 13)
Base
Hut,
Hut s Land
Sadd I e
/Uquriug huld hal
0. CROSS FEED SYSTEM, MODEL MSG-200M/200MHI
1. Mechanism and structure similarly composed of are shown in Fig.14 below.
2. By clockwise rotation of the hand wheel,
the saddle advances toward the column. By counter-clockwise turn it is
pulled backward to the operator. One full rotation of the handwheel feeds the
saddle by 0.1". The dial is graduated by increment of 0.001".
=IN
7
— Is —
