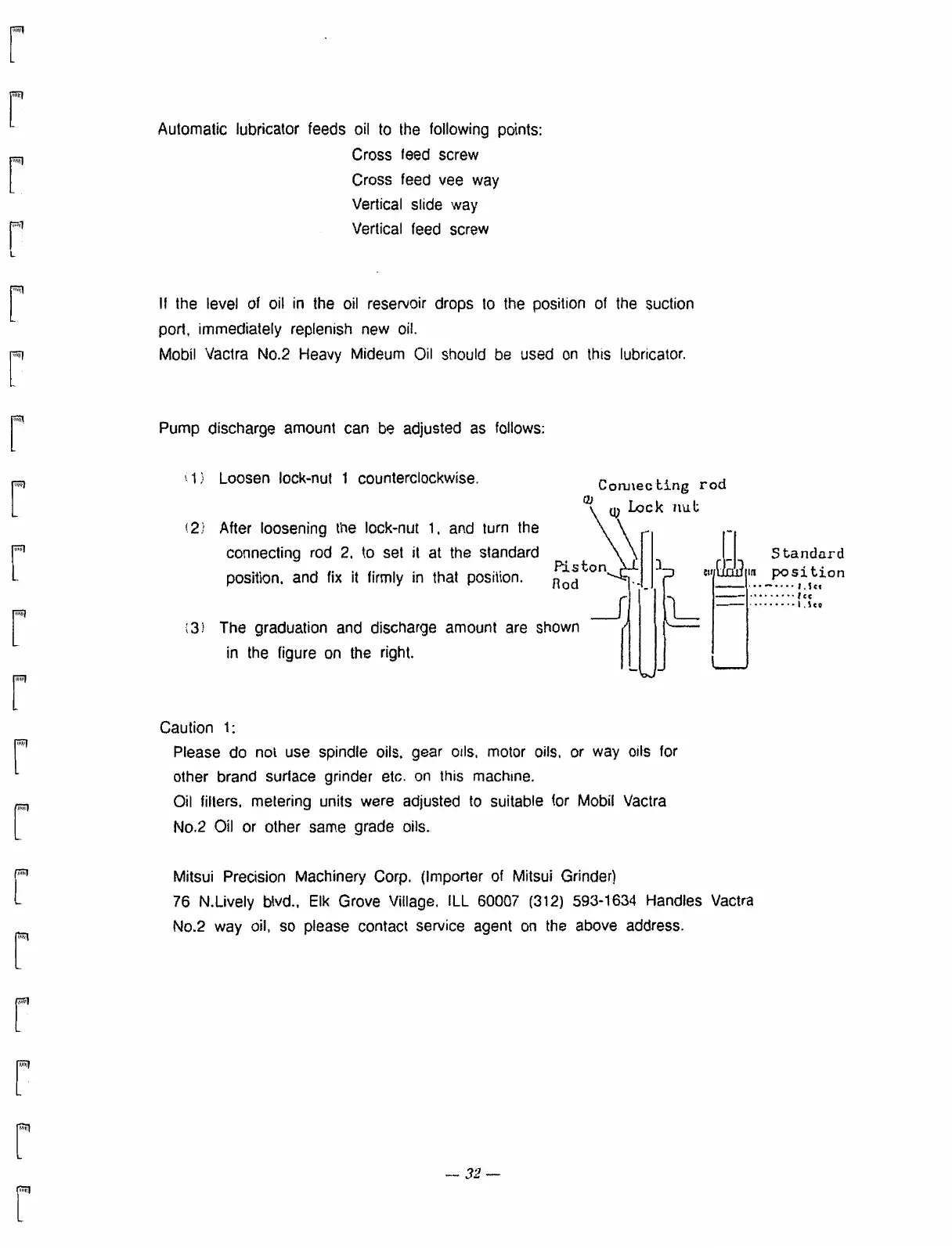

Automatic lubricator feeds oil to the following points:
Cross feed screw
Cross feed vee way
Vertical slide way
Vertical feed screw
If the level of oil in the oil reservoir drops to the position of the suction
port, immediately replenish new oil.
Mobil Vactra No.2 Heavy Mideum Oil should be used on this lubricator.
Pump discharge amount can be adjusted as follows:
i 1') Loosen lock-nut 1 counterclockwise.
( 2'1 After loosening the lock-nut 1, and turn the
connecting rod 2. to set it at the standard
Connecting rod
a)
Piston
position, and fix it firmly in that position. Rod
:3) The graduation and discharge amount are shown
in the figure on the right.
w Lock nut
\[
Caution 1:
Please do not use spindle oils, gear oils, motor oils, or way oils for
other brand surface grinder etc. on this machine.
Oil fillers, metering units were adjusted to suitable for Mobil Vactra
No.2 Oil or other same grade oils.
Cu
Standard
U' position
'cc
i.s..
Mitsui Precision Machinery Corp. (Importer of Mitsui Grinder)
76 N.Lively blvd., Elk Grove Village. ILL 60007 (312) 593-1634 Handles Vactra
No.2 way oil, so please contact service agent on the above address.
