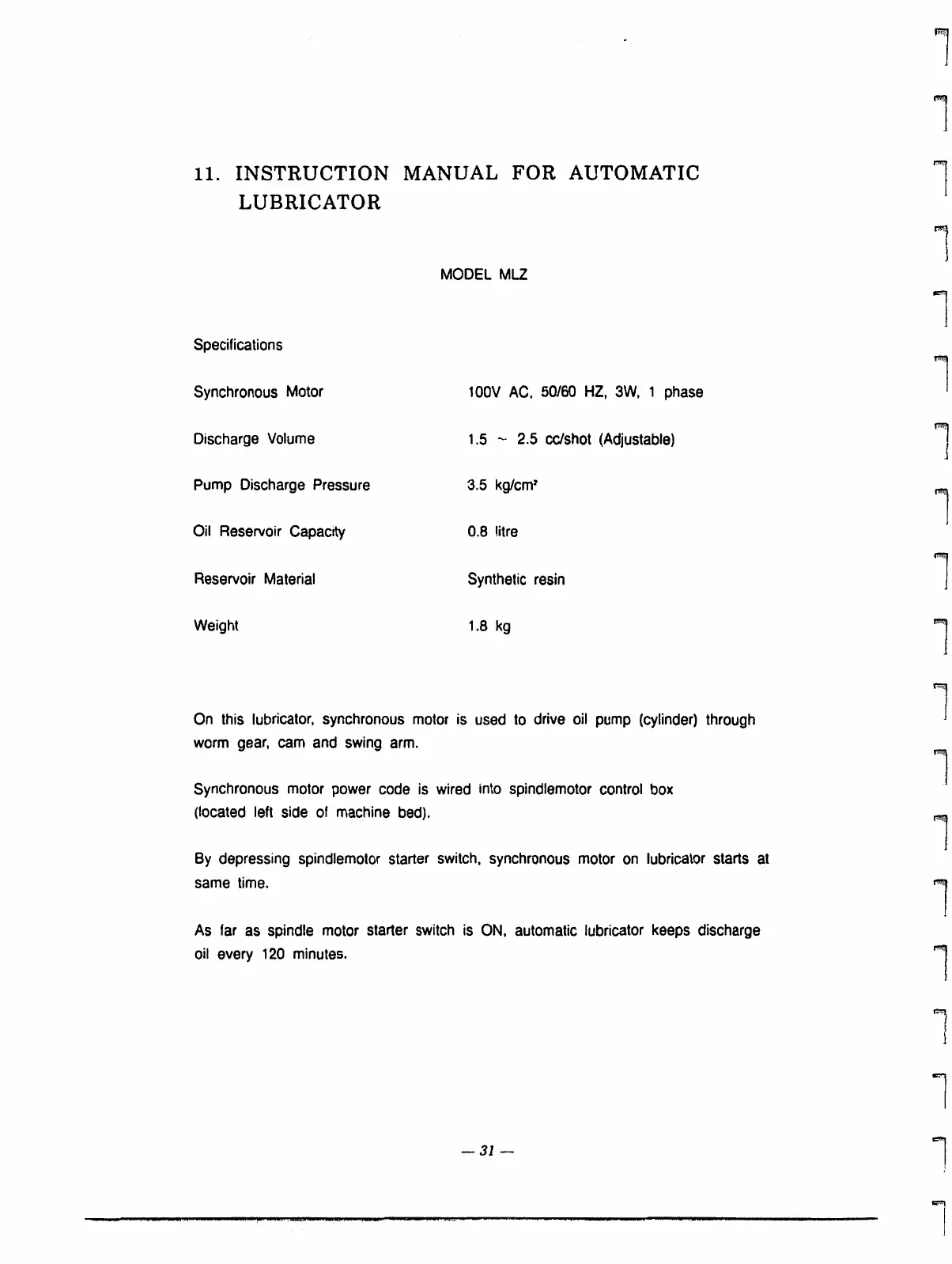

11. INSTRUCTION MANUAL FOR AUTOMATIC
LUBRICATOR
MODEL MLZ
Specifications
Synchronous Motor
Discharge Volume
Pump Discharge Pressure
Oil Reservoir Capacity
Reservoir Material
Weight
100V AC. 50/60 HZ, 3W, 1 phase
1.5 — 2.5 Pc/shot (Adjustable)
3.5 kg/cm'
0.8 litre
Synthetic resin
1.8 kg
On this lubricator, synchronous motor is used to drive oil pump (cylinder) through
worm gear, cam and swing arm.
Synchronous motor power code is wired into spindlemotor control box
(located left side of machine bed).
By depressing spindlemotor starter switch, synchronous motor on lubricator starts at
same time.
As far as spindle motor starter switch is ON, automatic lubricator keeps discharge
oil every 120 minutes.
