Refer to and follow the same procedures as shown in par. 3.
a-f. pages 9 and 10. Clean both the ways and balls and coat them with
fresh grease.

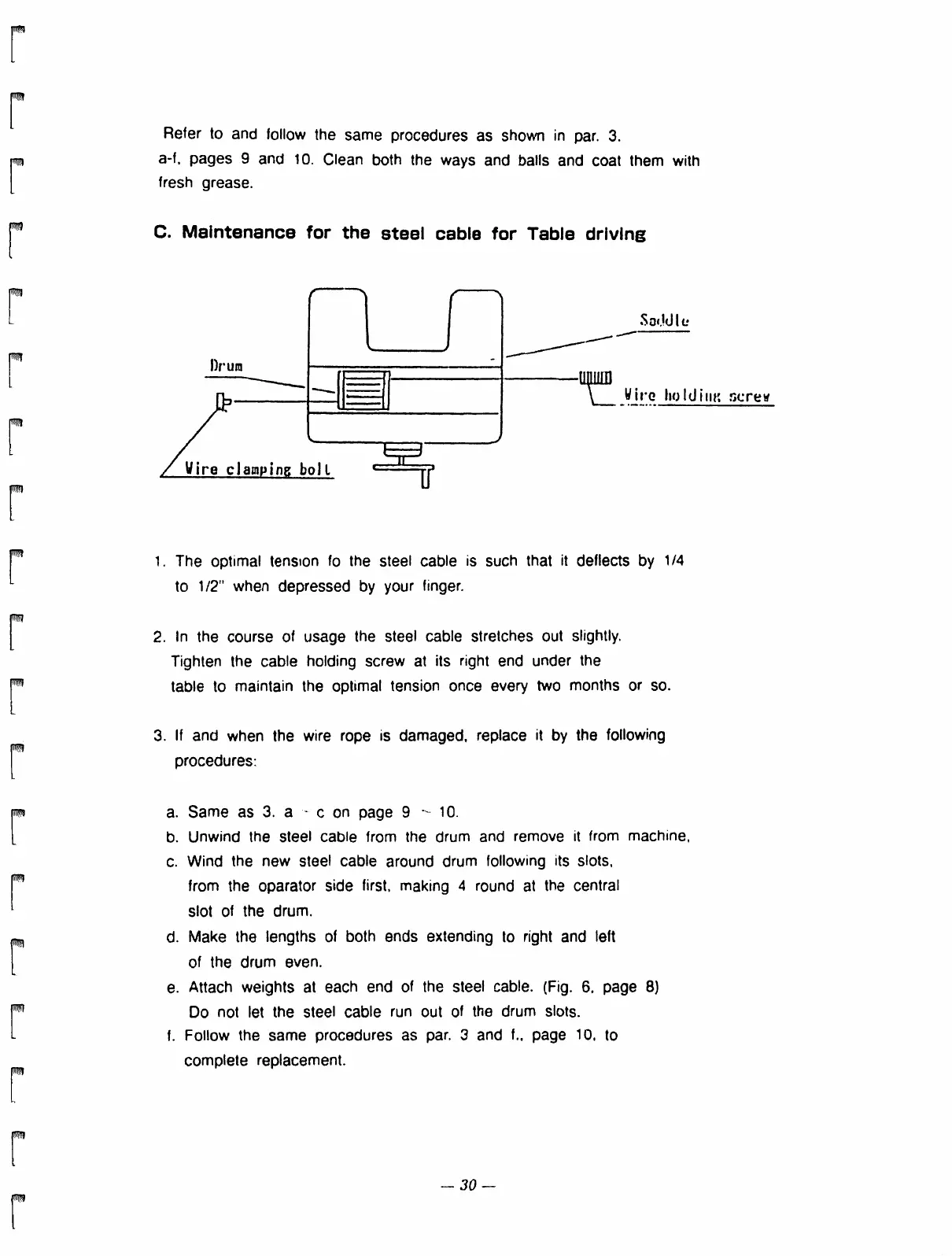

C. Maintenance for the steel cable for Table driving
Drum
II
Wire clam in bolt
Saddle
Ut. Wire holdien screw
1. The optimal tension fo the steel cable is such that it deflects by 1/4
to 1/2" when depressed by your finger.
2. In the course of usage the steel cable stretches out slightly.
Tighten the cable holding screw at its right end under the
table to maintain the optimal tension once every two months or so.
3. If and when the wire rope is damaged, replace it by the following
procedures:
a. Same as 3. a - c on page 9 --- 10.
b. Unwind the steel cable from the drum and remove it from machine,
c. Wind the new steel cable around drum following its slots,
from the oparator side first, making 4 round at the central
slot of the drum.
d. Make the lengths of both ends extending to right and left
of the drum even.
e. Attach weights at each end of the steel cable. (Fig. 6, page 8)
Do not let the steel cable run Out of the drum slots.
1. Follow the same procedures as par. 3 and f.. page 10, to
complete replacement.
