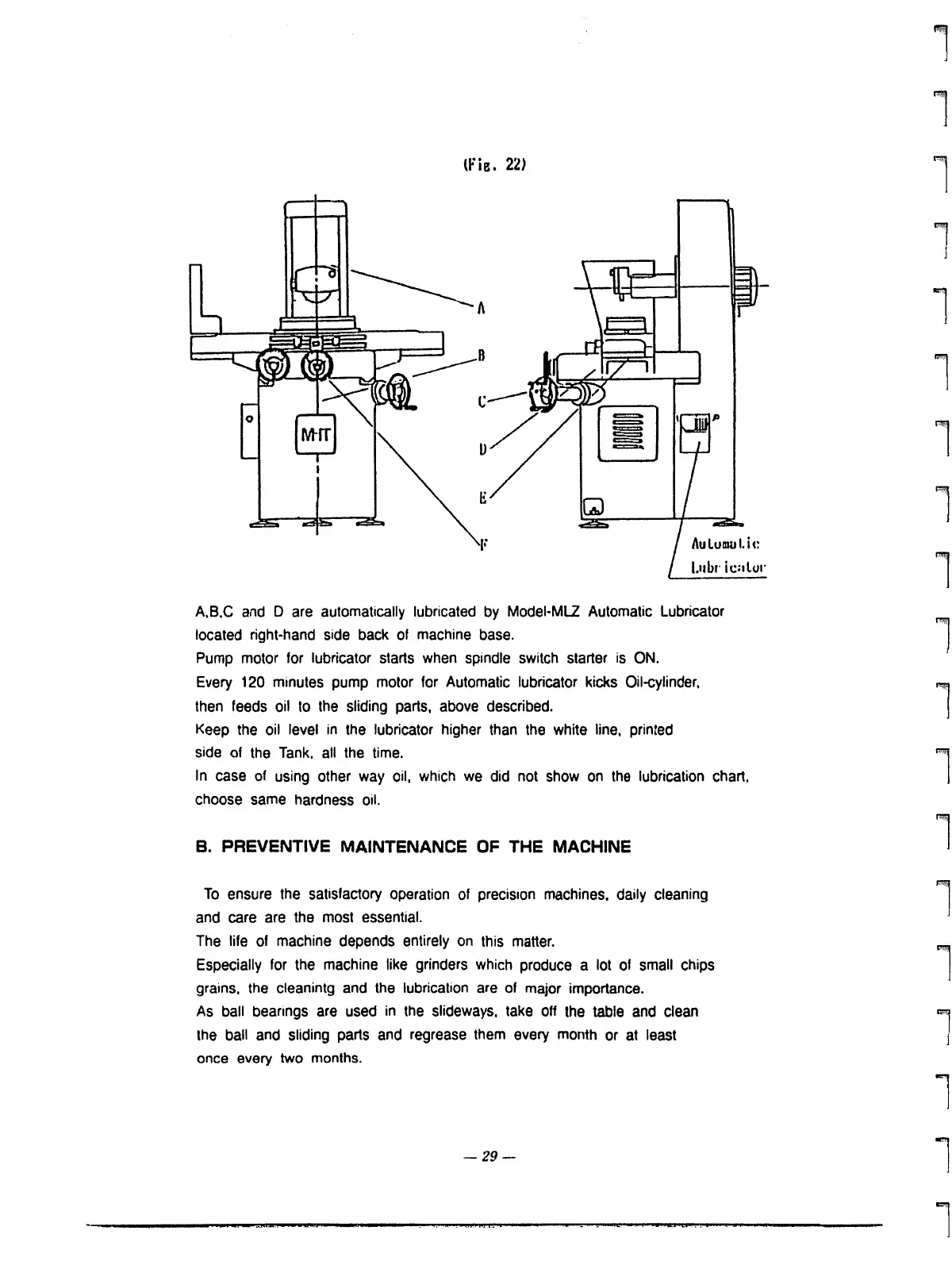

(Fie. 22)
Au It= I. i t:
Imbr icatur
A,B.0 and D are automatically lubricated by Model-MU Automatic Lubricator
located right-hand side back of machine base.
Pump motor for lubricator starts when spindle switch starter is ON.
Every 120 minutes pump motor for Automatic lubricator kicks Oil-cylinder,
then feeds oil to the sliding parts, above described.
Keep the oil level in the lubricator higher than the white line, printed
side of the Tank, all the time.
In case of using other way oil, which we did not show on the lubrication chart,
choose same hardness oil.
B. PREVENTIVE MAINTENANCE OF THE MACHINE
To ensure the satisfactory operation of precision machines. daily cleaning
and care are the most essential.
The life of machine depends entirely on this matter.
Especially for the machine like grinders which produce a lot of small chips
grains, the cleanintg and the lubrication are of major importance.
As ball bearings are used in the slideways, take off the table and clean
the ball and sliding parts and regrease them every month or at least
once every two months.
— 29 —
