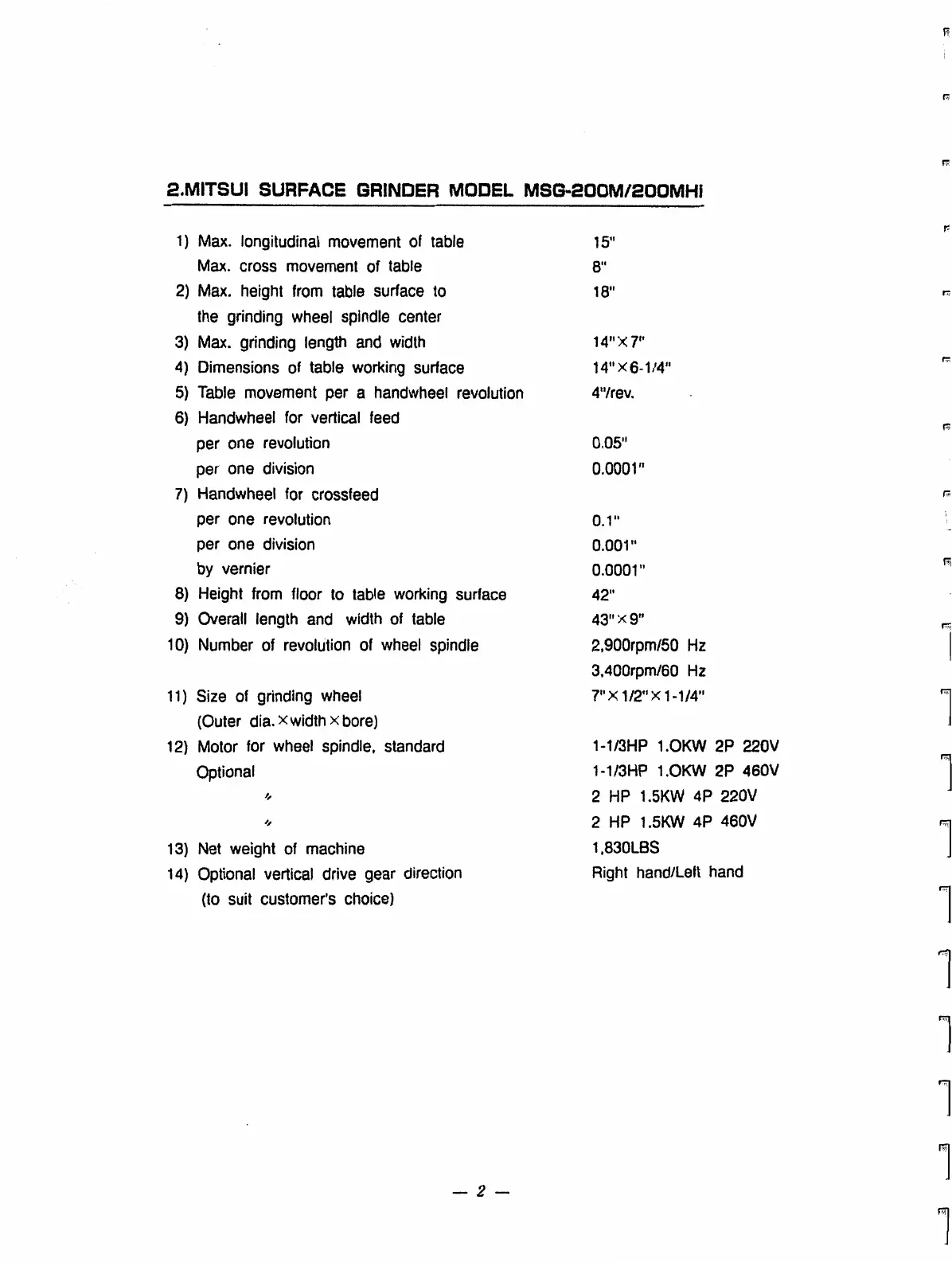

2.MITSUI SURFACE GRINDER MODEL MSG-200M/200MHI
1) Max. longitudinal movement of table 15"
Max. cross movement of table 8"
2) Max. height from table surface to 18"
the grinding wheel spindle center
3) Max. grinding length and width 14—x7"
4) Dimensions of table working surface 14"X6-1/4"
5) Table movement per a handwheel revolution 4"/rev.
6) Handwheel for vertical feed
per one revolution 0.05"
per one division 0.0001"
7) Handwheel for crossfeed
per one revolution 0.1"
per one division 0.001"
by vernier 0.0001"
8) Height from floor to table working surface 42"
9) Overall length and width of table 43" x 9"
10) Number of revolution of wheel spindle 2,900rpm/50 Hz
3,400rpm/60 Hz
11) Size of grinding wheel 7" x 1/2" x 1-1/4"
(Outer dia. X width )< bore)
12) Motor for wheel spindle, standard 1-1/3HP 1.OKW 2P 220V
Optional 1-1/3HP 1.OKW 2P 460V
2 HP 1.5K1N 4P 220V
2 HP 1.5KW 4P 460V
13) Net weight of machine 1,830LBS
14) Optional vertical drive gear direction Right hand/Left hand
(to suit customer's choice)
