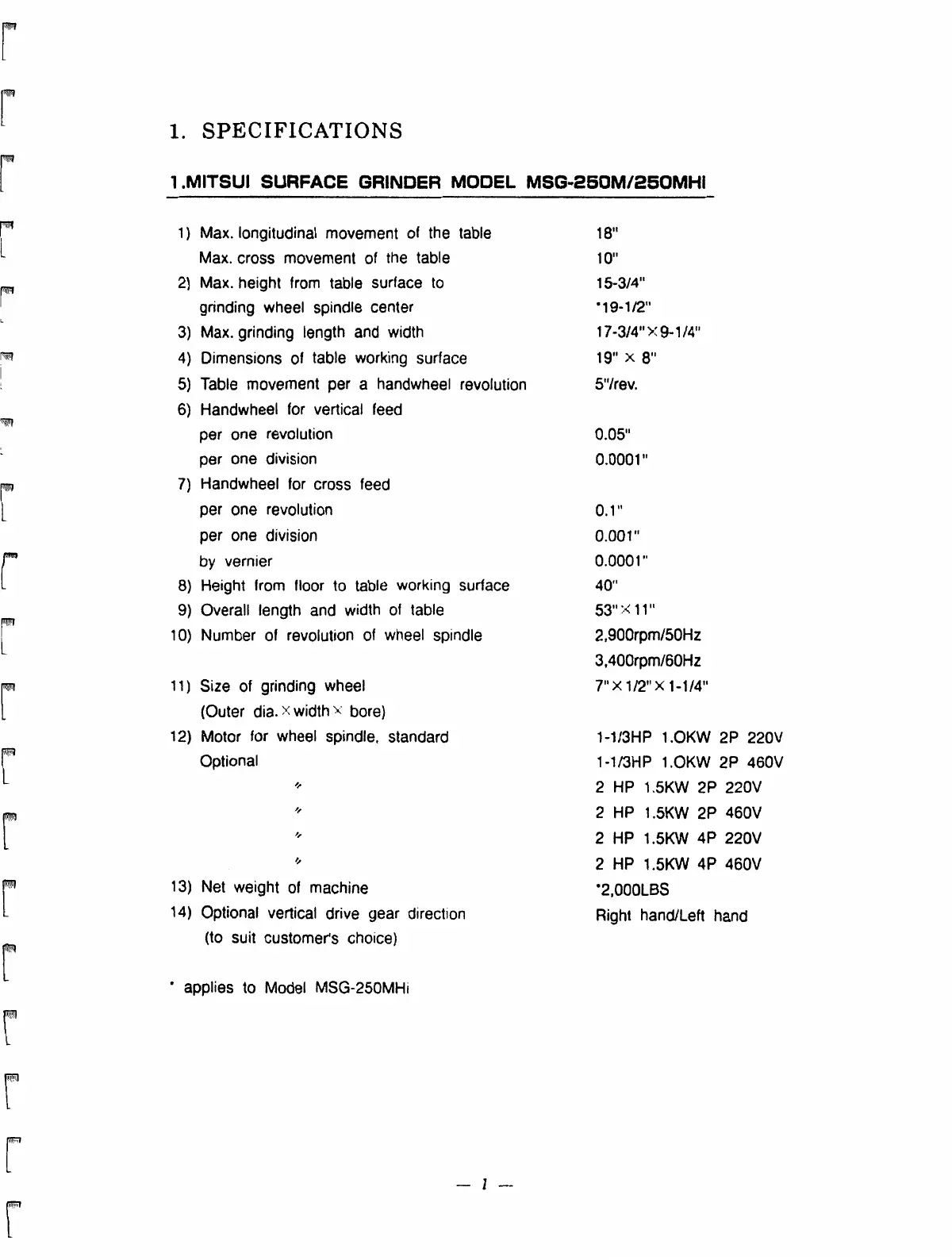

1. SPECIFICATIONS
.MITSUI SURFACE GRINDER MODEL MSG-250M/250MHI
1) Max. longitudinal movement of the table 18"
Max. cross movement of the table 10"
2) Max. height from table surface to 15-3/4"
grinding wheel spindle center 19-1/2"
3) Max. grinding length and width 17-3/4" x 9-1/4"
4) Dimensions of table working surface 19" x 8"
5) Table movement per a handwheel revolution 5"/rev.
6) Handwheel for vertical feed
per one revolution 0.05"
per one division 0.0001"
7) Handwheel for cross feed
per one revolution 0.1"
per one division 0.001"
by vernier 0.0001"
8) Height from floor to table working surface 40"
9) Overall length and width of table 53" x 11"
10) Number of revolution of wheel spindle 2,900rpm/50Hz
3,400rpm/60Hz
11) Size of grinding wheel 7" x1/2" x 1-1/4"
(Outer dia. X width bore)
12) Motor for wheel spindle, standard 1-1/3HP 1.OKW 2P 220V
Optional 1-1/3HP 1.OKW 2P 460V
2 HP 1.5KW 2P 220V
2 HP 1.5KW 2P 460V
2 HP 1.5KW 4P 220V
2 HP 1.5KW 4P 460V
13) Net weight of machine 2,000LBS
14) Optional vertical drive gear direction Right hand/Left hand
(to suit customers choice)
• applies to Model MSG-250MHi
- I -
