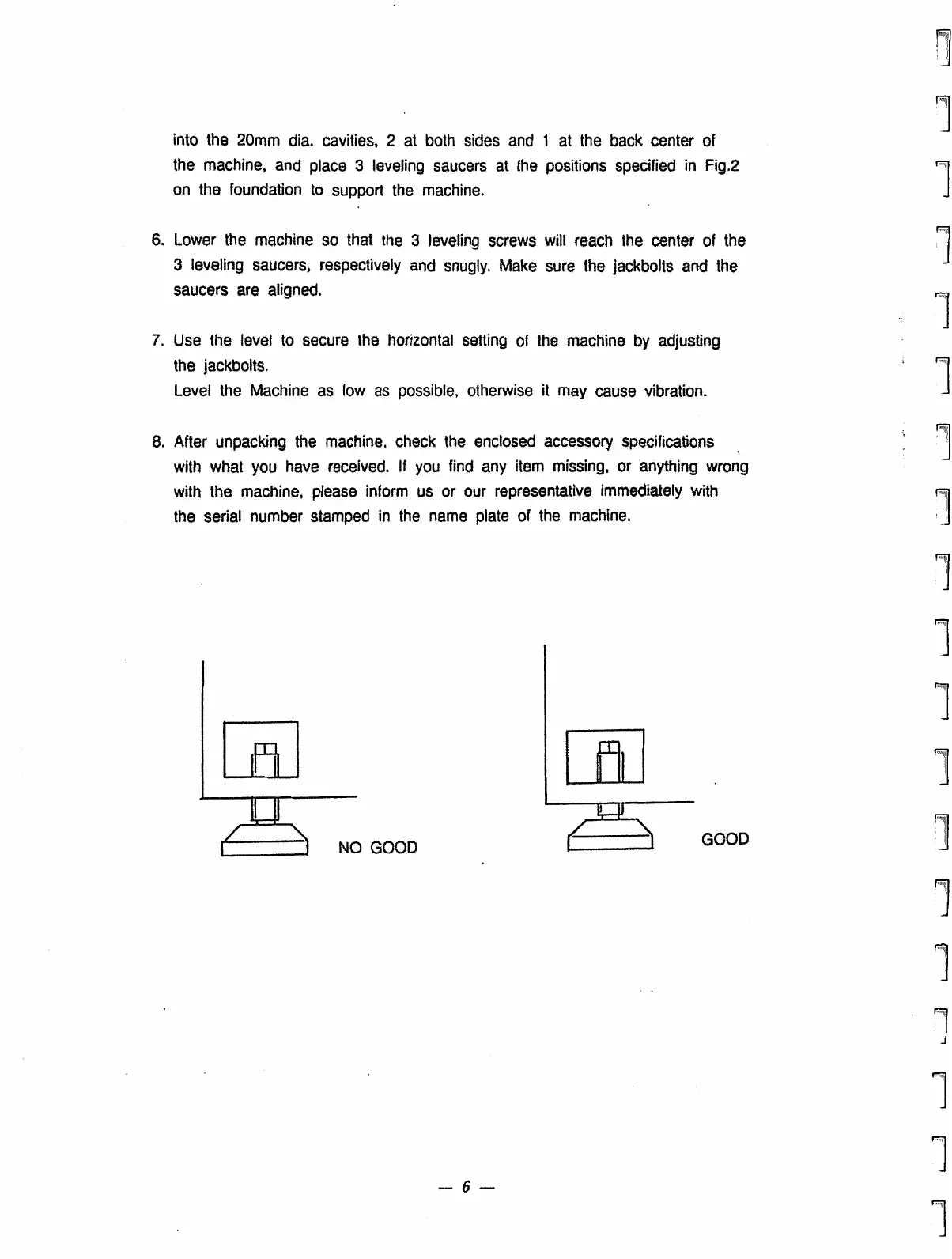

into the 20mm dia. cavities, 2 at both sides and 1 at the back center of
the machine, and place 3 leveling saucers at the positions specified in Fig.2
on the foundation to support the machine.
6. Lower the machine so that the 3 leveling screws will reach the center of the
3 leveling saucers, respectively and snugly. Make sure the jackbolts and the
saucers are aligned.
7. Use the level to secure the horizontal setting of the machine by adjusting
the jackbolts.
Level the Machine as low as possible, otherwise it may cause vibration.
8. After unpacking the machine, check the enclosed accessory specifications
with what you have received. If you find any item missing, or anything wrong
with the machine, please inform us or our representative immediately with
the serial number stamped in the name plate of the machine.
NO GOOD
GOOD
