Mizerak P5223W - Table Assembly - Rails, Pockets, and Final Connection; Upper Rails, Aprons, and Pockets

STEP 6:
P9
P10
NOTE:
All parts are
upside down
H8
P11
NOTE:
Edge of Rail and
Edge of Corner Cap
must be flush.

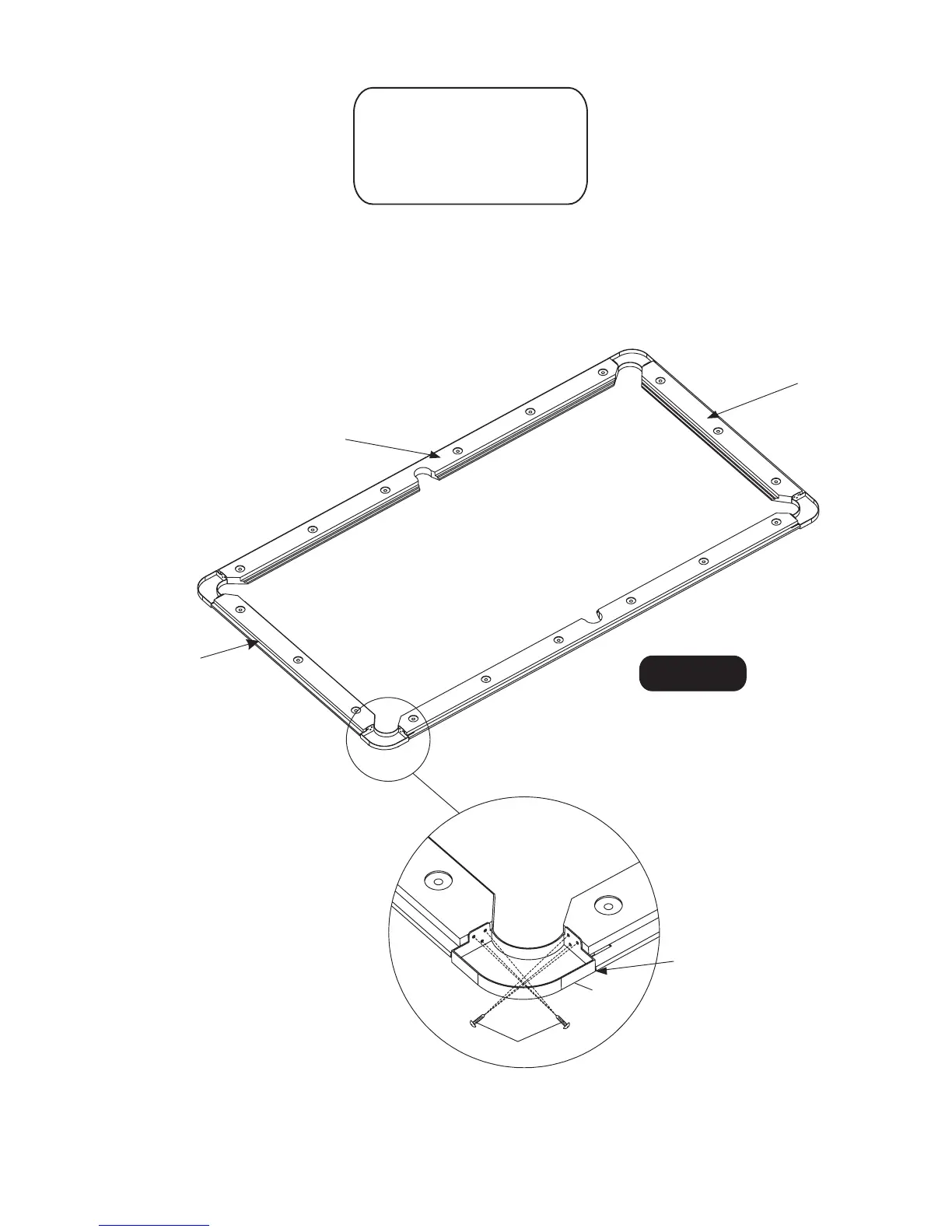

On a clean level surface, lay each P9 Side Top Rail and P10 End Top Rail face down as shown in
Figure 15.Next,lay each P11 Corner Cap face down and attach using H8 Screws (see inset) .
12
©
2012 Escalade Sports
For Customer Service Call 1-866-556-2757
PARTS REQUIRED:
24 pcs - H8 Screw
2 pcs - P9 Side Top Rail
2 pcs - P10 End Top Rail
4 pcs - P11 Corner Cap
Figure 15
