Mizerak P5223W - Parts Identification; Hardware and Fastener Identification

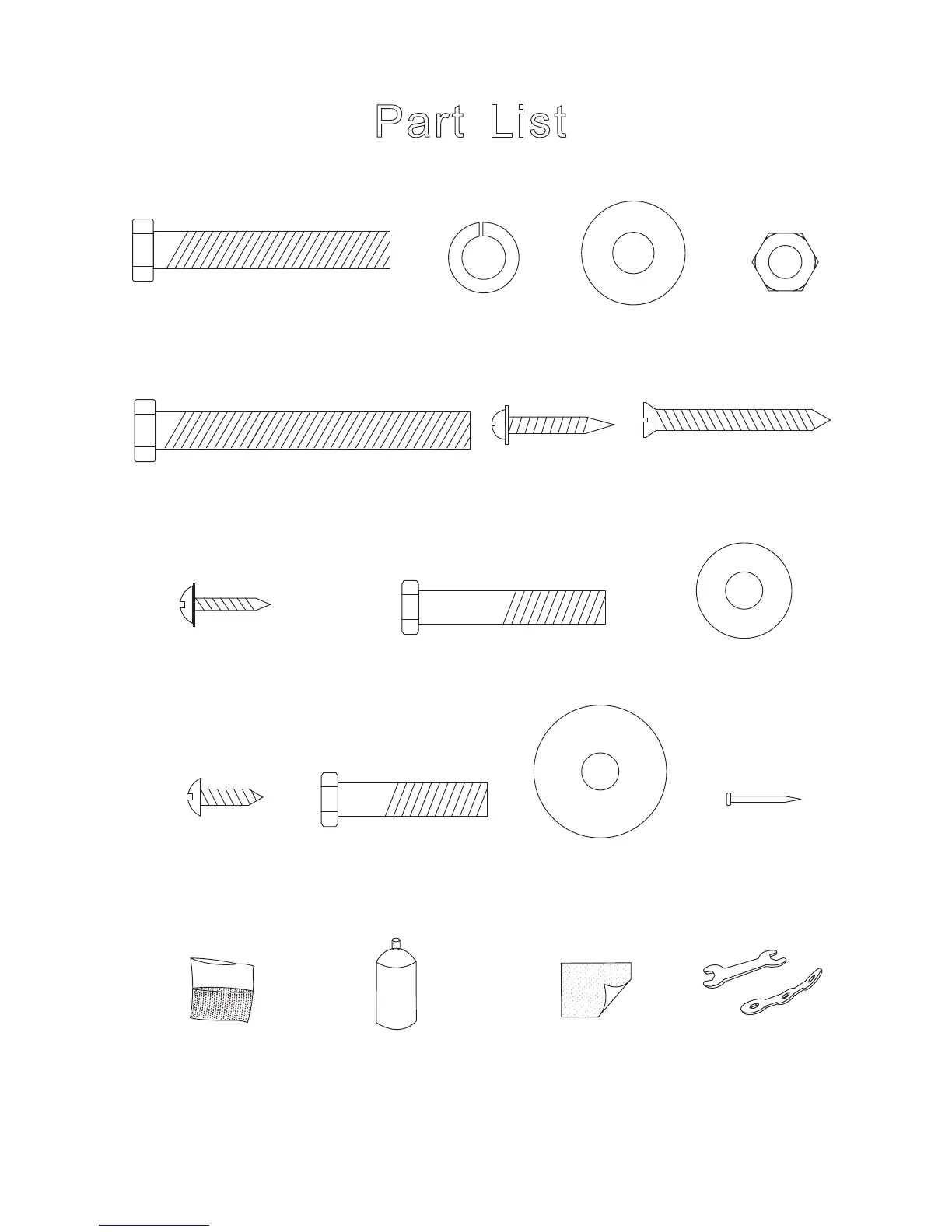

Part List
H14 - Pocket Nail
24 Pcs
T1-Grout Kit
1 Pc
1 Pc
1 Pc
T2-Spray Adhesive
T3-Sand Paper
H5 - 3/8” x 3” Bolt
8 Pcs
H7 - F5 x 1-3/4”
Flat Head Screw
16 Pcs
8 Pcs
H1 - 3/8” x 2-1/4” Bolt
Washer 16 Pcs
H2 - 3/8” Spring
32 Pcs
H3 - 3/8” x 25mm Washer
H12 - 5/16” x 1-1/2” Bolt
18 Pcs
H13 - 5/16” x 32 Washer
18 Pcs
H8 - WP/3 x 18mm
Round Washer Head Screw
24 Pcs
H11 - T4 x 15mm
Round Head Screw
24 Pcs
H9 - 5/16” x 1-3/4” Bolt
12 Pcs
H10 - 5/16” x 23mm
Washer 12 pcs
16 Pcs
H4 - 3/8” Hex Nut
H6 - WP/4 x 1”
Round Washer Head Screw
8 Pcs
©
2012 Escalade Sports
For Customer Service Call 1-866-556-2757
3
All Right Reserved.
T4-Wrench
1 Set
(To Scale)
