Swash
Parallel
Platform of the swash
Extension line of the helicopter
Servo
connector

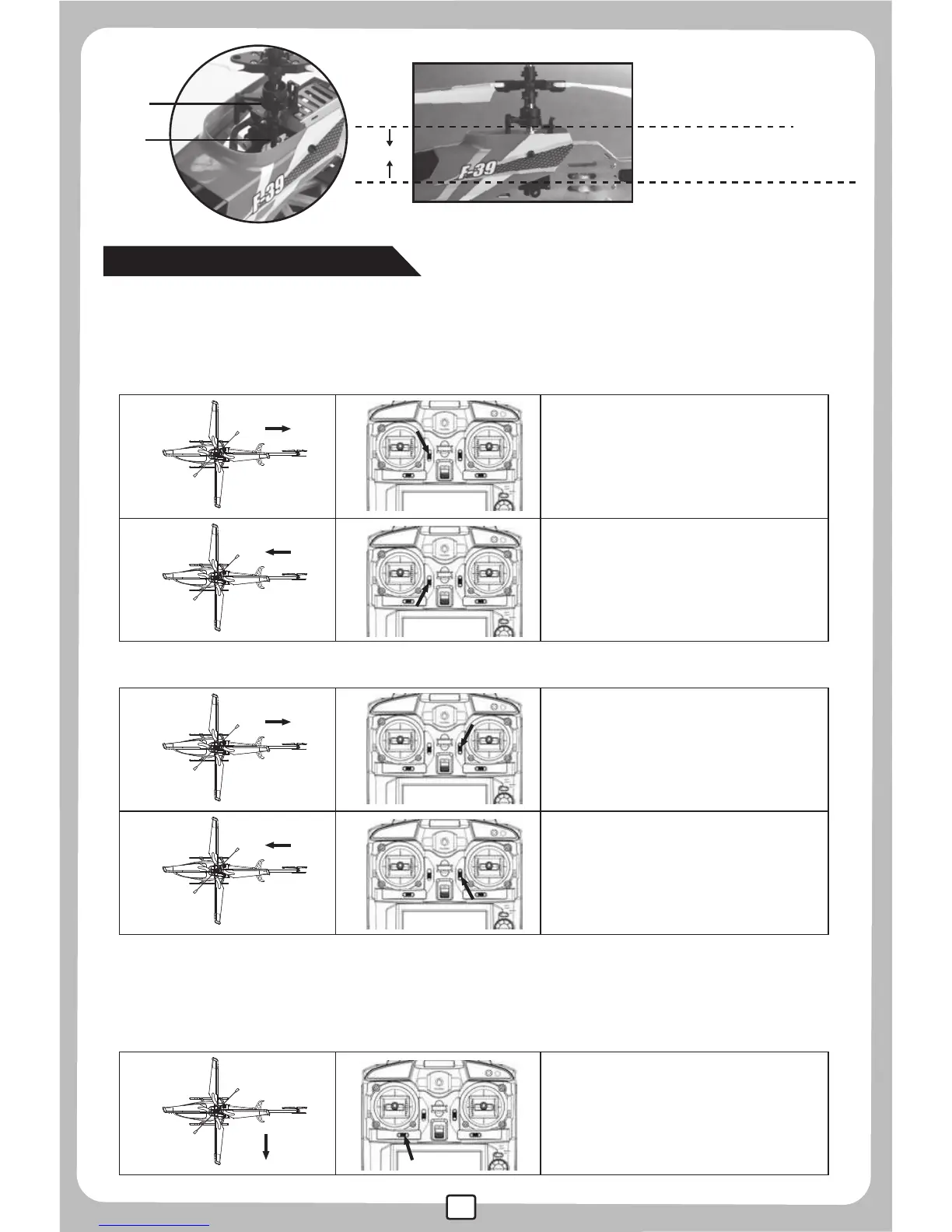

Trimmer Functions
If the helicopter keeps moving forward/backward even there is no control
signal given, users may adjust the elevator trim to keep the helicopter
balanced.
STICK MOD 1 or 3:
If the helicopter keeps moving
backward, push up Trimmer A
until it gains balance.
If the helicopter keeps moving
forward, push down Trimmer A
until it gains balance.
STICK MOD 2 or 4:
If the helicopter keeps moving
backward, push up Trimmer D
until it gains balance.
If the helicopter keeps moving
forward, push down Trimmer D
until it gains balance.
STICK MOD 2 or 3:
If the helicopter keeps moving leftward/rightward even there is no control
signal given, users may adjust the aileron trim to keep the helicopter
balanced.
If the helicopter keeps moving
leftward, turn right of Trimmer B
until it gains balance.
