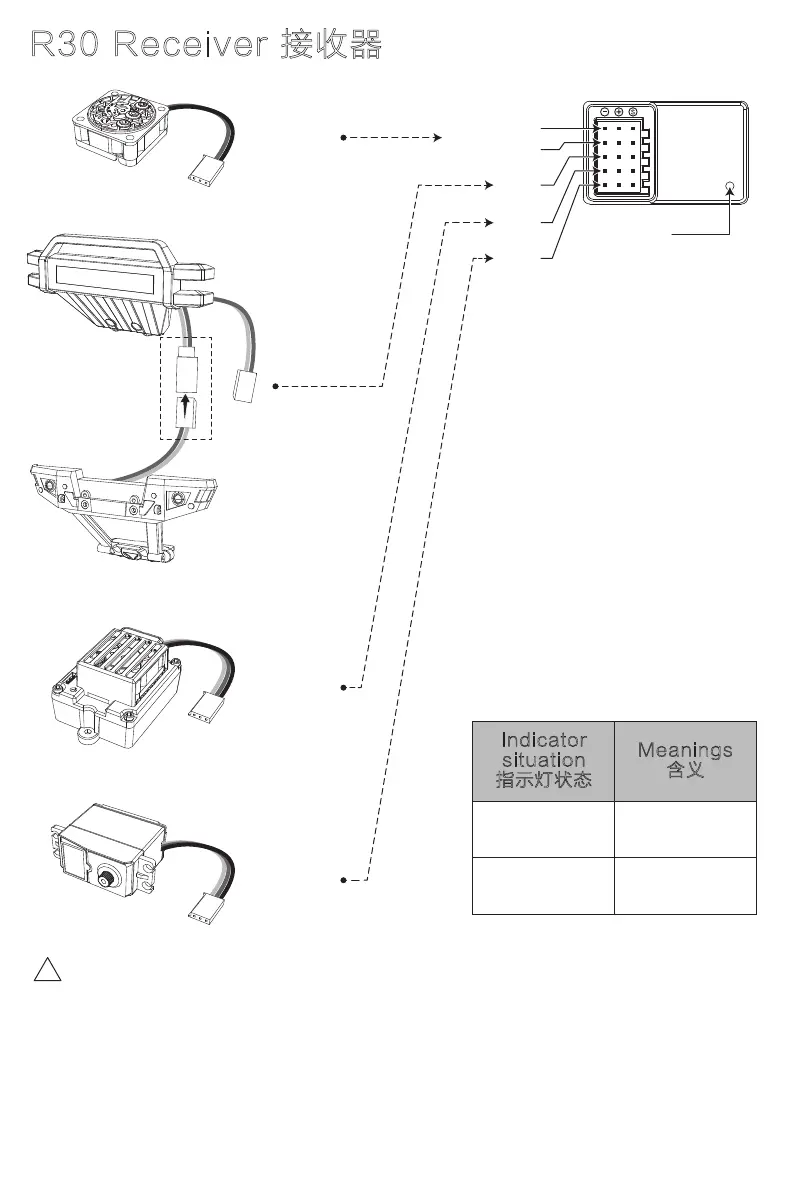

MJX HYPER GO - Page 7

R30 Receiver 接收器
Front bumper
前防撞架
VCC/FAN
VCC/FAN
CH3
CH2
CH1
VCC/FAN
VCC/FAN
CH3
CH2
CH1
R30
Antenna
(Please make
sure it in vertical
direction)
天线
(务必保持竖直状态)
Fan
风扇
(VCC/FAN)
!
Warning: Please make sure the connection is correct.
警告：请注意连接是否正确。
Stays on
常亮
Signaled
有信号
Indicator
situation
指示灯状态
Meanings
含义
Flashes
闪烁
No Signal
无信号
VCC/FAN: Power Interface
(VCC=5-6V)
VCC/FAN: 供电接口(VCC=5-6V)
Rear bumper
后防撞架
ESC
电调
Steering
servo
转向舵机
-6-
