10.Embed the counterweight into the bottom of the bottom shell, and then secure it using 4*M2.5X6 standoff
screws.
11.Join the top shell and baseplate together, and lock them from the bottom using screws (M2.5X6 standoff
screws) according to the hole positions.
12.Insert the customized foot pads into the baseplate to hide the screw holes.

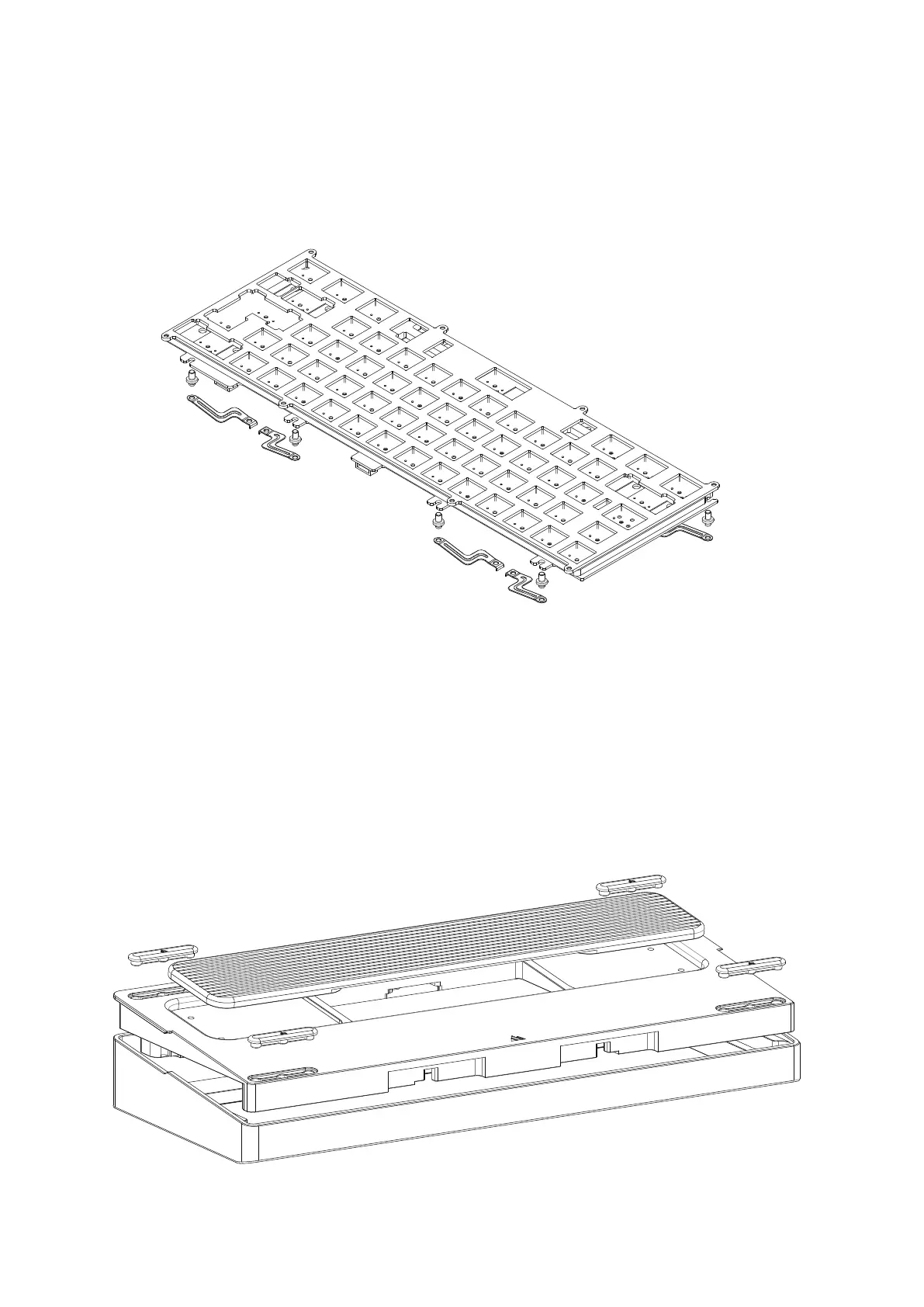

9.According to personal preference, layer the bottom foam and hot-swappable foam inside the baseplate to
fill the space (After installing the PCB and satellite axis, stack the PCB, lower pad, soundproofing foam, and
positioning plate together, then secure them into the axle body. Connect the ribbon cables, aligning the PCB
holes with the silicone grains on the plate spring so that the silicone grains fit into the PCB.）
9
Note: The installation method for this step is not fixed and can be adjusted based on personal preference.
