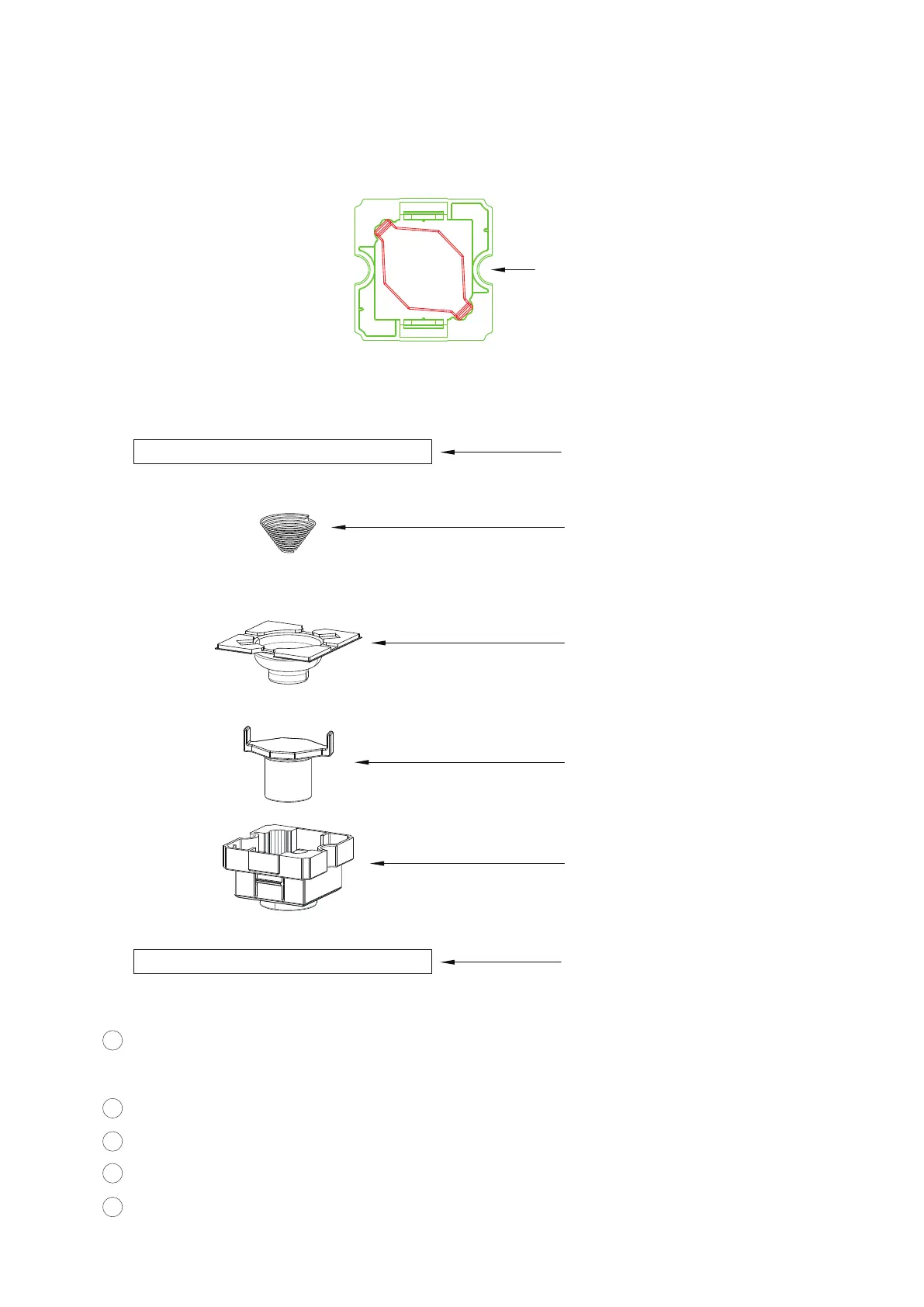

Conical Spring
Silicone Dome
Shaft Core
Shaft Body
PCB
Positioning Plate
Installation for Electrostatic Capacitive Assembly
Install the electrostatic capacitive shaft body, shaft core, and steel plate satellite axis onto the
electrostatic capacitive steel plate positioning plate (note that the shaft body for larger keys may
differ from regular shaft bodies, so pay attention to the direction relative to the wire).
Spread the silicone dome evenly on the bottom of the switch.
Place a conical spring into each silicone dome.
Cover the PCB onto the silicone domes and secure it with screws.
Finally, install the keycaps to complete the installation of the electrostatic capacitive assembly
(for larger keys, you can insert an additional spring to enhance the key's rebound feeling).
1
2
3
4
5
Illustration of the installation angle between the shaft core and the shaft body
Avoidance screw positions
