Section 4
1. Alarm is activated when door is opened, shuts off
when door is closed.

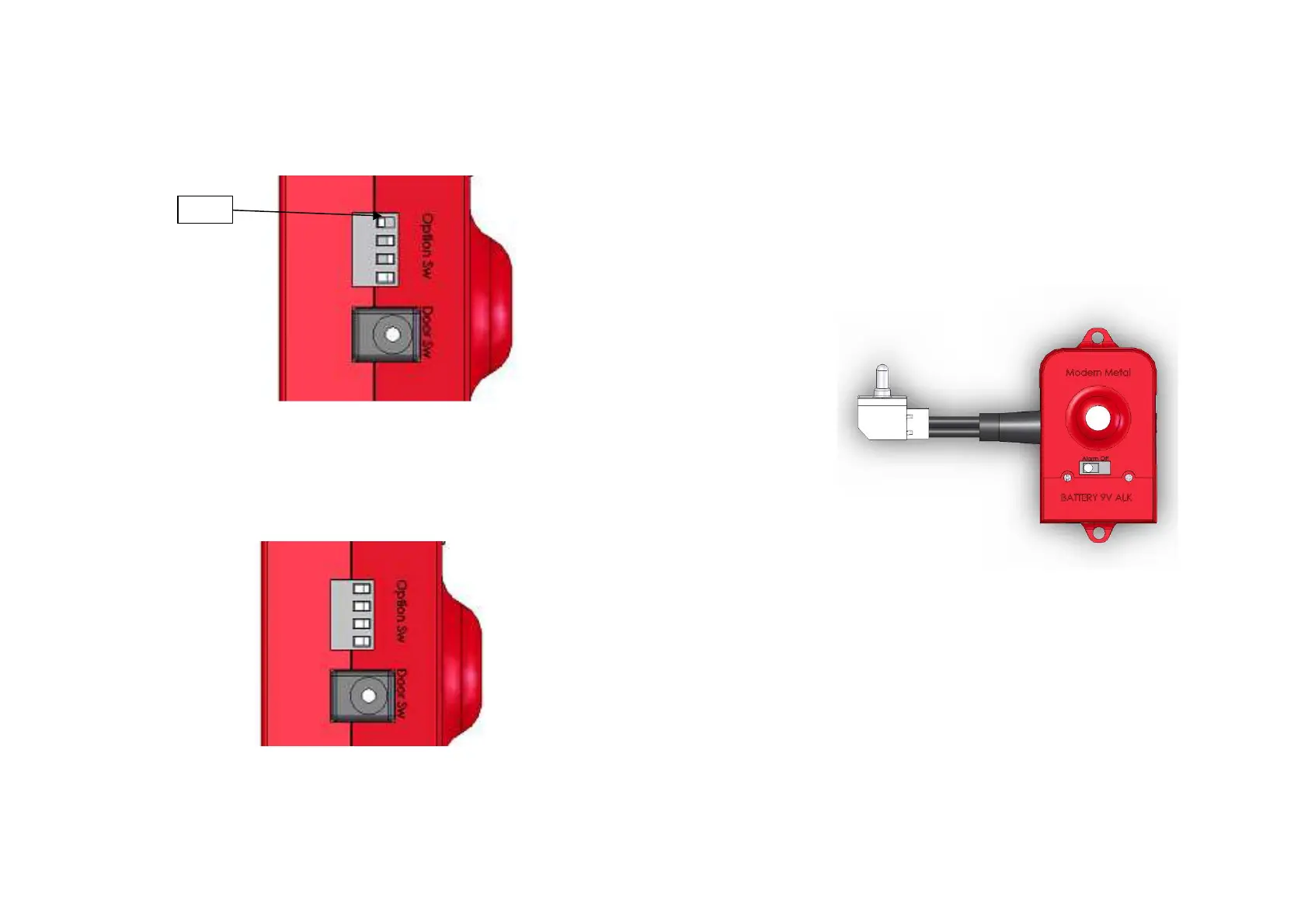

To obtain setting #1 “Dip” switch 1 will need to be
down and the rest up, see in Figure 4-1
Figure 4-1
2. Door is “open” unit is activated until reset/turned off
with the key switch
Setting #2 can be accomplished by putting all of the
“DIP” switches in the up position see in Figure 4-2
Figure 4-2
-7-
Section 2
o Mechanical door switch
The mechanical door switch is used to activate
the alarm when the door is opened, deactivate
the unit when the door is closed. Mechanical
door switch is attached to the cabinet and
connects to the left side of alarm. See Figure 2-1
Figure 2-1
Not shown to scale
-4-
