HARDWARE INSTALLATION

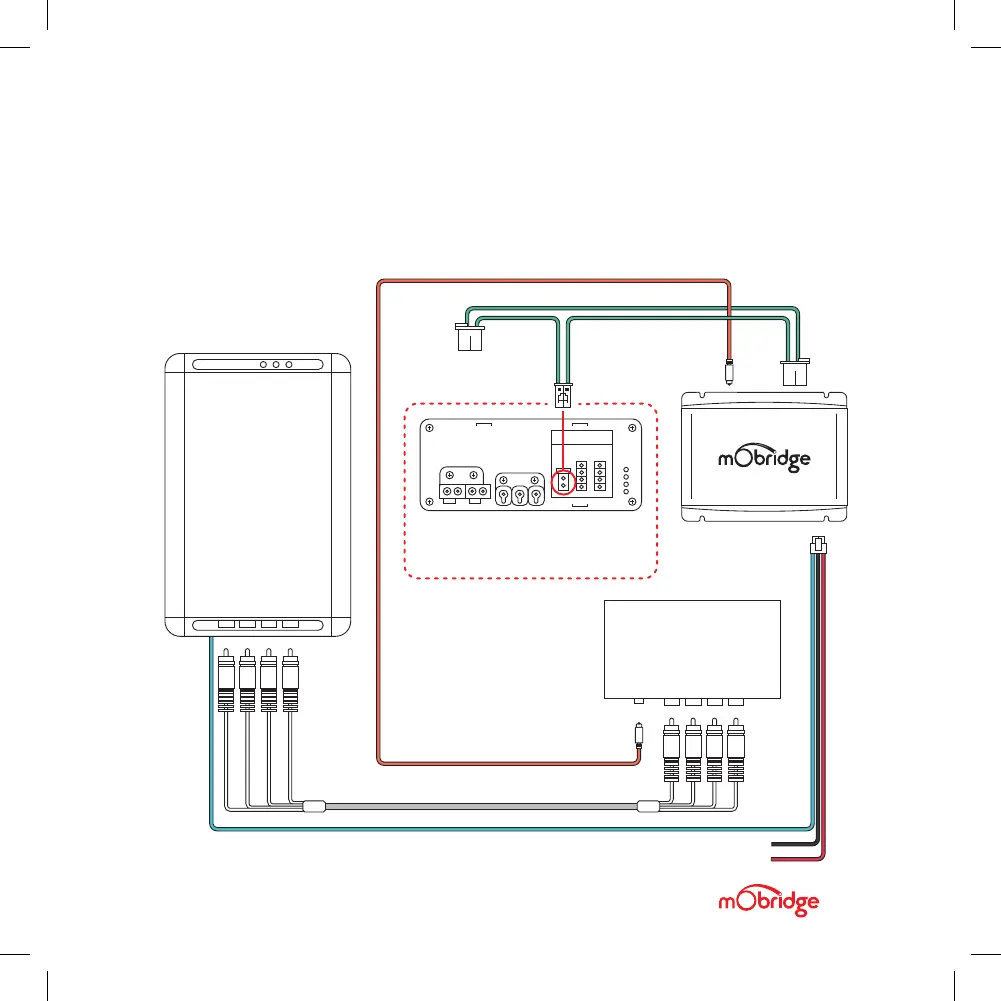

SYSTEM LAYOUT | DA-G2.ENTRY MOST150
12v (+)
Ground (
-)
Amplifier turn-on
From other MOST
Components (if applicable)
FOR DA-G2 INSTALLATIONS,
THE FACTORY AMPLIFIER MUST BE
DISCONNECTED (IF EQUIPPED)
Aftermarket
Amplifier
Fiber Optic
TOSlink
Analog RCA
From OEM MOST radio
or amplifier (removed)
EQ | Processor
DA-G2 MOST150 OPTICAL MERCEDES
//
GUIDE
PAGE 9
