Mocka Kitchen - Side Panel Attachments and Supports; Step 3: Attach Roller Catches and Shelf Supports; Step 4: Attach Shelf Supports to Panels

1
2

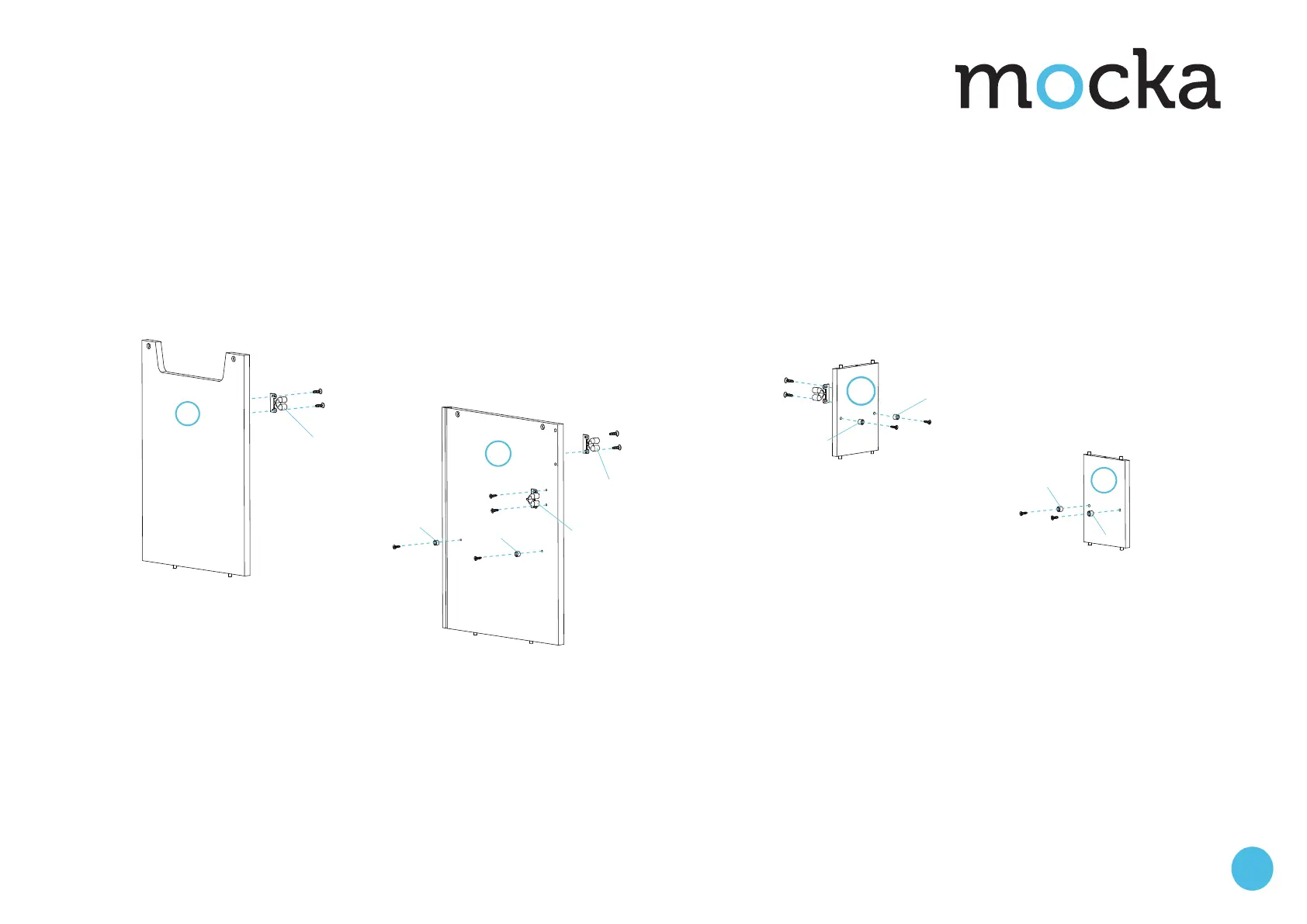

Insert 22x dowel (G) into panels [1], [5], [6], [11], [14], [15], [16] and
[22].
Attach 2x shelf support (K) to panel [7] with 2x screw (D).
Attach 2x clip (L) to panel [26]. Attach panel [26] to panel [8] with 2x
screw (A).
Tighten all screws with a screwdriver.
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
7
6
5
11
14
15
16
22
1
D
K
K
D
A
A
8
26
L
L
3
4
Attach 1x roller catch to panel [6] with 2x screw (D).
Attach 2x roller catch to panel [11] with 4x screw (D) and attach 2x
shelf support (K) with 2x screw (D).
Tighten all screws with a screwdriver.
Attach 1x roller catch to panel [20] with 2x screw (D) and attach 2x
shelf support (K) with 2x screw (D).
Attach 2x shelf support (K) to panel [22] with 2x screw (D).
Tighten all screws with a screwdriver.
D
K
D
K
D
D
D
D
D
K
6
11
20
22
K
D
D
D
D
D
K
K
I
D
D
I
I
Mocka Kitchen
3
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
Assembly Instructions
