MODA MINI COVE
®
INTERIOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
4 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 09/13/2019
9

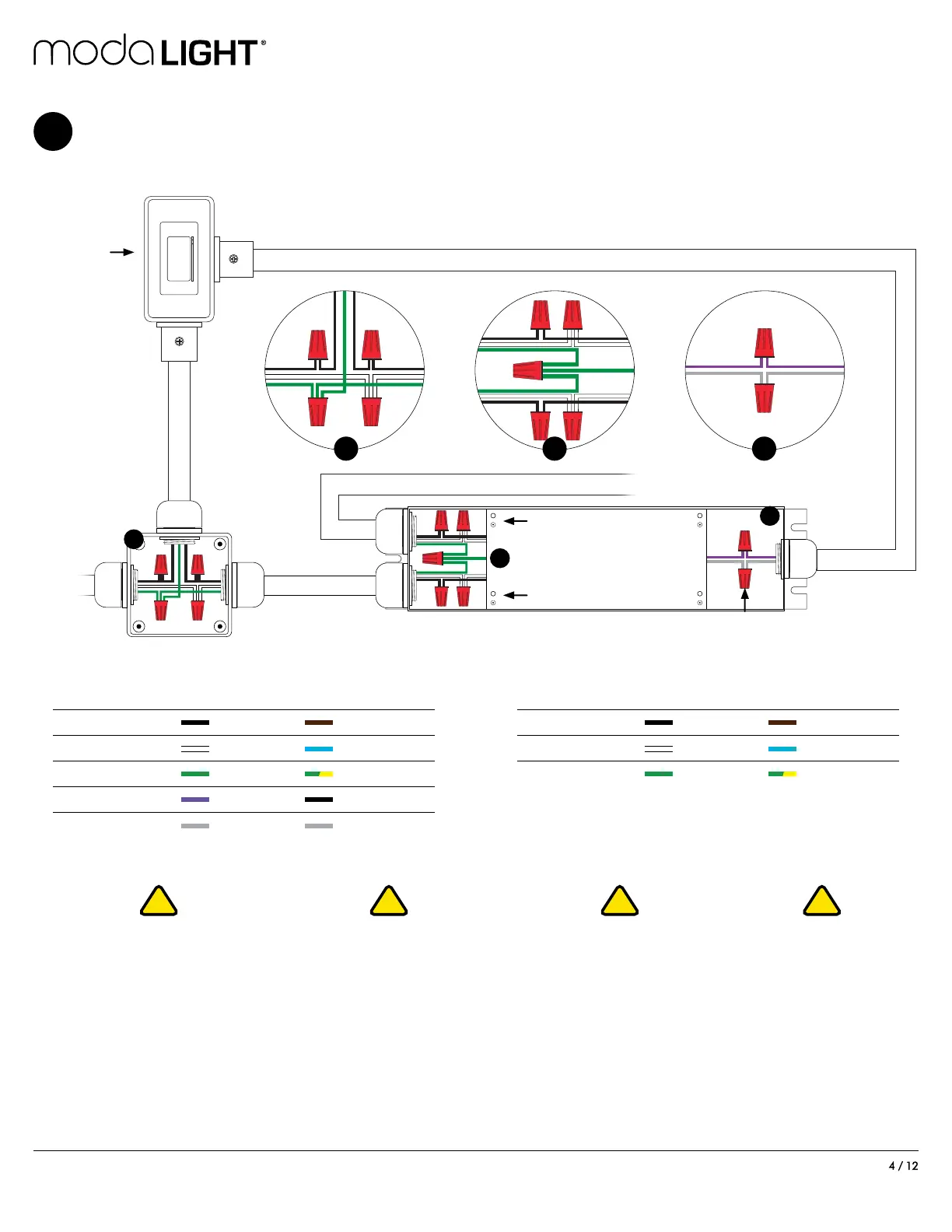

Wiring Moda Bridge (Optional)
Cablería Moda Bridge (Opcional)
Cables Moda Bridge (Optionnel)
0-10V
Dimmer
100-
277V AC
ELV Output
Input
0-10V Input
A
A B
B
C
C
Output
UL/cUL CE/CCC*
Live 100-277V Black Brown
Neutral White Blue
Ground Green Green/Yellow
*Not illustrated
Input
UL/cUL CE/CCC*
Live 100-277V Black Brown
Neutral White Blue
Ground Green Green/Yellow
0-10V / Data + Purple Black
0-10V / Data - Grey Grey
*Not illustrated
!
IF MODA BRIDGE IS MOUNTED OUTSIDE
USE SUITABLE WET LOCATION WIRE NUTS
Si el MODA Bridge es montado en el exterior, utilize
sujetadores de cables a prueba de liquidos.
Si MODA BRIDGE est monté à l’extérieur, utiliser un
endroit humide approprié
!
AVOID DIRECT SUNLIGHT
Evite la luz solar directa
Évitez la lumière directe du soleil
!
NOT SUITABLE FOR AN IP67 AND IP68
INSTALLATION
No es adecuado para instalación de IP67 y de IP68
Ne convient pas pour l’installation IP67 et IP68
!
MODA BRIDGE NEEDS TO BE MOUNTED AT
LEAST 3 FEET HIGH FROM THE GROUND
Moda Bridge debe de estar montado al menos a 3ft
del suelo
Moda Bridge doit être monté à au moins 3ft du sol
