MODA MINI COVE
®
INTERIOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
5 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 09/13/2019
CLICK!
To release,
press down
on thumb
latch and
pull.
Connect
Terminator
CLICK!
10
11

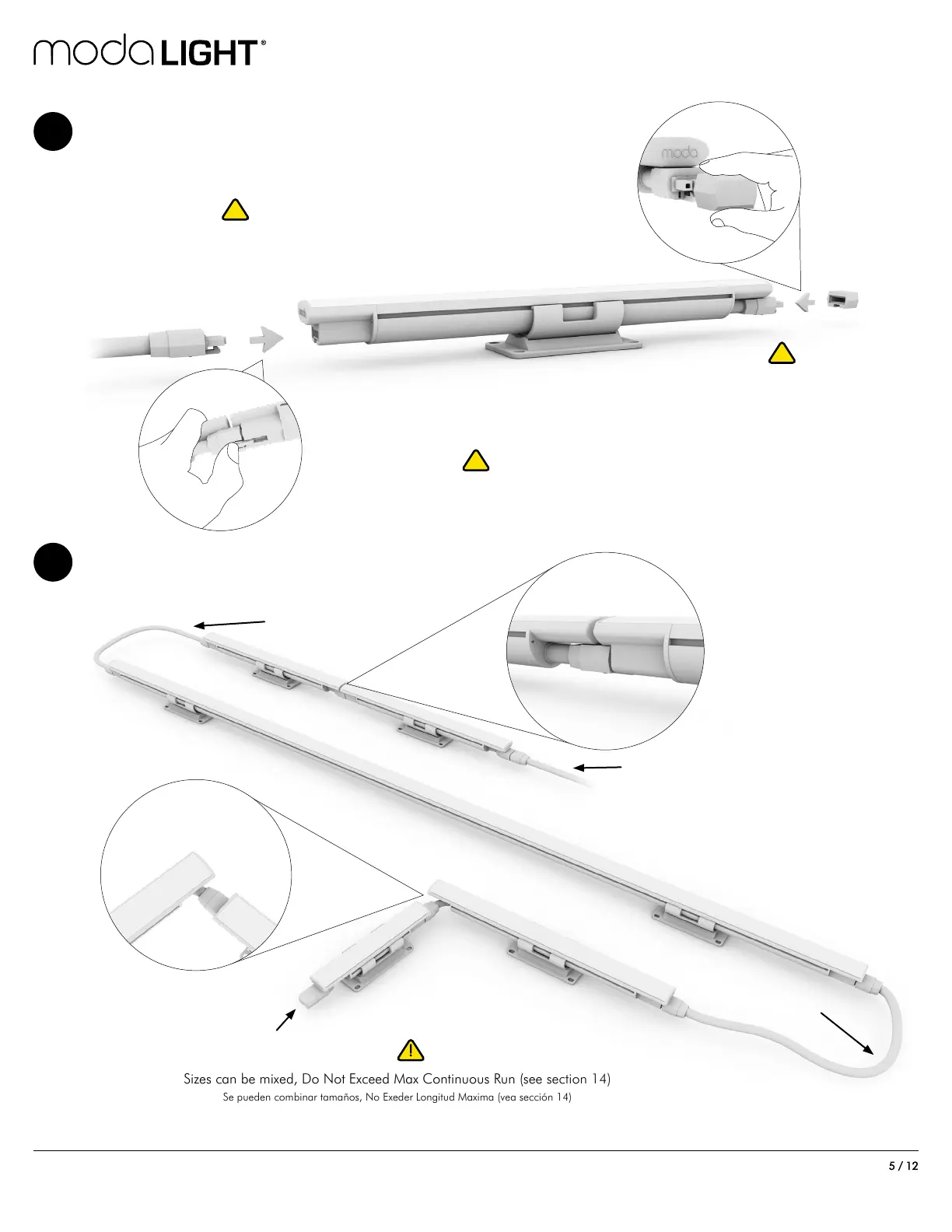

Connect leader cable and connect terminator
Connectar el cable leader y conectar Terminador
Branchez le câble leader et connectez Terminateur
Terminator MUST be placed on final fixture!
Terminator DEBE ser colocado en el accesorio final!
Terminator DOIT être placé sur l’appareil final!
Do NOT mix SO with HO fixtures
NO combine accesorios SO con HO
Ne pas mélanger SO avec les luminaires HO
!
!
Ensure a positive click to avoid arcing
Asegúrese un clic positivo para evitar arco eléctrico
Assurez un clic positif pour éviter de cambrer
!
Connection types
Tipos de connexiones
Types de connexion
Sizes can be mixed, Do Not Exceed Max Continuous Run (see section 14)
Se pueden combinar tamaños, No Exeder Longitud Maxima (vea sección 14)
Vous pouvez combiner tailles, Dépasser Aucune Longueur Maximale (voir la section 14)
!
Maximum bend radius of
fixture to fixture connection is
90°
Jumper Cable
Fixture to Fixture
Terminator
Leader Cable
Jumper Cable
