Modern Forms Aviator Flush - Page 17

FH-W1811
Aviator Flush Instructions 17
Maximum of 2 fans can operate on a circuit through the wall transmitter. Maximum of 12 fans can operate
on a circuit through an on/o switch or breaker when utilizing the app for the fan control (without the wall
control in the circuit).
6A

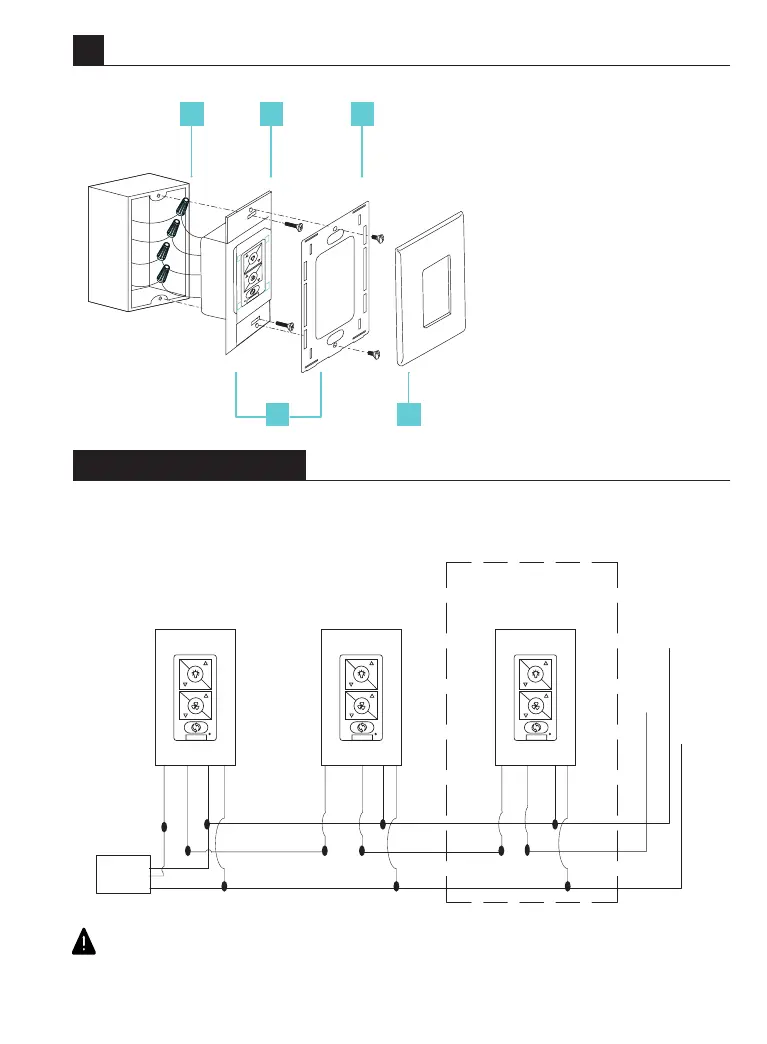

Multi-location wiring
1 2 3
54
1. Wall Outlet
2. Wall Control
3. Wall Mounting
4. Mounting
5. Wallplate
Wall Controller 1 Wall Controller 2 Wall Controller 3
if Applicable
Green
Green to Fan
Black to Fan
White to Fan
Green White Black Red
Black Black White Red Red White Green Green
HOT IN
Individually pair each of the wall controls with the fan
receiver using the pairing instruction. See page 27
