16
MAINTENANCE

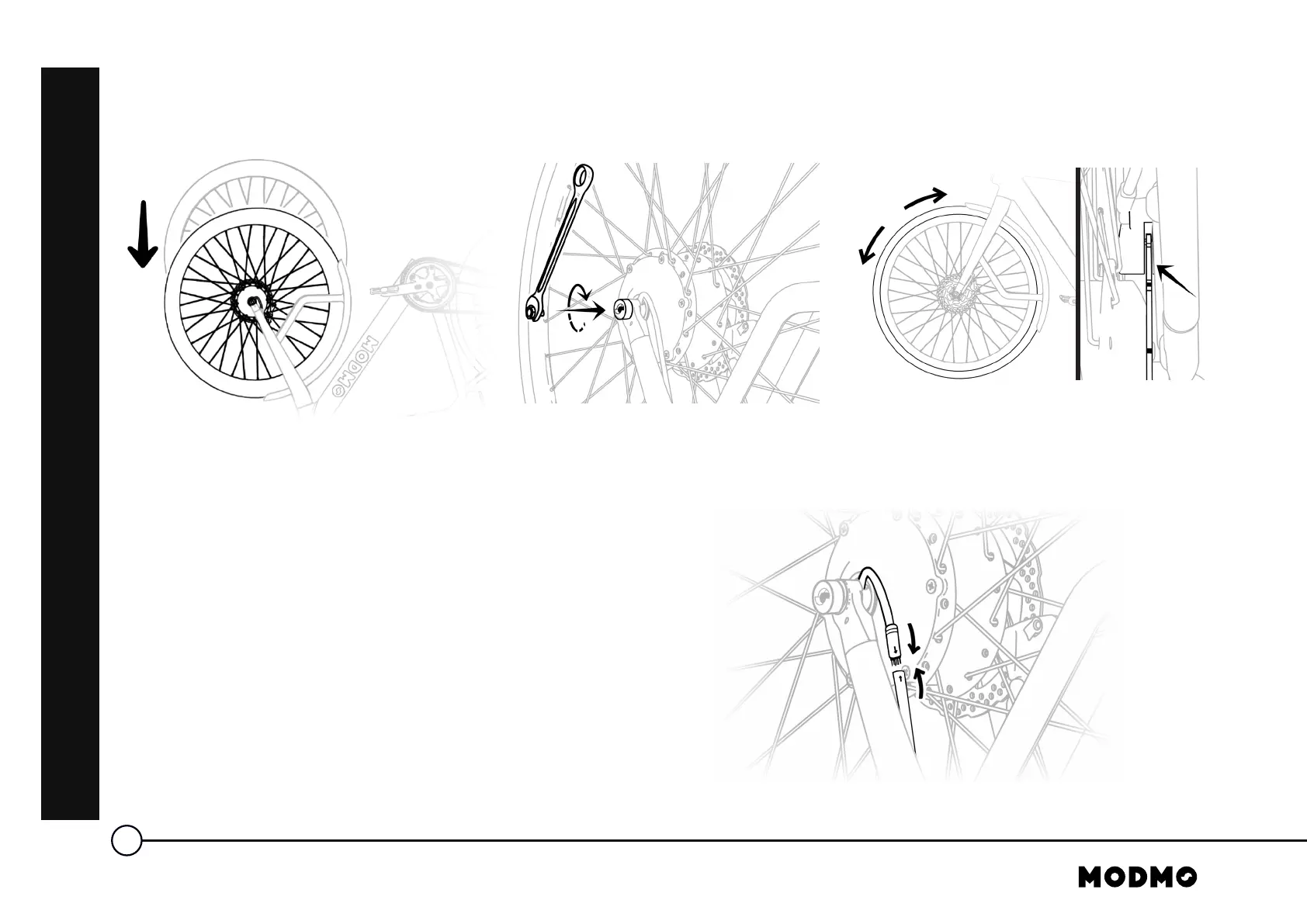

Step 1. Carefully mount the wheel to the
dropout and align the brake rotor inside of
the front brake. If necessary, loosen the
MOD Axle Nut to make this step easier.
Step 2. Tighten the MOD Axle Nut using the
MOD Axle Nut tool and 16mm spanner
provided in the tool box to 35-40Nm.
Step 3. Rotate the front wheel and make
sure that the disc brake is not visibly
touching the brake pads and that friction
noise is not created.
Step 4. In the case of friction between the disc and the pads, it
is possible to align the brake to the rotor with the following
steps:
• Loosen the two bolts holding the brake to the frame without
removing them completely.
• Apply and maintain pressure to the brake lever with one
hand or by using a rubber band.
• Tighten the two brake bolts again while keeping the brake
lever pressed.
• Release the pressure from the brake lever.
• Test that the friction is between the rotor and pads is gone
by rotating the wheel.
FITTING
Step 5. Plug the motor cable located on the side of the front
electric motor.
