2. Install frame section 1. Secure frame section 1 to the base with the screws provided. Next, secure frame
section to king stud of rough opening via the attached mounting brackets on the side of the frame.
D
C
DETAIL D
DETAIL C

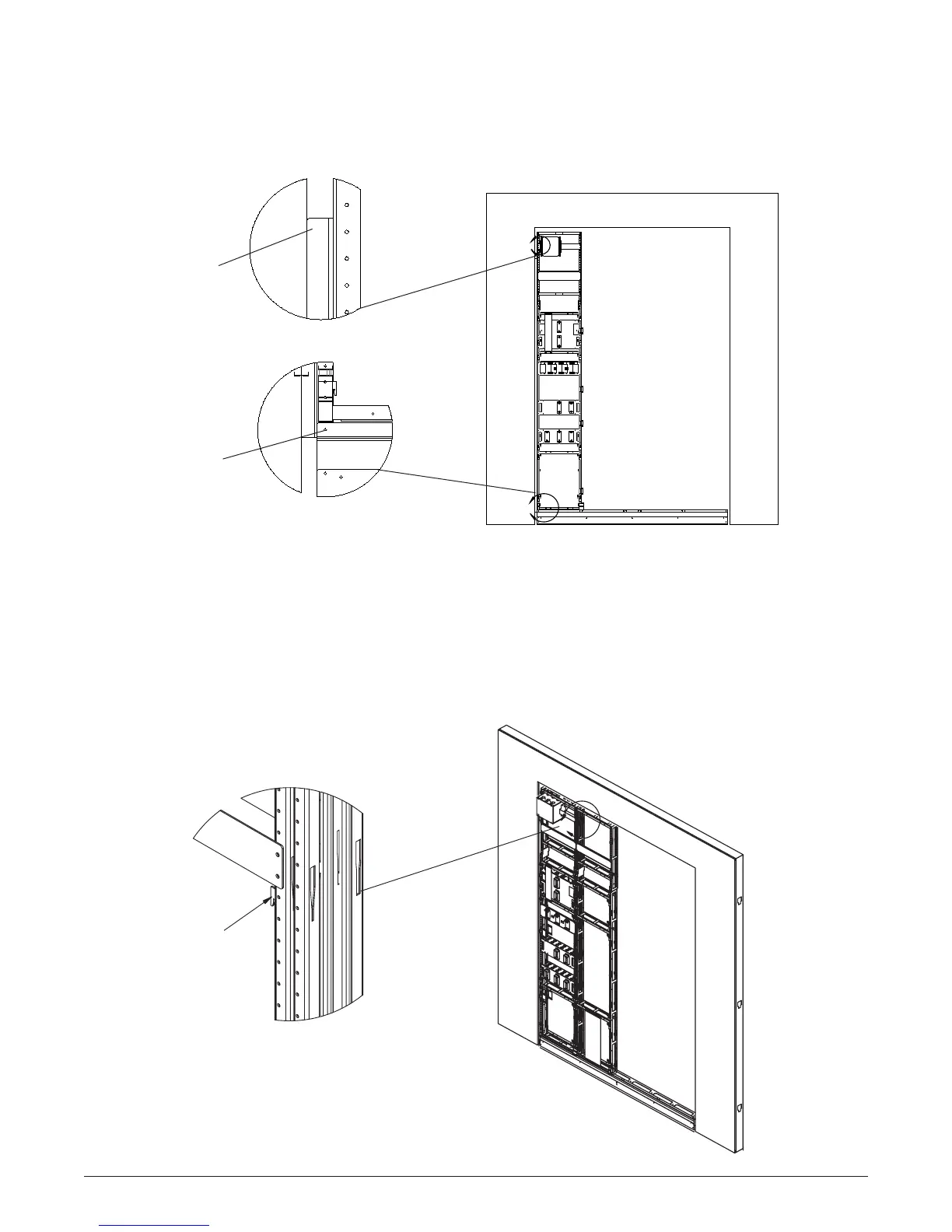

Figure 3.
3. Install frame section 2. Section 2 attaches to section 1 via sets of slots and tabs on the framing members.
After section 2 is attached to section 1, secure section 2 to the base using the screws provided.
E
Figure 4.
Interlocking slots
and tabs
Secure frame to
base using pre-
drilled holes
Mounting bracket
attaches to rough
opening
